To acknowledge the pop-up alert:
Touch the Go to Terrain key (accesses the TAWS Page)
OR
Touch the Close key to remove the pop-up alert
If the pilot takes no action, the pop-up will be removed when the alert is no
longer active.

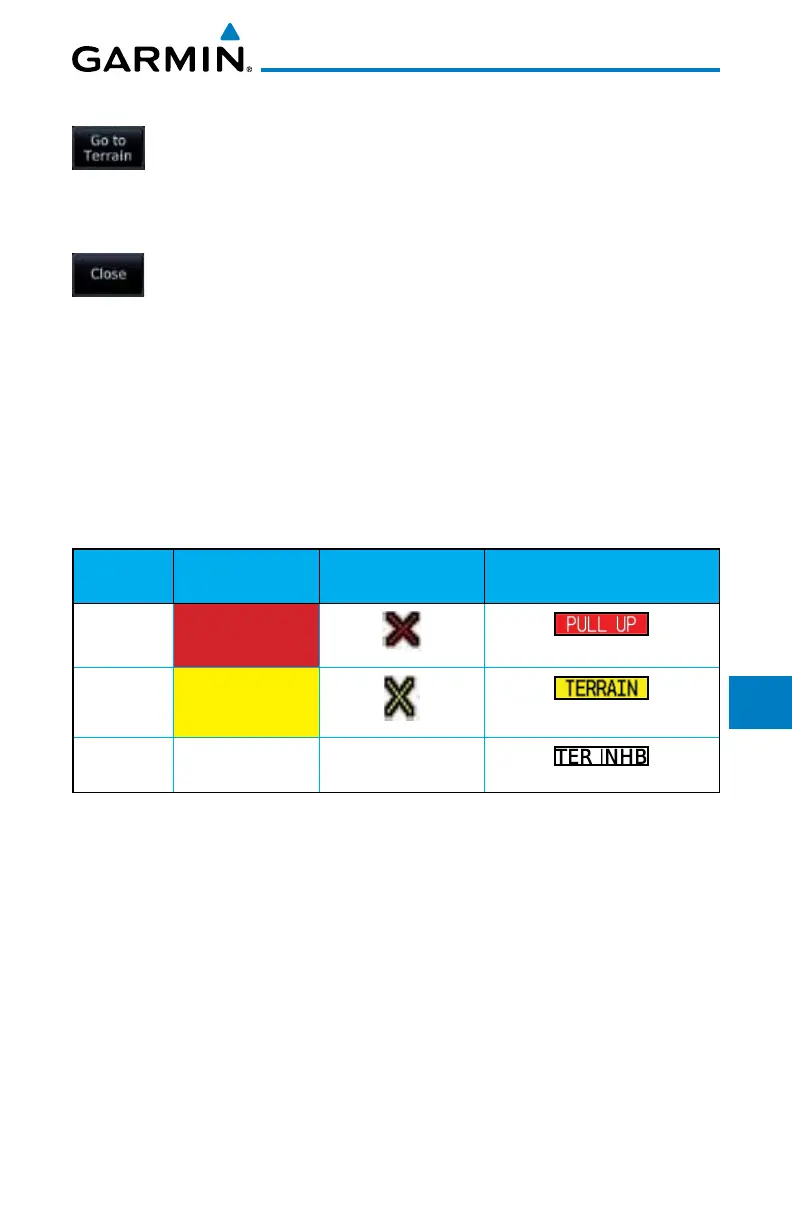

11.3.8.1 TAWS-B Alerting Colors and Symbology
Color and symbols are also associated with TAWS alerts. The alert
annunciations show in the bottom left corner of the display. The three TAWS
alert levels and their associated text coloring as well as any associated symbology
are shown in the following table.
Alert Level Annunciator Text Potential Impact
Point Symbol
Example Visual Annunciation
Warning White text on red
background
Caution Black text on yellow
background
Informational Black text on white
background
Not Applicable
Table 11-2 TAWS Alert Colors and Symbology
