12.1.6 Echo Tops
Echo Tops data shows the location, elevation, and direction of the highest
radar echo. The highest radar echo does not indicate the top of a storm or
clouds; rather it indicates the highest altitude at which precipitation is detected.
This information is determined from NEXRAD data.
NOTE: Due to similarities in color schemes, the display of Echo Tops cannot
be shown with Cloud Tops and NEXRAD.
1. While viewing the Data Link Weather menu, touch the Echo
Tops key.
Present Position
Echo Tops
Product Age

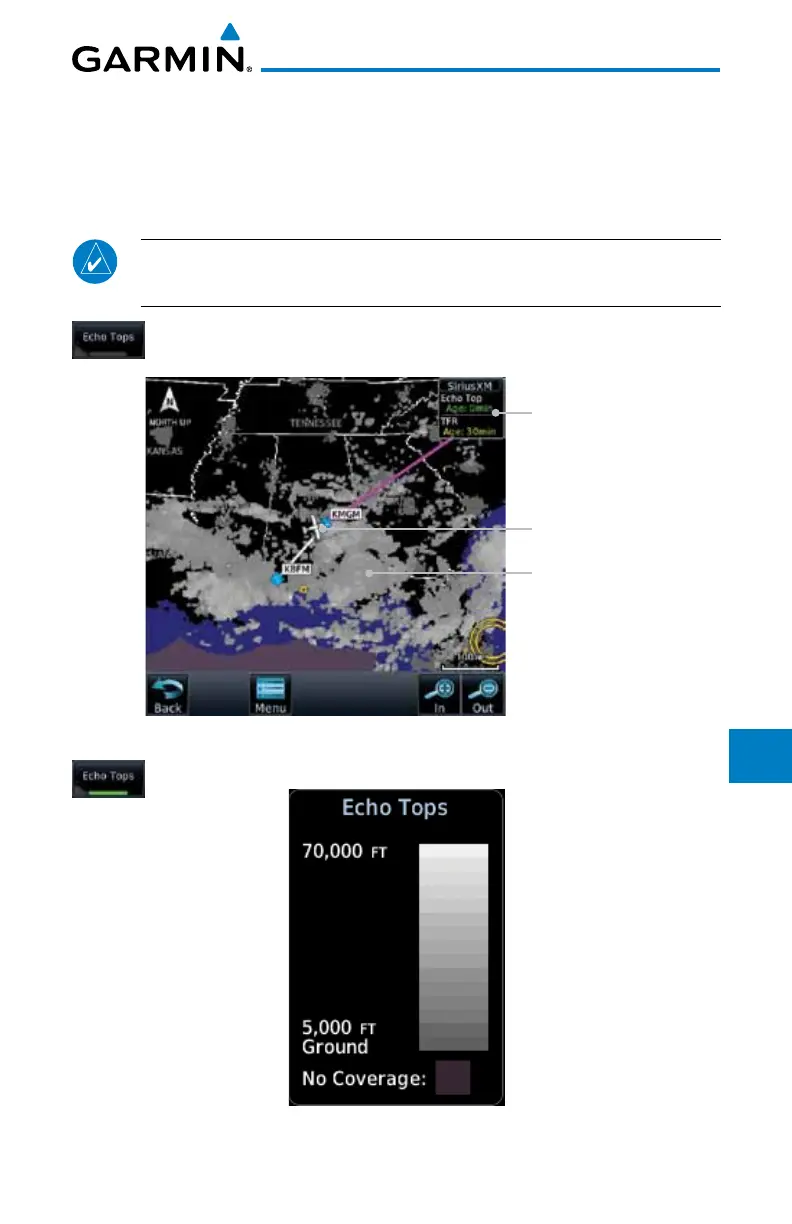

Figure 12-12 Echo Tops
2. Touch the Echo Tops key again to turn it off.
Figure 12-13 Echo Tops Legend
