10 TRAFFIC
The Traffic function displays available traffic information depending on
your installed equipment to assist in situational awareness. The features and
operation depend on the capabilities and options of each type of traffic system.
NOTE: The reference point for the ownship is the nose of the ownship
aircraft symbol (either miniature aircraft or triangle). The reference point
for all traffic icons is the center of the depicted traffic.
1. From the Home page, touch the Traffic key.
2. Use the active areas on the display and the Menu options to
set up the Traffic display.
10.1 Traffic Pop-Up
When the GTN 7XX is displaying any page (other than the Traffic page) and
a traffic alert becomes active, the Traffic Warning pop-up will be displayed.
NOTE: The traffic pop-up will not appear when your aircraft is on the
ground.
1. The traffic pop-up will appear on pages other than the Traffic
page when a traffic alert occurs.
Traffic Alert
Annunciation
Touch To Go To
Traffic Page
Touch To Close
Pop-Up
Traffic Alert
Annunciation
Ownship Position
Traffic Location

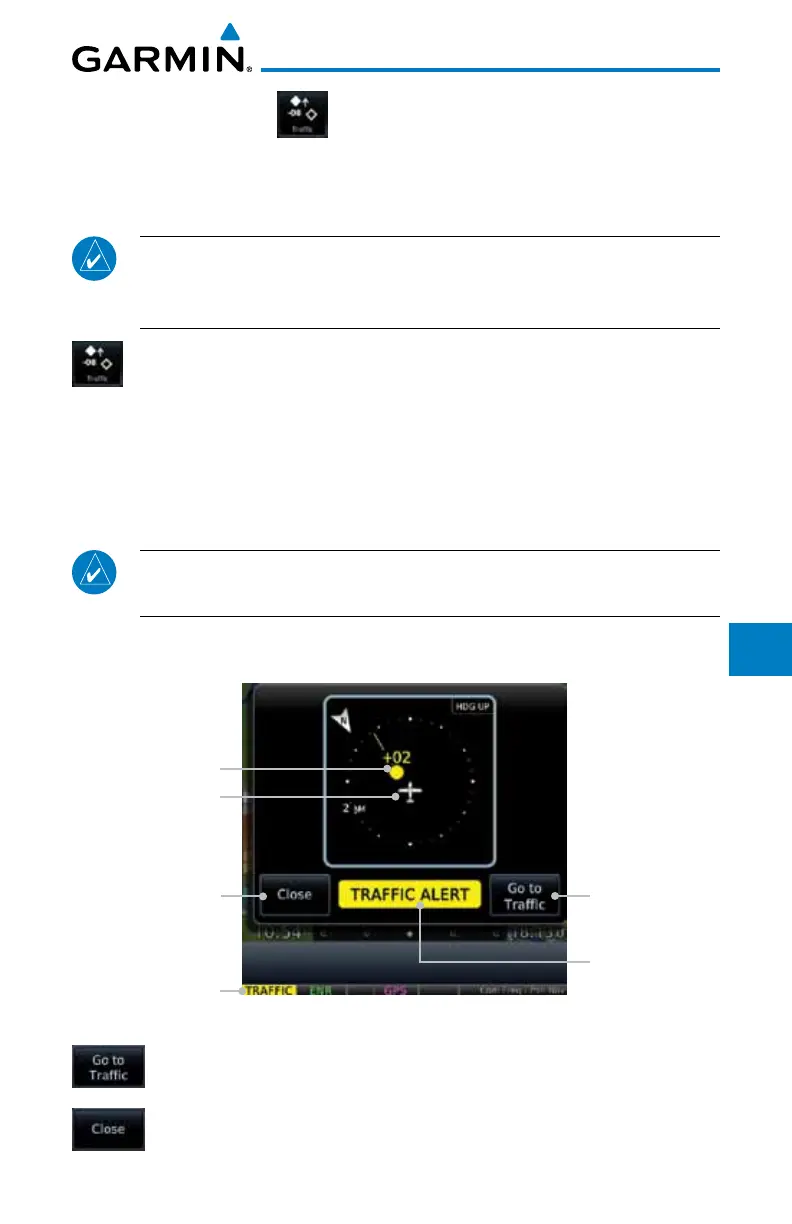

Figure 10-1 Traffic Pop-Up On the Map Page
2. Touch the Go to Traffic key to view the Traffic page.
OR
3. Touch the Close key to close the pop-up. The pop-up will
return if the traffic alert persists.
