Power Doppler
Pressing activates/deactivates the Power
Doppler mode. Functions depend on
current probe. Rotating allows to set the
Power Doppler gain and HD-Flow gain
within the probe-defined range. When
using 3D mode, turning the button will
rotate the volume on the Z-axis.
For more information see 'Power Doppler
Mode (PD Mode)'
on page 8-17.
Color Mode (on/off)
Pressing activates/deactivates the Color
mode. Functions depend on current
probe. Rotating allows setting of the CF
mode gain within the probe-defined
range. See ‘Color Flow Mode (CFM)’ on
page 8‐13 for more information.
2D Mode (all additional modes will be
switched off)
Chapter 6
Pressing this control activates 2D Mode.
Rotating allows you to set the 2D image
gain within the probe-defined range
For more information see '2D Gain' on
page 6-4.

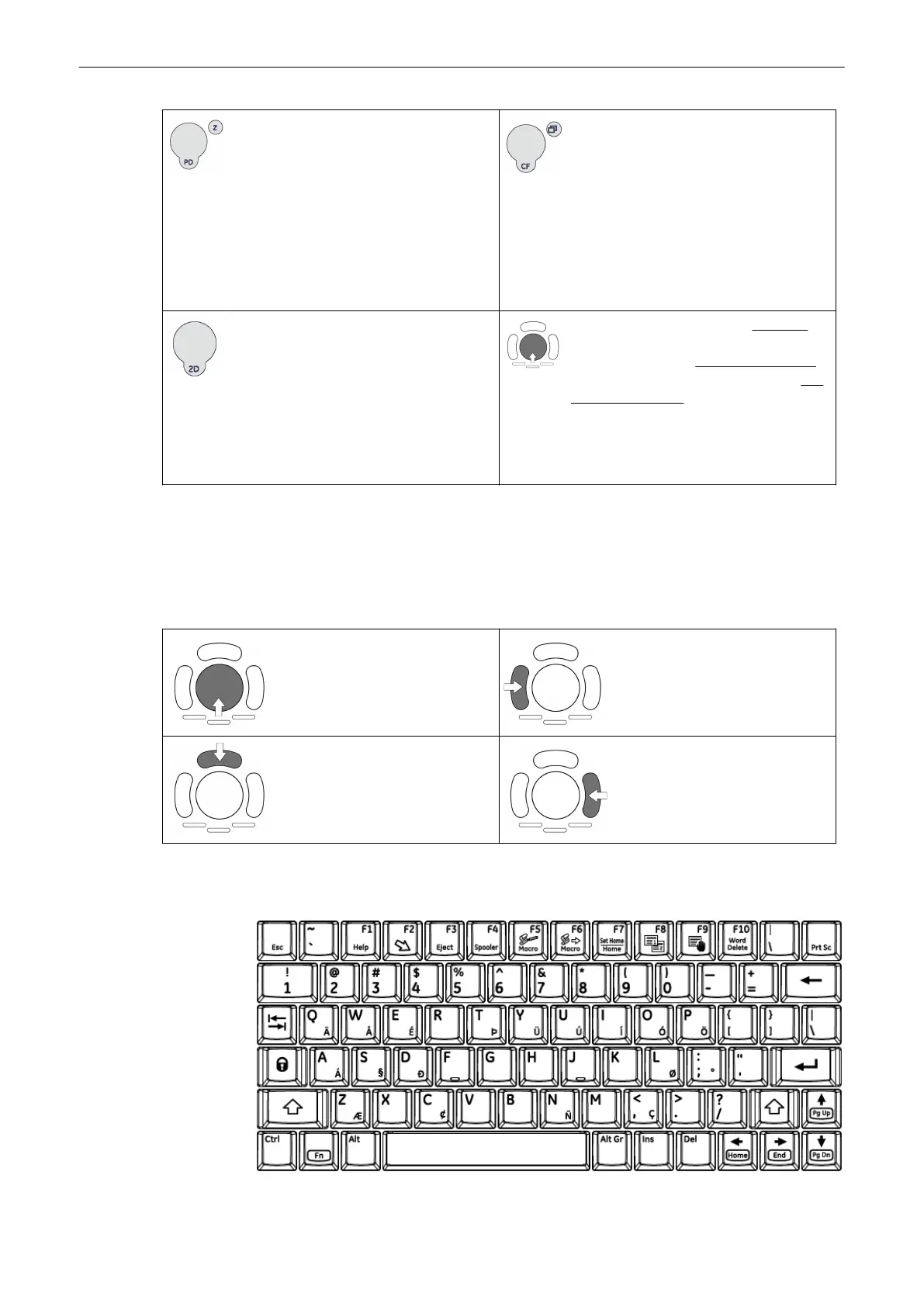

Trackball and Trackball keys trackball:
positions cursors, Cine-loop, position and
size of the box, etc. upper trackball key:
changes the actual trackball function left/
right trackball key: sets, fixates cursors
and activates pages/buttons, etc.
3.6.1 Function of the Trackball at Diverse Dialog Pages
In general operations at diverse dialog pages and windows on the system desktop (e.g.,
Patient Data Entry, Usage of EUM, System Setup, Measurement Setup, etc.) are executed by
trackball and the trackball keys (mouse emulation).
Trackball (mouse position):
positions the cursor (arrow) on the
desktop
Left trackball key (left mouse
button)
sets, fixates markers and activates
pages/buttons etc. marked by the
cursor
Upper trackball key (right mouse
button)
no function in system desktop
Right trackball key (left mouse
button)
sets, fixates markers and activates
pages/buttons etc. marked by the
cursor
3.6.2 Keyboard keys
Description of the System
3-14
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4
