fields of application. To store a user setting under an application, review: 'General'
on page 13-
15
[Probe] key (hard key): This key activates and deactivates the “probe select” menu. Behavior
of probe select function, when connecting/disconnecting a probe, review:
'Transducer
Connection'
on page 4-5

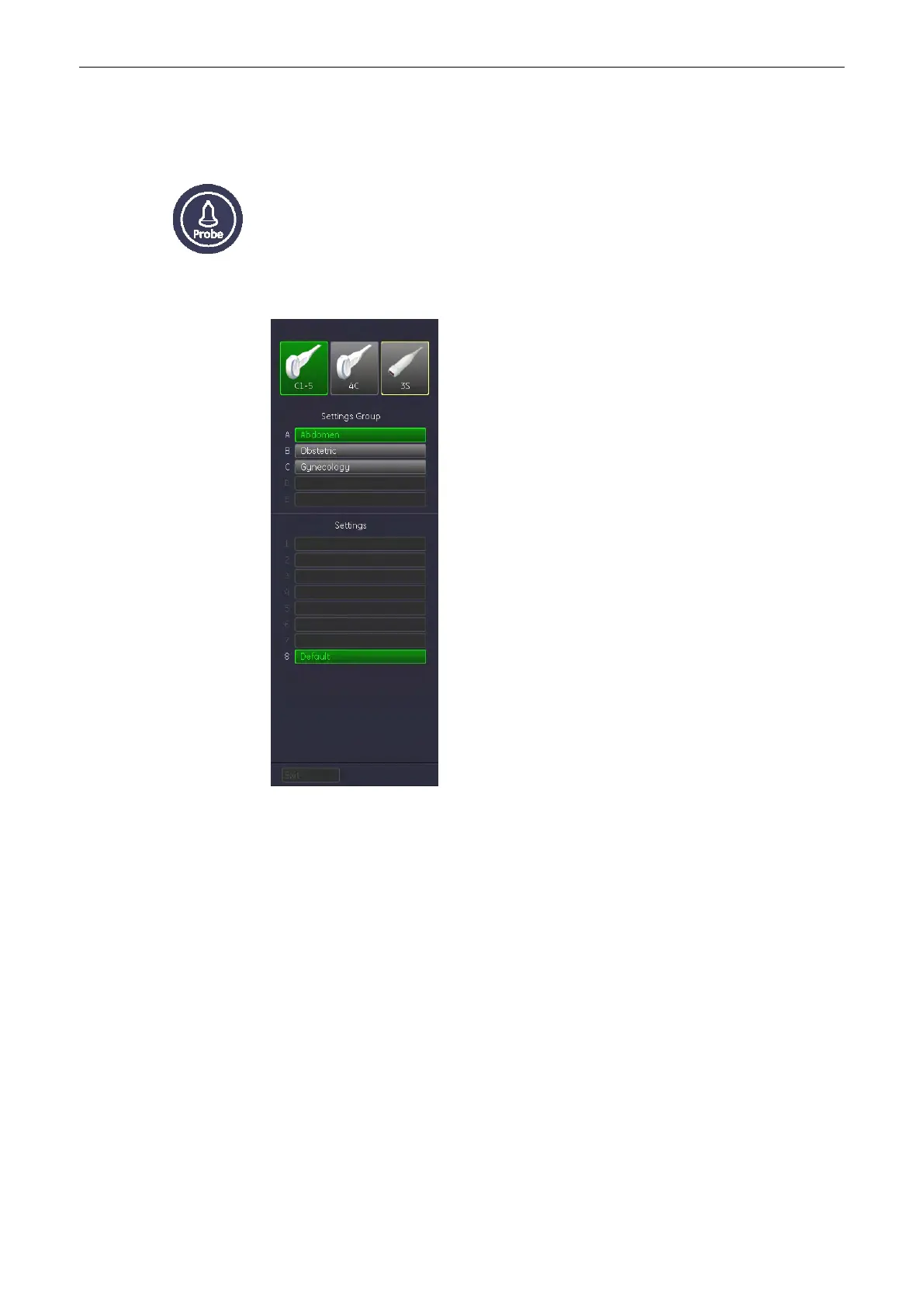

Probe selection menu on the menu area:
Probe window: Shows all connected probes, the active one is highlighted (if one is active)
Application window: Shows all applications for the active probe. The last active application is
highlighted.
Settings (program) window: Shows all settings for the active application. The last active setting
is highlighted.
Selection of a probe:
Select a probe and application either by using the trackball or the denoted shortcut key on the
keyboard or the wheel. Each field shows the name and a picture of the corresponding probe.
The selected probe is indicated when its key is highlighted. At the same time the “Settings
Group” fields appear. Upon selection, the programmed “Settings” come into view (8 setting
keys for selection of the desired setting).
Operating the System
4-8
Voluson® S6/S8 Basic User Manual
5433669-100 Revision 4
