JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
1-4
Section 1 VEGA™ Series BankNote Validator General Information
Primary Features
The VEGA contains the following primary 
features:
1. The ability to replace an identical VEGA Unit
installation (e.g., a Unit having an SH Specifica-
tion or a SU/SD Specification) into
a wide range
of target Host Machines by changing the Face-
plate and the Cash Box S
top location.
2. A single denomination can flow in reverse by
add
ing the optional VEGA-RC Unit.
Component Names

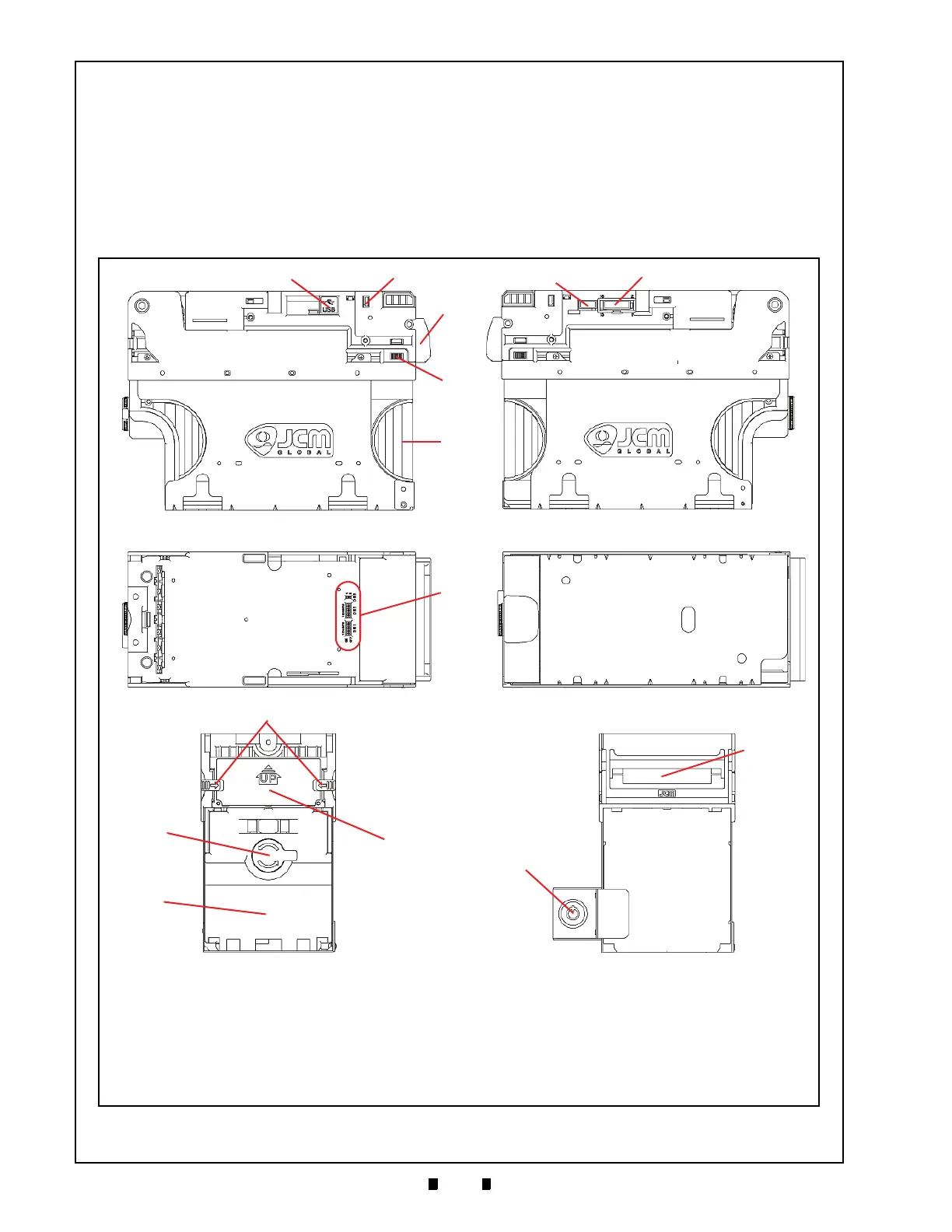

Figure 1-4 illustrates the VEGA Component Names and Locations.
Figure 1-4 VEGA Component Names
e
a) Upper Section
b) Bezel
c) Upper Section Open/Close Buttons
d) Cash Box
e) USB Connector Receptacle Cover
f) Interface Connector Receptacle
g) Recycler (RC) Connector Receptacle
h) DIP Switches
i) Course Path Reversing Guide
j) Course Path Reversing Guide Cover
Release Buttons
k) Cash Box Door
l) Thumb Lock Knob
m) Banknote Insertion Slot
n) Frame Lock (Option)
a
b
c
d
g
f
h
j
l
k
i
m
n
