JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
1-13
General Information VEGA™ Series BankNote Validator Section 1
VEGA B EZEL O UTSIDE D IMENSIONS (T YPE N)

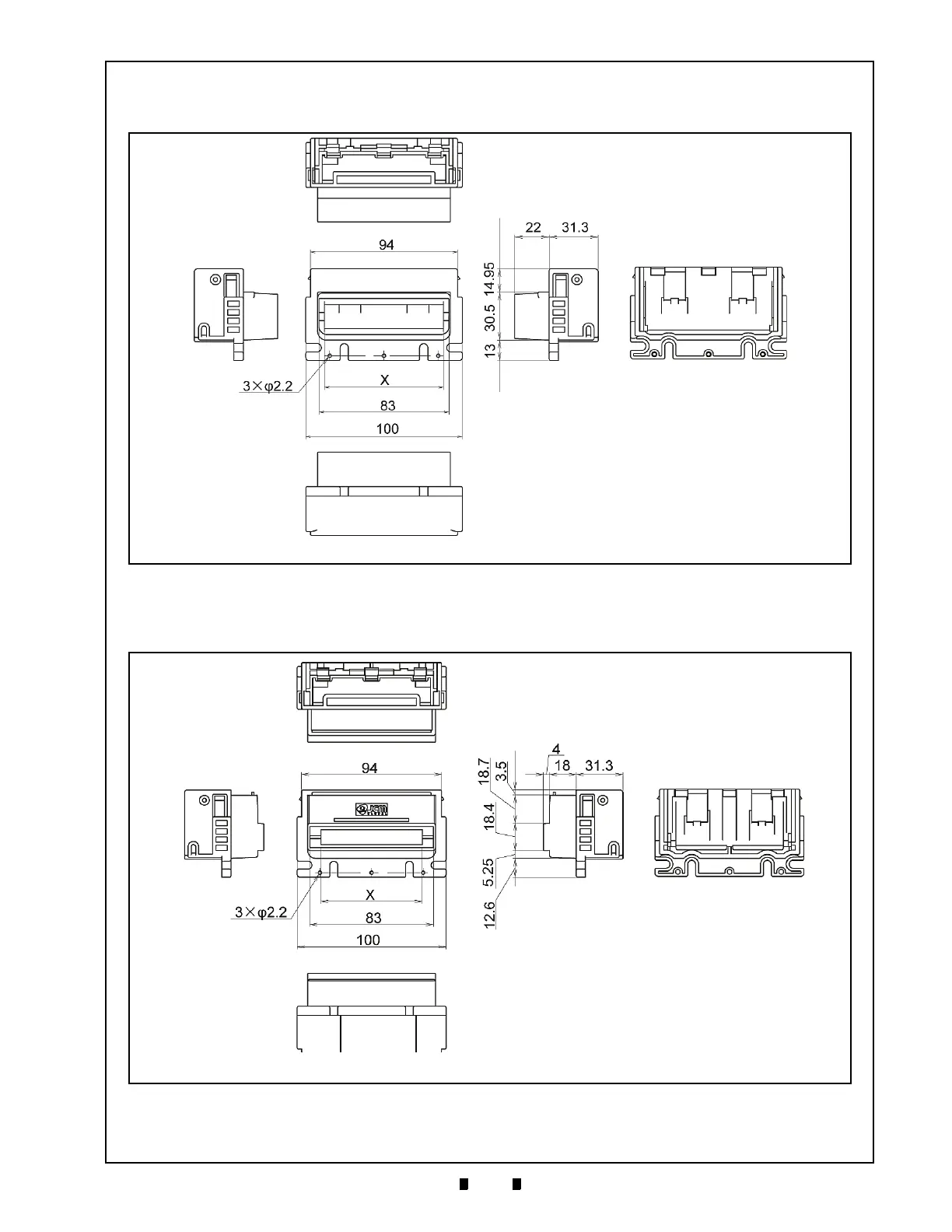

Figure 1-16 illustrates the VEGA Bezel Type N outside dimensions.
VEGA B EZEL O UTSIDE D IMENSIONS (T YPE D)
Figure 1-17 illustrates the VEGA Bezel Type D outside dimensions.
NOTE: All Dimension are in Millimeters
X = 68mm (EUR) or
76mm (GBR/SCO/NIRL)
Figure 1-16 VEGA Bezel Outside Dimensions (Type N)
NOTE: All Dimension are in Millimeters
X = 67mm (USA)
71mm (RUS)
68mm (EUR)
Figure 1-17 VEGA Bezel Outside Dimensions (Type D)
