Section 1 VEGA™ Series BankNote Validator General Information
VEGA C ASH B OX O UTSIDE D IMENSIONS (L ARGE C ASH B OX )

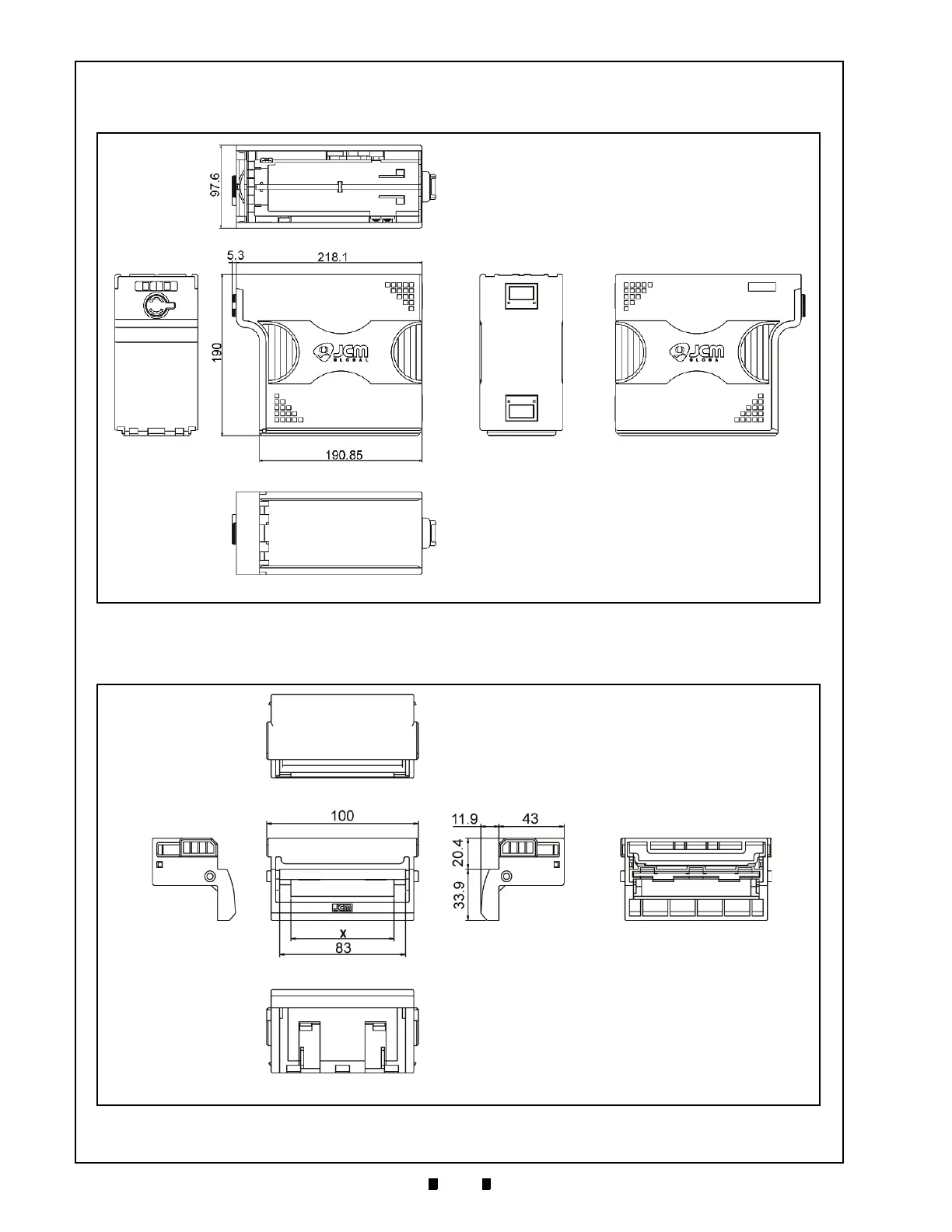

Figure 1-14 illustrates the VEGA Large Cash Box’s outside dimensions.
VEGA B EZEL O UTSIDE D IMENSIONS (T YPE SH)
Figure 1-15 illustrates the VEGA Bezel type SH outside dimensions.
NOTE: All Dimension are in Millimeters
Figure 1-14 VEGA Cash Box Outside Dimensions (Large Cash Box)
NOTE: All Dimension are in Millimeters
X = 68mm (EUR)
76mm (GBR/SCO/NIRL)
71mm (RUS)
77mm (JPN)
67mm (USA)
Figure 1-15 VEGA Bezel Outside Dimensions (Type SH)
