JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
6-13
Calibration and Testing VEGA™ Series BankNote Validator Section 6
Reading the ccTalk Address
Perform following steps when reading ccTalk
address:
1. Mouse-click and hold-down on the “ VEGA_
Adjustment
” Tool Bar “ Menu ” selection, then
2. Slide-down select “
EEPROM ccTalk address
Read (D)
” from the Pull-Down Menu selections
(Figure 6-71).
3. The VEGA Unit sends the ccTalk Address to the
PC
, and then the “
read complete ” Dialog Screen
shown in Figure 6-72 will appear.
Writing a Stand-by LED Pattern Color
Perform following steps when writing the Front
Panel LED Stand-by Pattern Color indication.
1. Mouse-click and hold-down on the “ VEGA_
Adjustment
” Tool Bar “ Menu ” selection, then
2. Slide-down select “
EEPROM led idle pattern
Write
” from the Pull-Down Menu selections
(See Figure 6-73)
3. When the “
LED IDLE PA… ” Dialog Screen
appears (See Figure 6-74), Mouse-click and
hold-down on its Pull-down Menu and choose
one
of the three (3) pattern types available (i.e.,
Gradation (Rainbow), Green or Blue).
4. Mouse-click on the Dialog “
ok ” Screen Button to
select the desired LED Idle Pattern, and accept
the state reported.
Reading a Stand-by LED Pattern Color
Perform following steps when reading the Front
Panel LED Stand-by Pattern Color indication.
1. Mouse-click and hold-down on the “ VEGA_
Adjustment
” Tool Bar “ Menu ” selection, then
2. Slide-down select “
EEPROM led idle pattern
Read
” from the Pull-Down Menu selections
(See Figure 6-76).
3. The VEGA Unit then sends
the stand-by Color
indication data to the PC and then the read com-
plete window shown in Figure 6-77 will appear.
4. Mouse-click on the Dialog Screen’s “
OK ” Screen
Button to accept the read state reported.
Reading Adjustment Data
Perform following steps to read the VEGA Unit’s
Adjustment Data:
1. Mouse-click and hold-down on the “ VEGA_
Adjustment
” Tool Bar “ Menu ” selection, then
2. Slide-down select “
EEPROM Adjustment Read
(A)
” from the Pull-Down Menu selections
(See Figure 6-78).

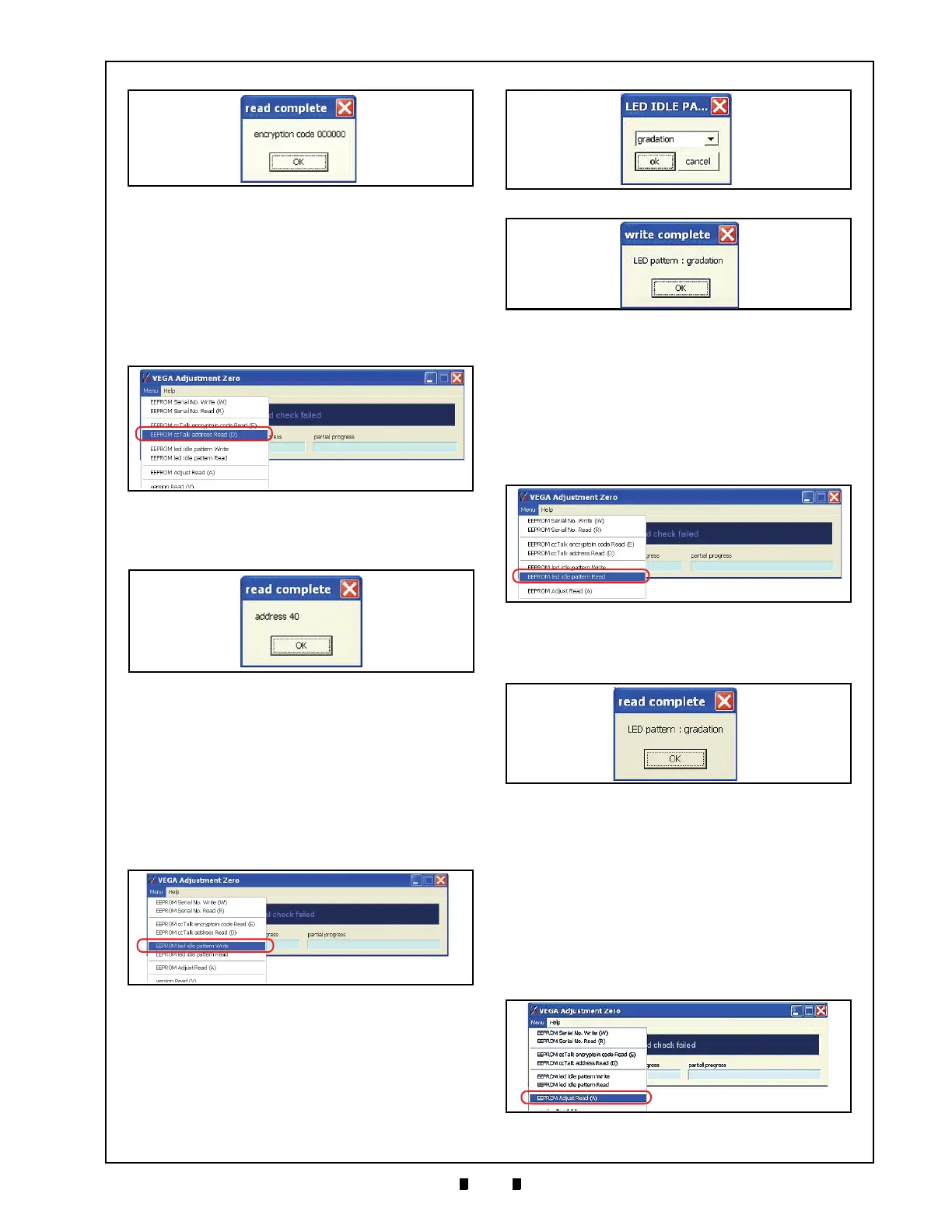

Figure 6-70 ccTalk Encryption Code Screen
Figure 6-71 Menu Bar Pull-Down Selections 4
Figure 6-72 ccTalk Address Read Complete
Dialog Screen
Figure 6-73 Menu Bar Pull-Down Selections 5
Figure 6-74 Select LED Pattern Color Screen
Figure 6-75 Writing LED Stand-by Indication
Figure 6-76 Menu Bar Pull-Down Selections 6
Figure 6-77 Reading LED Stand-by Indication
Figure 6-78 Menu Bar Pull-Down Selections 7
