JCM VEGA Series User Manual

P/N 960-100189RA_Rev. A {EDP #148850} © 2009, Japan CashMachine Co., Limited
2-10
Section 2 VEGA™ Series BankNote Validator Installation/Operation
Operational Flowchart (Continued 2)

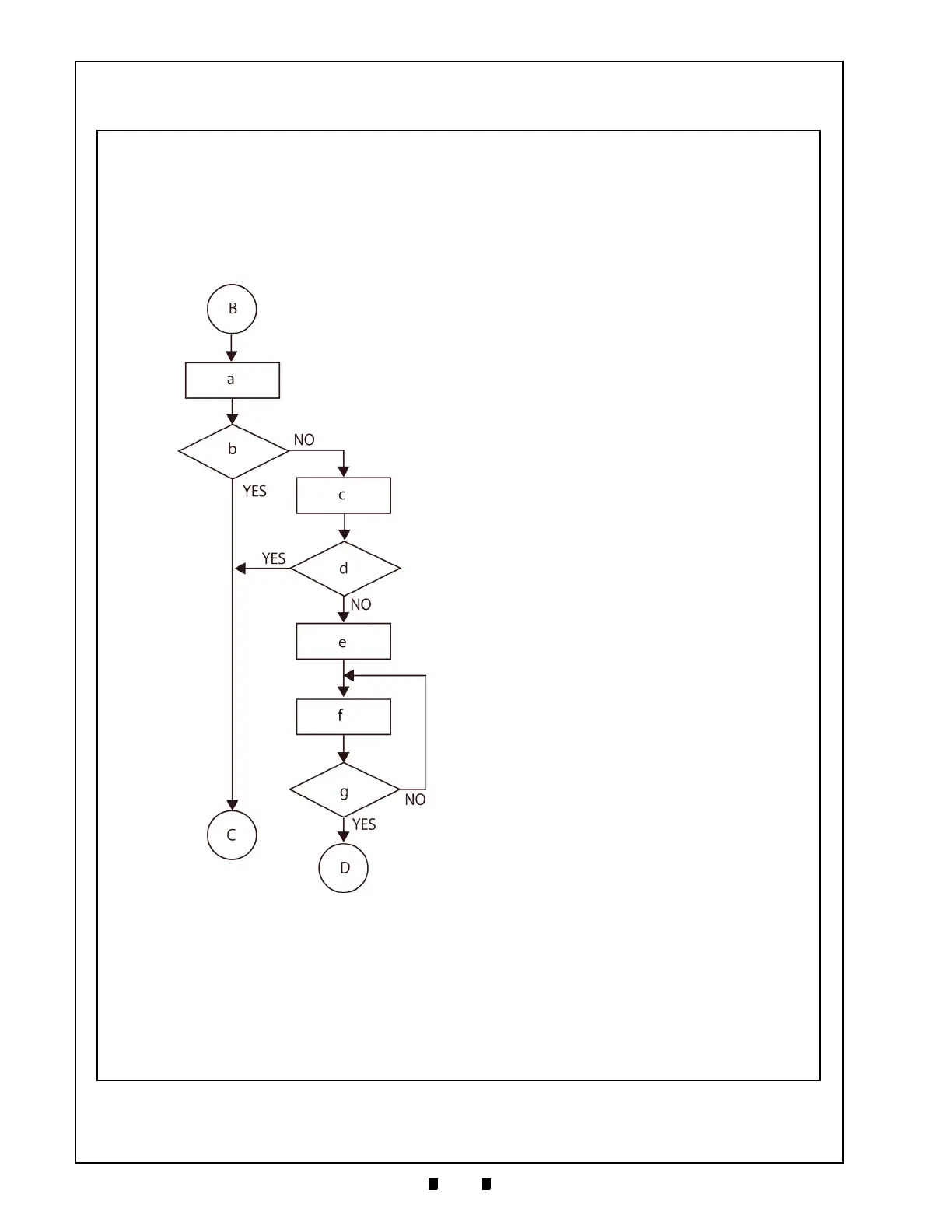

Figure 2-19 depicts part three of a typical VEGA Banknote reject flow process
a) Reject Banknote
b) Complete Banknote Rejection?
c) Try to Reject Again
d) Complete Banknote Rejection Now?
e) Stop Banknote Movement
f) LED Display Flashes a Red Color
g) Remove Banknote from the Transport Path?
B) Reject Command
D) Return to Initializing (See Figure 2-17 on page
2-8)
C) Return to Stand-by (See Figure 2-17 on page
2-8)
Figure 2-19 VEGA Banknote Validator Operational Flowchart (Part 3 Reject)
