Section 2 VEGA™ Series BankNote Validator Installation/Operation
Table 2-5 VEGA Sensor Cleaning Methods
Sym. Sensor Cleaning Method
a Entrance Sensors Wipe area clean using a lint-free cloth
b Validation Sensors Wipe area clean using a lint-free cloth
c Side Sensors Wipe area clean using a lint-free cloth
d Escrow Sensor Wipe area clean using a lint-free cloth
e Recycler (RC) Flap Sensor Blow area clean with compressed air jet
f Stacker Door Flap Sensor Blow area clean with compressed air jet
g Stack Input Sensor Wipe area clean using a cotton swab
h Cash Box Present Sensor
Blow area clean with a compressed air jet 
(Cash Box as well)
i Pusher Mechanism Home Position Sensors
Blow area clean with a compressed air jet 
(Cash Box as well)

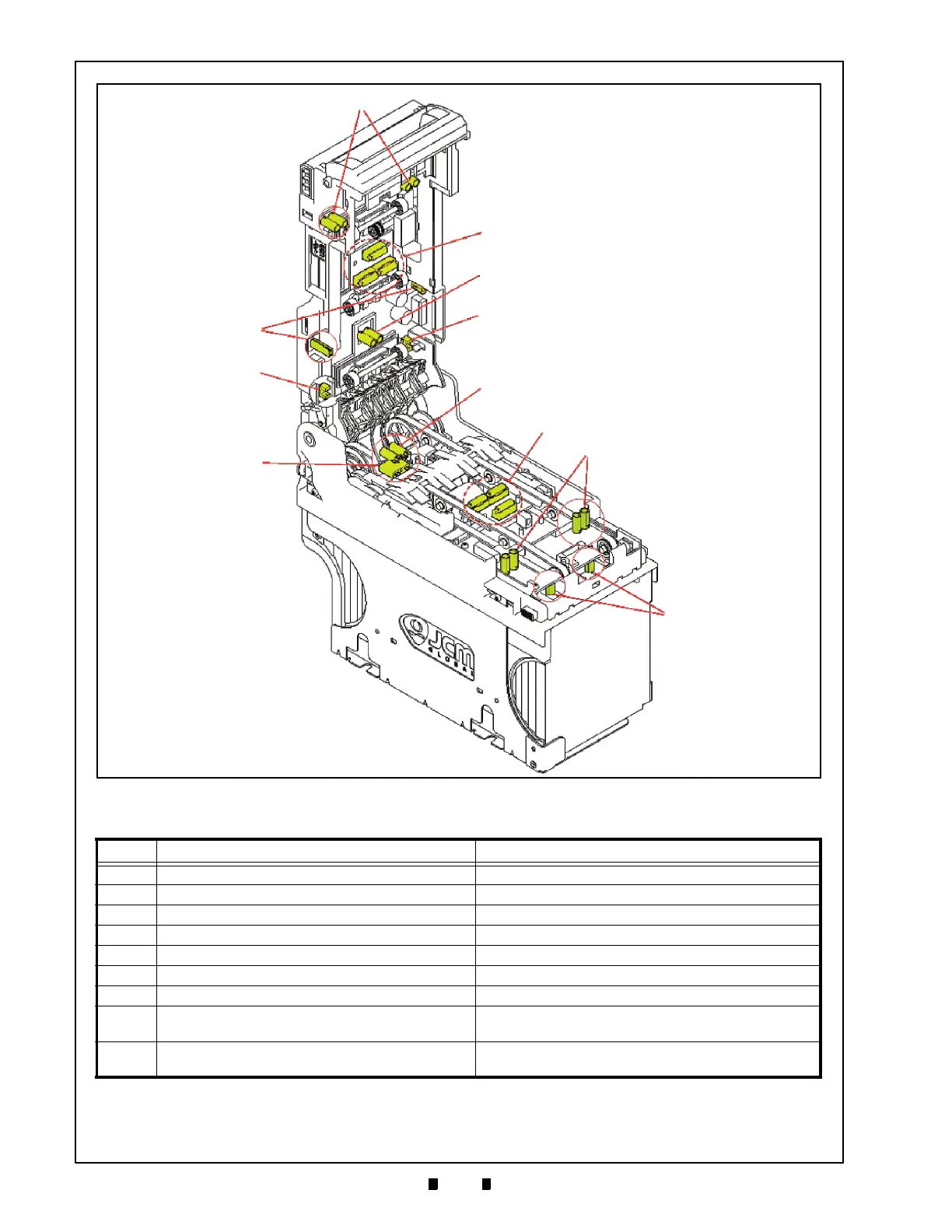

Figure 2-13 VEGA Sensor Cleaning Locations
a
b
c
d
e
f
g
h
a
b
i
