Section 1 VEGA™ Series BankNote Validator General Information
Specifications
T ECHNICAL S PECIFICATIONS
E NVIRONMENTAL S PECIFICATIONS

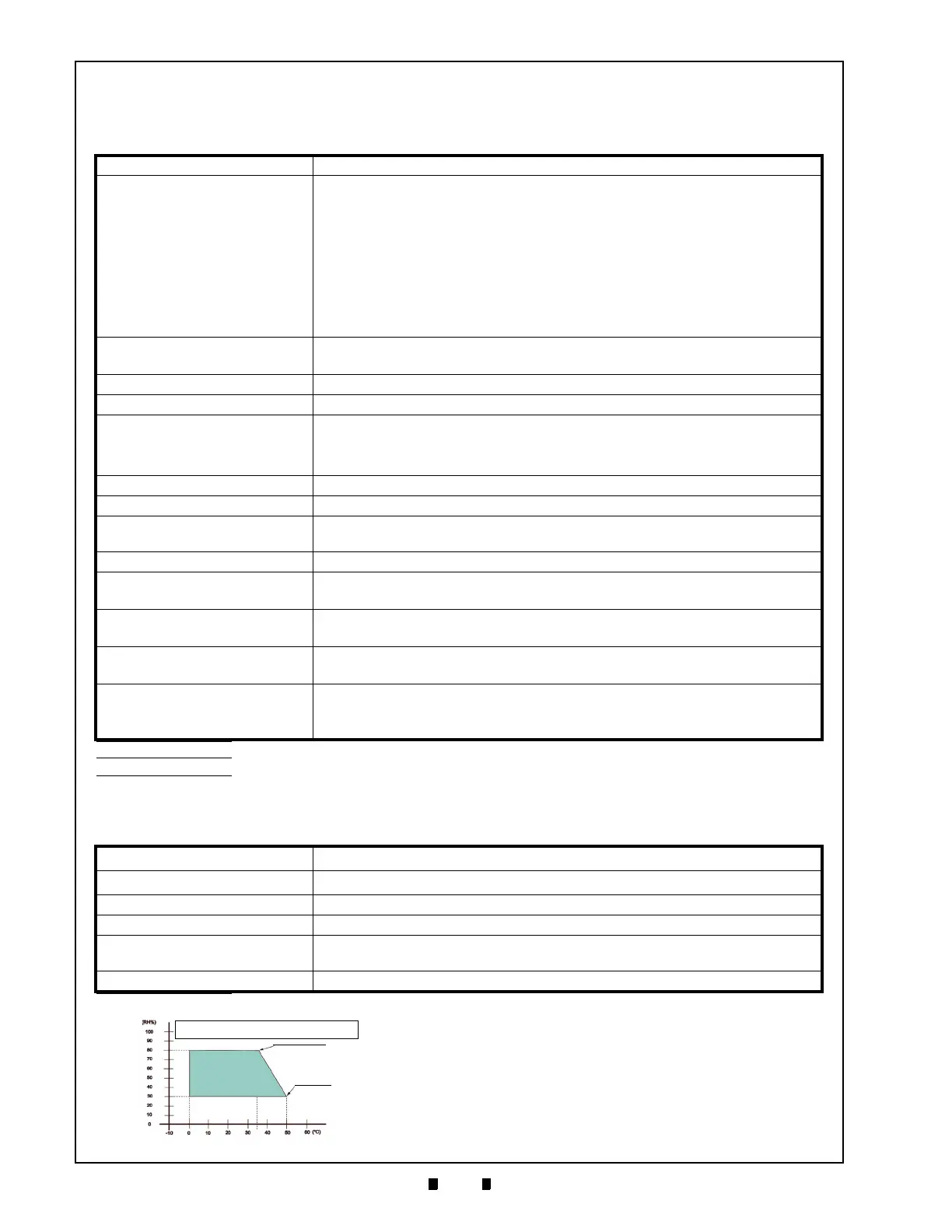

Table 1-3: VEGA Technical Specification
Accepted Denomination: Refer to the Specific Country’s “Software Information Sheet”
Acceptance Rate:
a
a. Based on new Euro Banknotes. Refer to the “Software Information Sheet” for each Country’s Banknote particular acceptance rate.
95% or greater (including the 1st Banknote returned and 2nd Banknote
accepted)
Note: The following Banknote types are excluded:
a) Banknotes with excess or poor magnetism or unclear graphics.
b) Double (dual) Banknotes.
c) Worn, dirty, wet, stained, torn or excessively wrinkled Banknotes.
d) Banknotes having folded corners or edges.
e) Banknotes having the wrong cut dimensions or printing displacement.
f) Returned Banknote because of incorrect or failed insertion.
g) Banknotes having excessive or insufficient Magnetic-ink (when Magnetic
Se
nsor contact occurs).
Banknote Types Accepted:
Long side: 110~165mm (4.33~6.5 in.).
Short side: 60~82mm (2.36~3.23 in.).
Insertion Direction: Four (4) ways
Validation Method: Optical, 5 wavelength (transparency and reflection)
Processing Speed:
b
b. Based on Euro Banknote sizes. Processing time depends on the Host communication time lag.
a) Approximately 2 seconds (from Banknote insertion to vend signal output).
b) Approximately 3 seconds (from Banknote insertion to completion of stacking).
c) Approximately 3 seconds (from Banknote insertion to enable of next
insertion).
Diagnostic Indicators: LED (full-Color range)
Escrow: 1
Banknote
Sequential Operation:
Not supported (Sequential Operation by more than 100
Banknotes is 
prohibited).
Anti-stringing Mechanism: Optical and mechanical combination.
Cash Box Capacity:
Approximately 300 notes (new
Banknotes for Standard Cash Box)
Approximately 1000 notes (new
Banknotes for Large Cash Box).
Cash Box Access:
Front or Rear (SH Type).
Upward (SU or SD Type).
Cash Box Type:
Standard Cash Box
Large Cash Box.
Interface:
c
c. Related Parameters for the respective Interface type or types listed.
Table 1-4: VEGA Environmental Specification
Operating Temperature:
0°C to ~ + 50°C (32°F to ~122°F)
a
Storage Temperature:
-20°C to ~ + 60°C (- 4°F to ~140°F)
a
a. Depends on Hydrothermal conditions
Relative Operating Humidity: 30% to ~80% RH (non-condensed)
Relative Storage Humidity: 10% to ~85% RH (non-condensed)
Visible Light Sensitivity:
Avoid contact with direct sunlight (
Interior lighting must be incandescent with a Gradient
Angle of 15 Degree or more, having an Illumination index of 3000 Lux or less
)
Installation: Indoors Only (
Not exposed to the elements, including the internal Unit assemblies )
a) Photo-coupler Isolation
b) RS232C
c) ccTalk
†
(a~b) = ID-003
†
c) = ID-0E3
35°C/80RH%
50
°C/30RH%
Hydrothermal Condition Graph
Allowable 
Operating
Temperature and
Humidity Range
