CHECK OIL LEVEL IN POWER TRAIN CASE, ADD OIL
WARNING
The parts and oil are at high temperature after the engine is stopped, and may cause serious burns. Wait for the temperature to
go down before starting the operation.

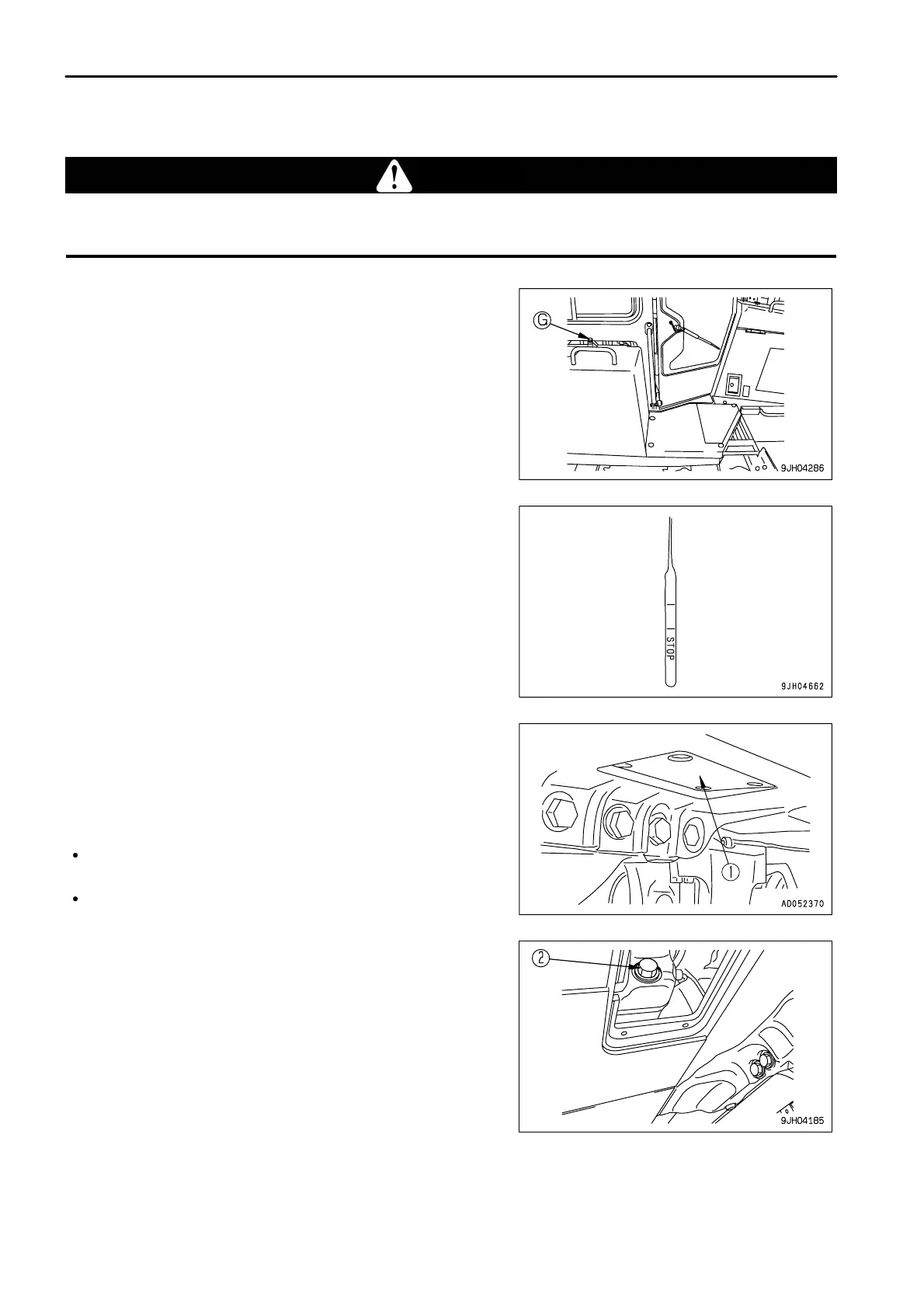

1.
Remove dipstick (G), and wipe the oil off with a cloth.
2.
Fully insert dipstick (G) into filler pipe (F), then remove it.
3. Check that the oil level is between the top and bottom marks on
dipstick (G).
If the oil level is below the bottom mark, add oil through the
dipstick holder.
4. If the oil is above the top line, remove drain cover (1) at the right
side at the bottom surface of the power train case, loosen drain
plug (2), drain the excess oil, then check the oil level again.
5. If the oil level is correct, tighten the oil filter cap securely.
REMARK
If the machine is at an angle, reposition it to level before
checking.
When checking the oil level after the engine has been operated,
allow the engine to cool for 15 minutes before checking.
