MAINTENANCE
SERVICE PROCEDURE

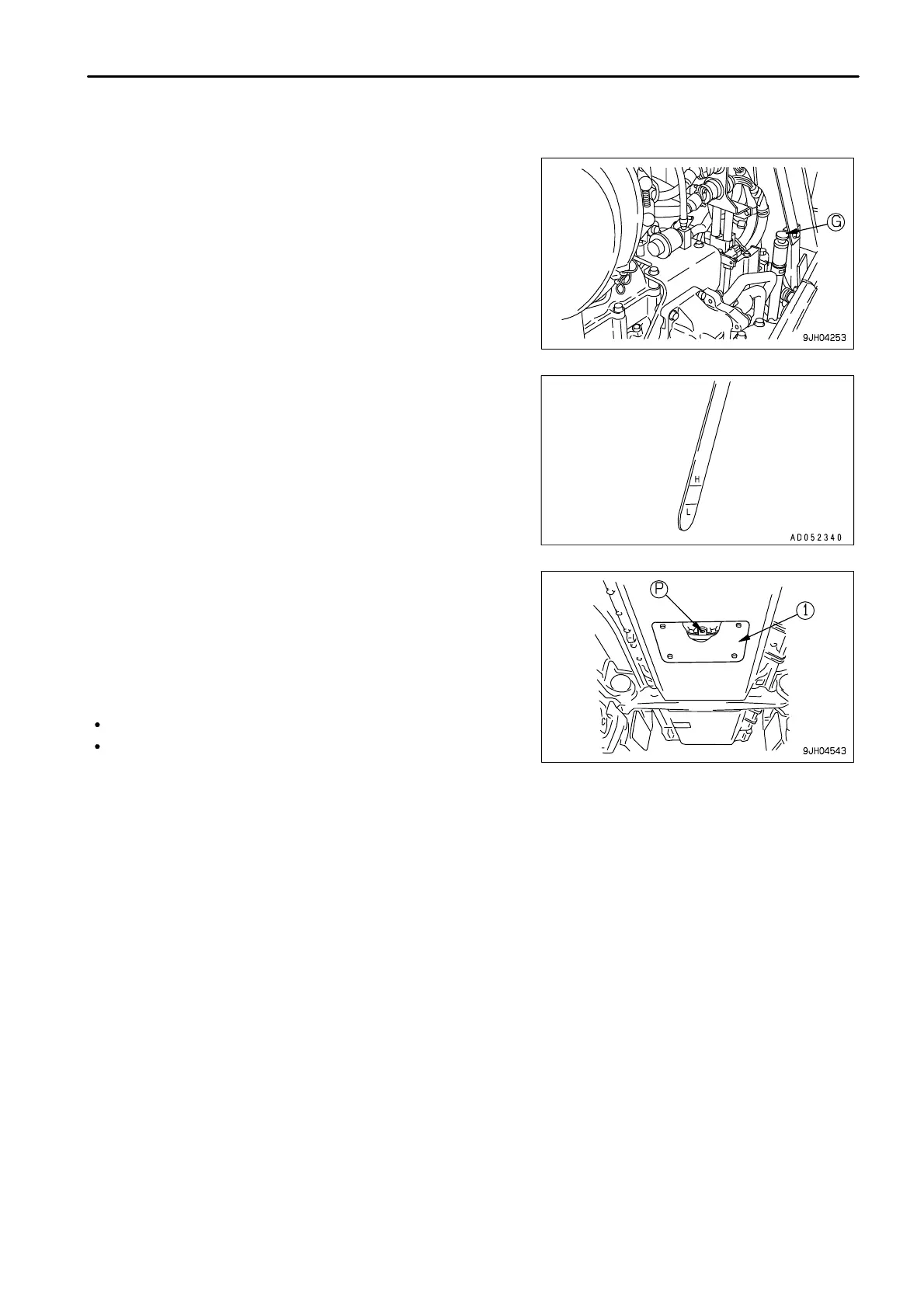

CHECK OIL LEVEL IN DAMPER CASE, ADD OIL
1.
Open the engine side cover on the left side of the chassis.
2.
Remove dipstick (G) and wipe the oil off with a cloth.
3. Fully insert dipstick (G) into filler pipe (F), then remove it.
4.
The oil on the oil level gauge (G) should be between the H mark
and L mark.
If the oil is below the L mark, add oil through the dipstick guide.
5.
If the oil is above the H mark, open inspection cover (2) in the
center of the bottom face of the power train case, drain the
excess oil from drain plug (P) of the engine damper which can
be seen towards the front of the machine from the inspection
window, then check the oil level again.
REMARK
Check the oil level while the engine is stopped.
If the machine is inclined, set it in a level position before
checking the oil level.
4 - 51
