OPERATION
TRANSPORTATION
SECURING MACHINE
NOTICE
Be sure to lower the car radio antenna to the stow position (if the machine is equipped with a cab).

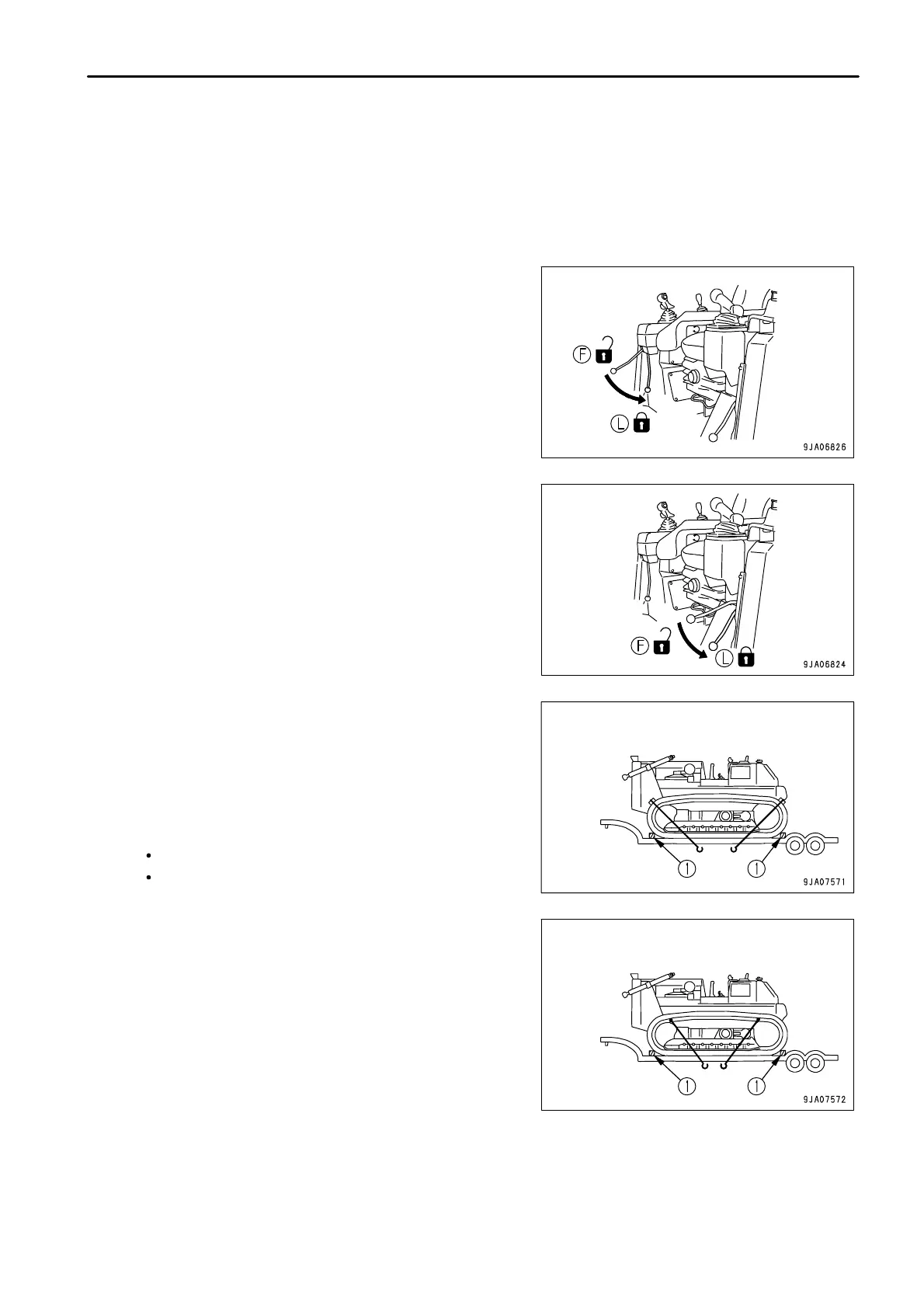

Load the machine onto a trailer as follows:
1. Lower the work equipment slowly.
(When transporting with work equipment installed)
2.
Set the work equipment lock lever to the LOCK position (L)
securely.
(When transporting with work equipment installed)
3.
Set the parking brake lever to the LOCK position (L) securely.
4.
Stop the engine, then remove the key from the starting switch.
5.
Fix the machine as explained below so that it will not move
during transportation.
In particular, fix the machine securely to prevent it from slipping
sideways.
1) Put blocks (1) in front and behind the track shoes of both
sides.
2)
Set up chain or wire, following (A) or (B).
A: Secure chain or wire around the track shoes.
B: Secure chain or wire through the holes of track links.
3)
Protect the wire from contacting directly with angular parts
of the machine, by inserting pads.
3 - 133
