ADJUSTMENT
ADJUSTING OPERATOR'S SEAT
WARNING
When adjusting the position of the operator's seat, always set the lock lever to the LOCK position to prevent any accidental
contact with the control levers.
Always adjust the operator's seat before starting each operation or when the operators change shift.
When adjusting the seat, put your back against the backrest and adjust to a position where the brake pedal can
be fully depressed.

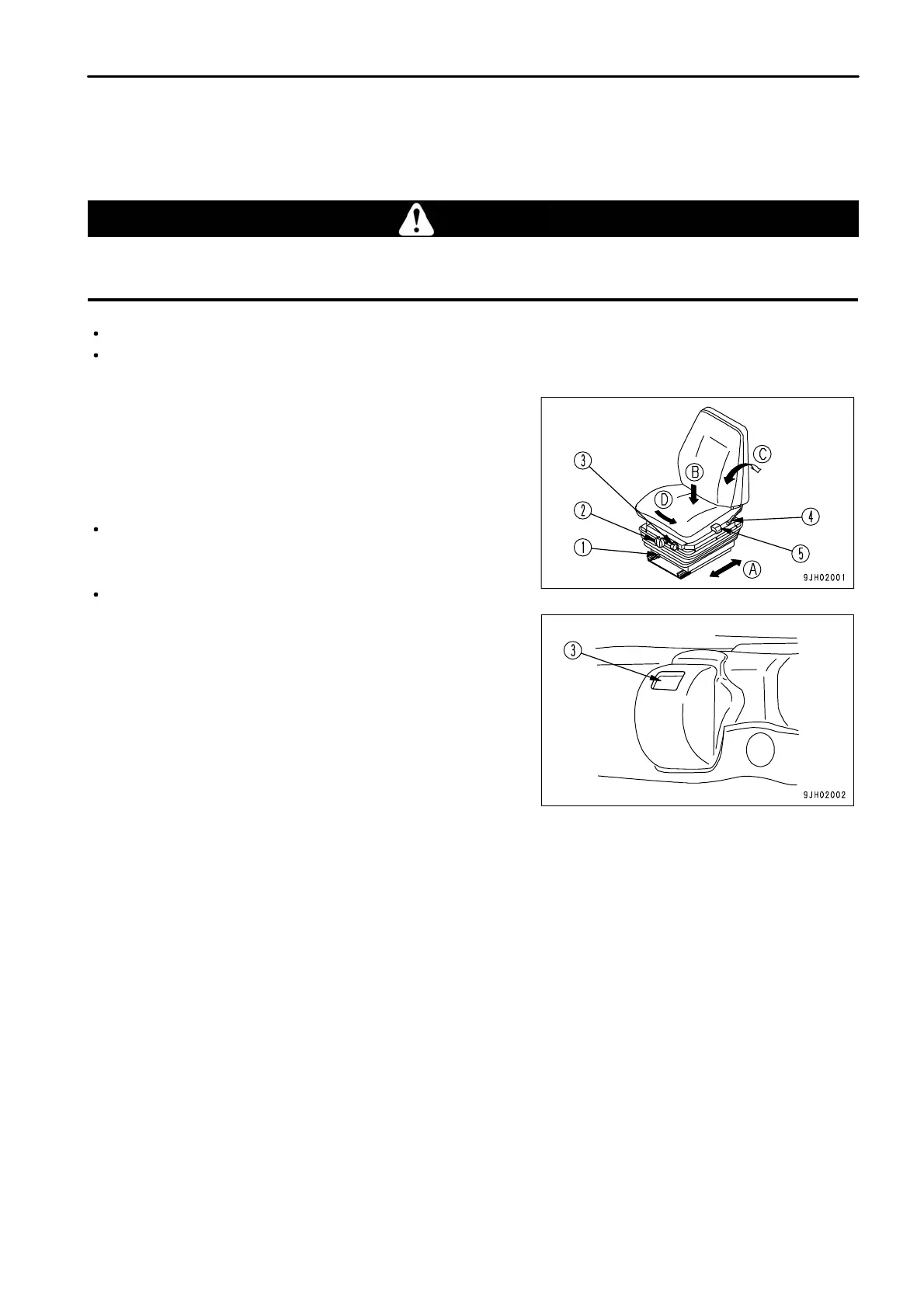

(A) Fore-and-aft adjustment
Pull lever (1), set the seat to a position where it is easy to operate,
then release the lever.
Fore-aft adjustment: 160 mm (6.3 in) (8 stages)
(B) Weight and height adjustment of seat
Turn knob (2) under the seat so that weight adjustment indicator
(3) displays the green range. The height can be adjusted by
turning the knob (2) while the green range is displayed.
Turn the knob clockwise to raise the seat and turn the knob
counterclockwise to lower the seat.
Height adjustment range: stepless, 75 mm (3 in)
Weight adjustment range: 50 to 130 kg (110 to 237 lb)
(C) Adjust reclining angle
REMARK
When the seat is pushed forward, the available reclining angle becomes greater; when the seat is pushed back, the
available reclining angle becomes smaller. When moving the backrest, return the backrest to its original position
before moving the seat.
Pull lever (4) up, set the backrest to the desired position, then release the lever.
3 - 89
