OPERATION
OPERATION

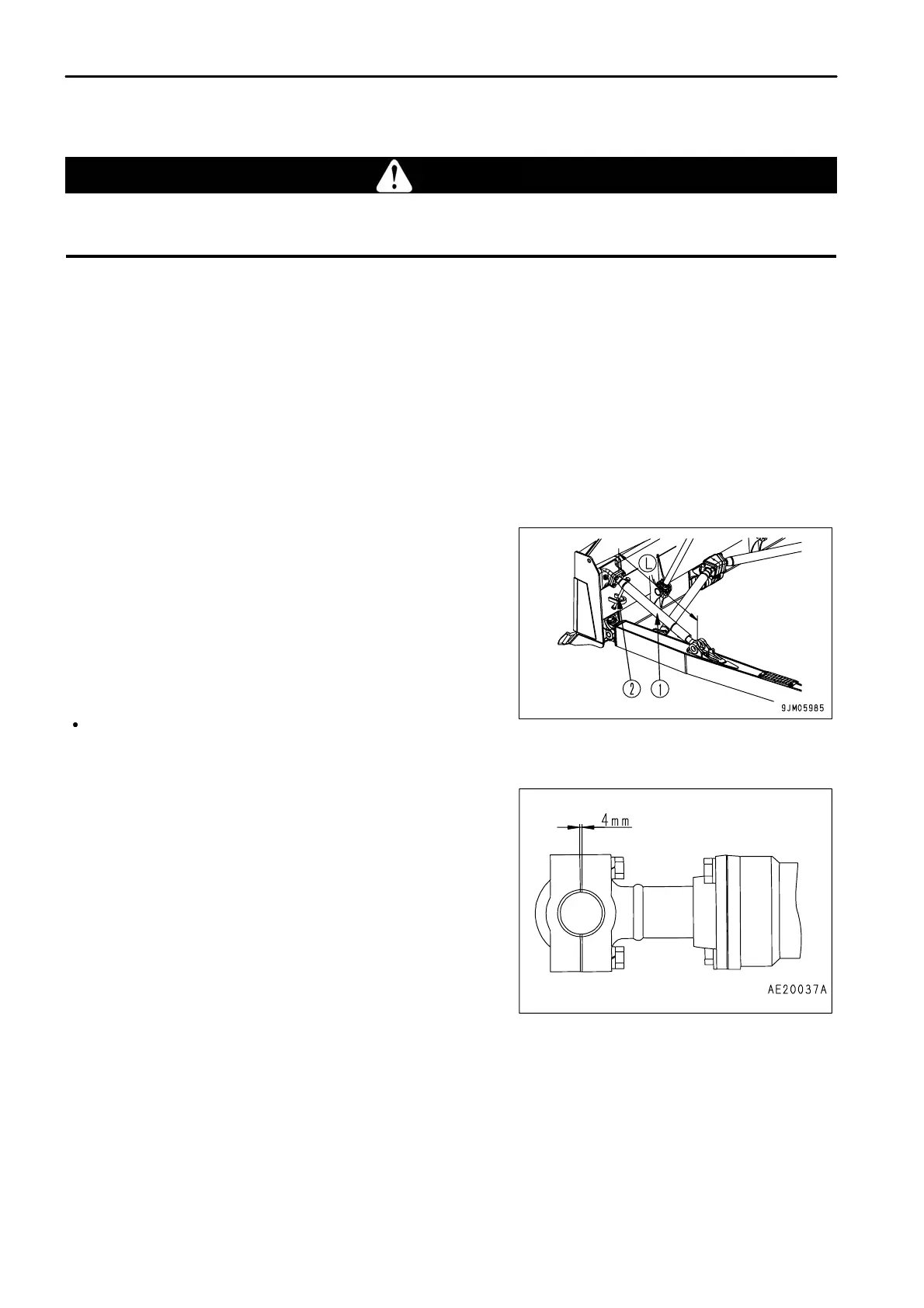

ADJUSTING POSTURE OF WORK EQUIPMENT
WARNING
When adjusting, it is dangerous if the work equipment is moved by mistake. Set the work equipment in a safe condition, then stop
the engine and lock the work equipment securely with the work equipment lock lever.
BLADE ADJUSTMENT
TILTING THE TILTDOZER
NOTICE
The maximum tilt is 750 mm (29.6 in)for the EX specification machine and 500 mm (19.7 in)for the PX specification machine.
When tilting, make sure that it does not exceed 750 mm (29.6 in)for the EX specification machine or 500 mm (19.7 in)for the PX
specification machine.
If the maximum tilt is exceeded, excessive force will be brought to bear on all parts, and this will damage the machine.
If the blade control lever is operated, the following tilt amount can
be obtained.
Right side: 410 mm (16.2 in)
Left side: 410 mm (16.2 in)
If more tilt is required, do as follows.
Use bar handle (2) installed to the left brace to turn brace (1) and
change length (L) of the brace. This makes it possible to obtain a
maximum tilt of 750 mm (29.6 in) for the EX specification machine
and 500 mm (19.7 in) for the PX specification machine.
Standard distance between joints (L): 1287 mm (50.7 in)
ADJUSTING SHIM IN BLADE CYLINDER CAP
Set the standard shim adjustment in the blade cylinder cap to 4 mm
(0.16 in).
Remove shims to balance the wear of the cap and the ball at the
end of the piston rod.
The proper clearance to be maintained with the shims is 0.2 to 0.5
mm (0.008 to 0.02 in).
3 - 120
