OPERATION
OPERATION

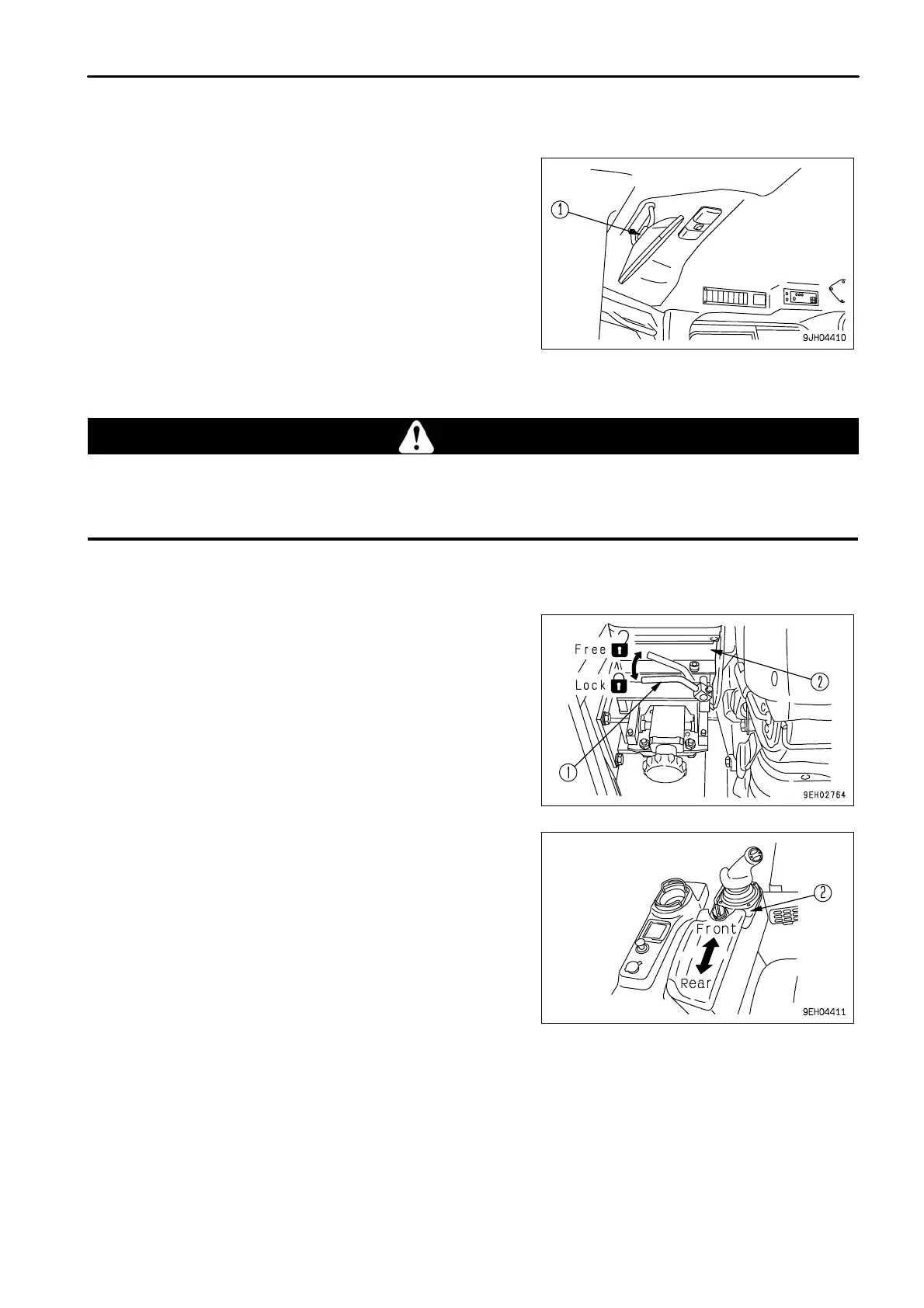

ADJUST MIRROR
Loosen nut (1) of the mirror and adjust the mirror to a position
where it gives the best view from the operator's seat.
In particular, be sure to adjust the mirror so that people at the rear
left or right of the machine can be seen clearly.
ADJUST STEERING, FORWARD-REVERSE, GEAR SHIFT LEVER
WARNING
After moving case (2) in order to adjust the position of the steering, directional, and gearshift lever, secure lock lever (1) into the
notched hole, making sure it is in the LOCK position. If it is not completely locked, the steering, directional, and gearshift lever
may unexpectedly move and cause damage, serious injury, or death.
The joystick can be adjusted by 90 mm (3.5 in) in 9 stages to the front or rear. Adjust to the most suitable position
to match the adjustment of the operator's seat.
1.
Pull up lock lever (1) to the FREE position at the rear of case
(2) on left side of the operator's compartment.
NOTICE
When moving case (2), do not grip the steering, forward-reverse, gear shift
lever. There is danger that the lever may break.
2. With lock lever (1) pulled up, use your other hand to grip the
front of case (2), then move it forward with your left and right
hands. The joystick moves with case (2).
3. Move case (2) to the desired position until a click is heard.
Then pull up lock lever (1) and release it. Lock lever (1)
automatically returns to the LOCK position.
3 - 91
