OPERATION
GENERAL VIEW

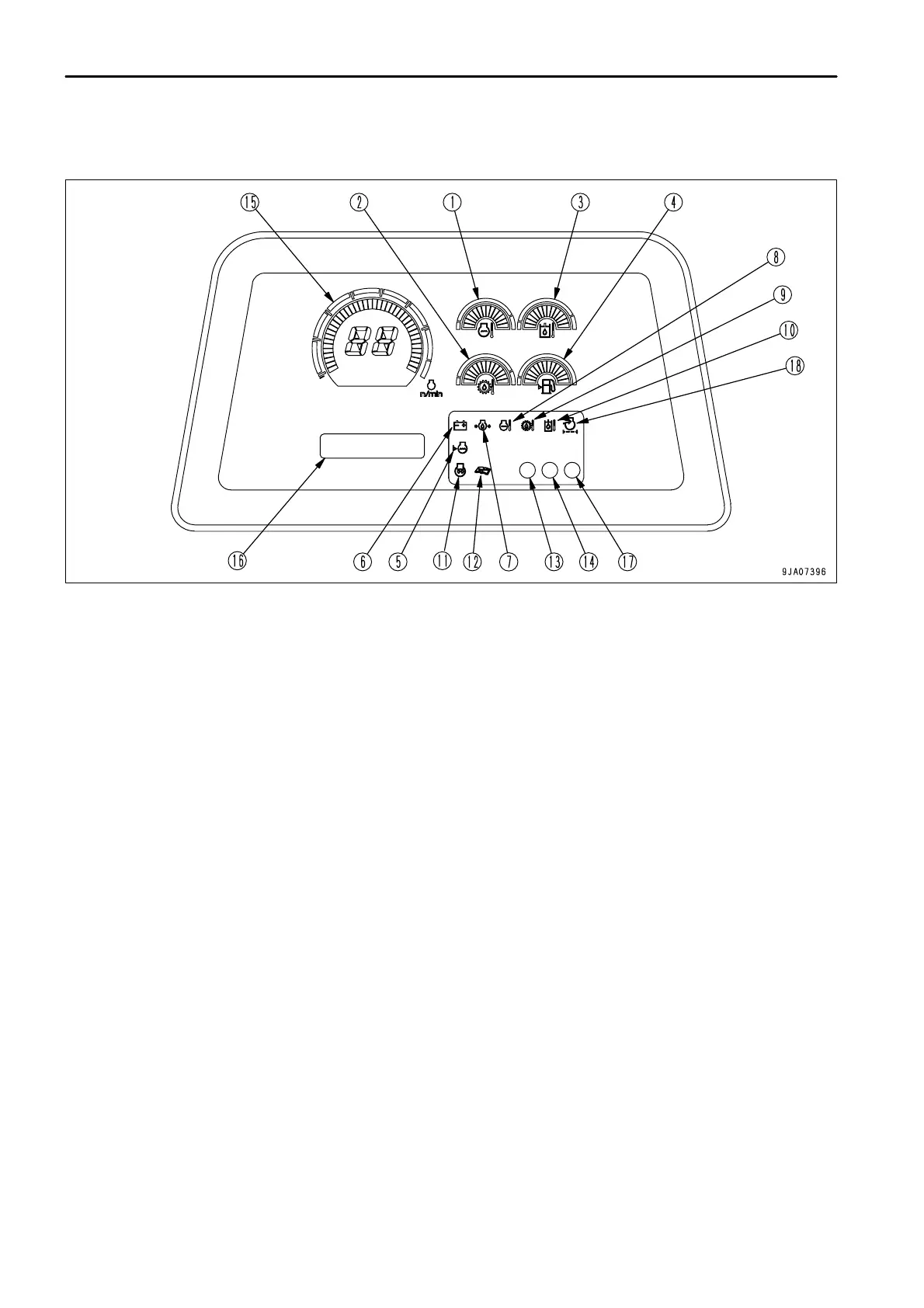

FRONT PANEL
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
Engine coolant temperature gauge
Power train oil temperature gauge
Hydraulic oil temperature gauge
Fuel level gauge
Radiator coolant level monitor
Charge level caution lamp
Engine oil pressure caution lamp
Engine coolant temperature caution lamp
Power train oil temperature caution lamp
Hydraulic oil temperature caution lamp
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
Engine pre-heating pilot lamp
Maintenance caution lamp
Warning lamp
Filter / oil change interval lamp
Display panel A
(Speed range display, Engine speed)
Display panel B (Multi-information)
Fan operation confirmation lamp
Air cleaner clogging caution lamp (If equipped)
