OPERATION
EXPLANATION OF COMPONENTS
OPERATION
EXPLANATION OF COMPONENTS

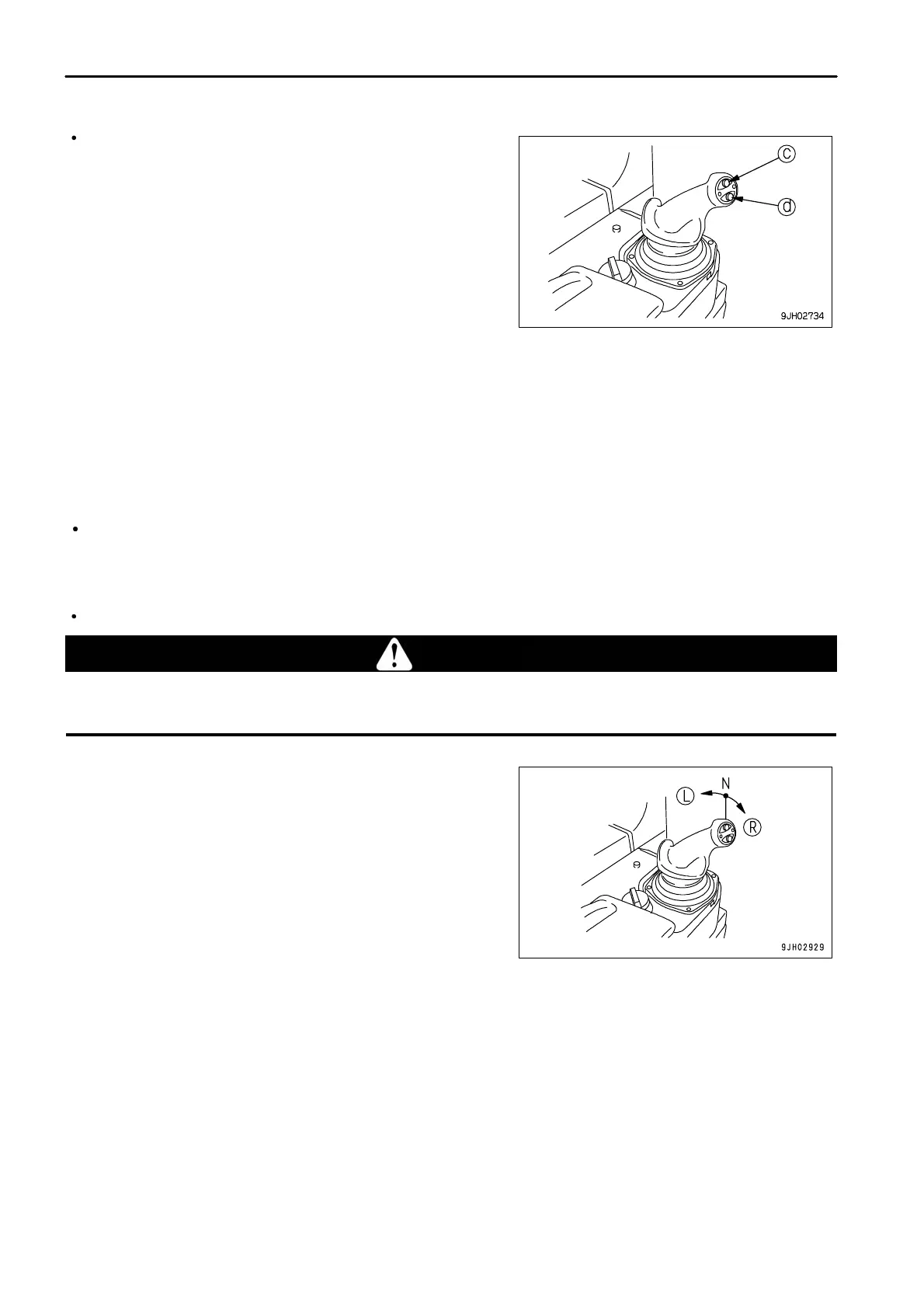

Gear shifting
When the steering, directional, and gearshift lever is at the
FORWARD or REVERSE position and switch (c) or switch (d) is
pushed, the transmission speed will change.
UP switch (c): Each time the switch is pressed, the transmission
will shift up one speed.
DOWN switch (d): Each time the switch is pressed, the
transmission will shift down one speed.
For details of the maximum speed in each speed range, see
"SPECIFICATIONS (PAGE 5-2)".
REMARK
The speed range being used is displayed on panel A on the monitor panel according to the gearshift operation.
<Example>
Neutral: N is displayed on the display panel.
FORWARD 2nd: F2 is displayed on the display panel.
REVERSE 3rd: R3 is displayed on the display panel.
When the parking brake lever is locked, P is displayed.\T
For details of the method of shifting gears according to the shift mode, see the "SHIFTING GEAR (PAGE 3-107)".
Shift mode selection means that the selected speed range is displayed at the NEUTRAL position (N) before
starting.
Operating counter-rotation turn
WARNING
When operating the counter-rotation turn, if the load on the left and right is not balanced, the machine may make a pivot turn, so
check the ground conditions and be careful not to hit any obstacles when carrying out the operation.
With the lever in the N position, move the lever partially in the
direction of turn. The left and right tracks will rotate in opposite
directions, and the machine will make a slow counter-rotation turn.
If the lever is moved further, the speed of the counter-rotation turn
will increase.
(R): Right counter-rotation turn
(L): Left counter-rotation turn
