OPERATION
EXPLANATION OF COMPONENTS

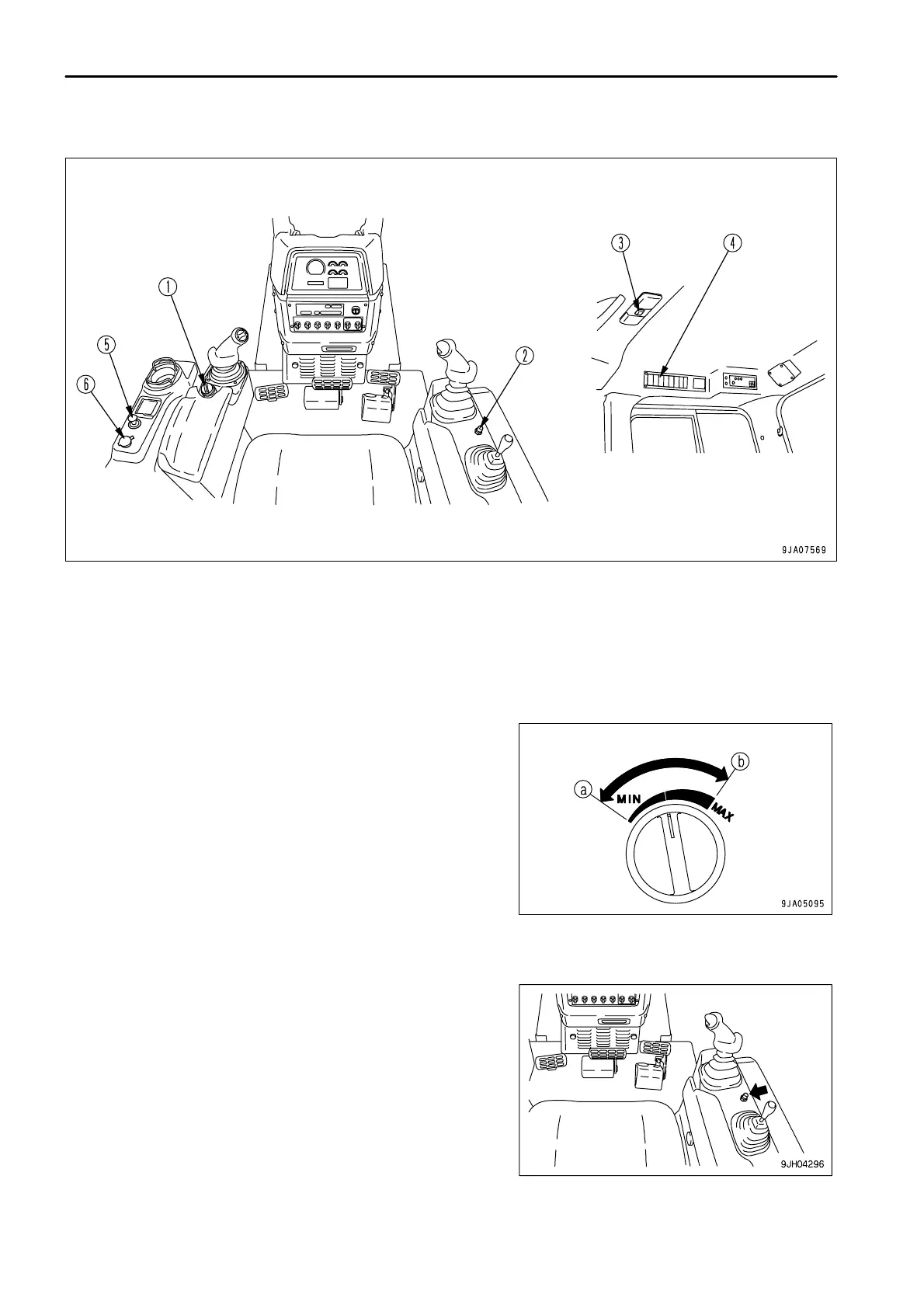

SWITCHES
(1)
(2)
(3)
Fuel control dial
Horn switch
Room lamp switch
(4)
(5)
(6)
Wiper switch
Cigarette lighter
Accessory socket
FUEL CONTROL DIAL
Dial (1) is used to control the engine speed and output.
(a) Low idling position: Turn fully to the left
(b) High idling position: Turn fully to the right
REMARK
To stop the engine, turn the starting switch to the OFF position.
HORN SWITCH
The horn sounds when the button (2) at the rear of the blade control
lever at the right side of the operator's seat is pressed.
3 - 34
