OPERATION
EXPLANATION OF COMPONENTS
HYDRAULIC OIL TEMPERATURE GAUGE

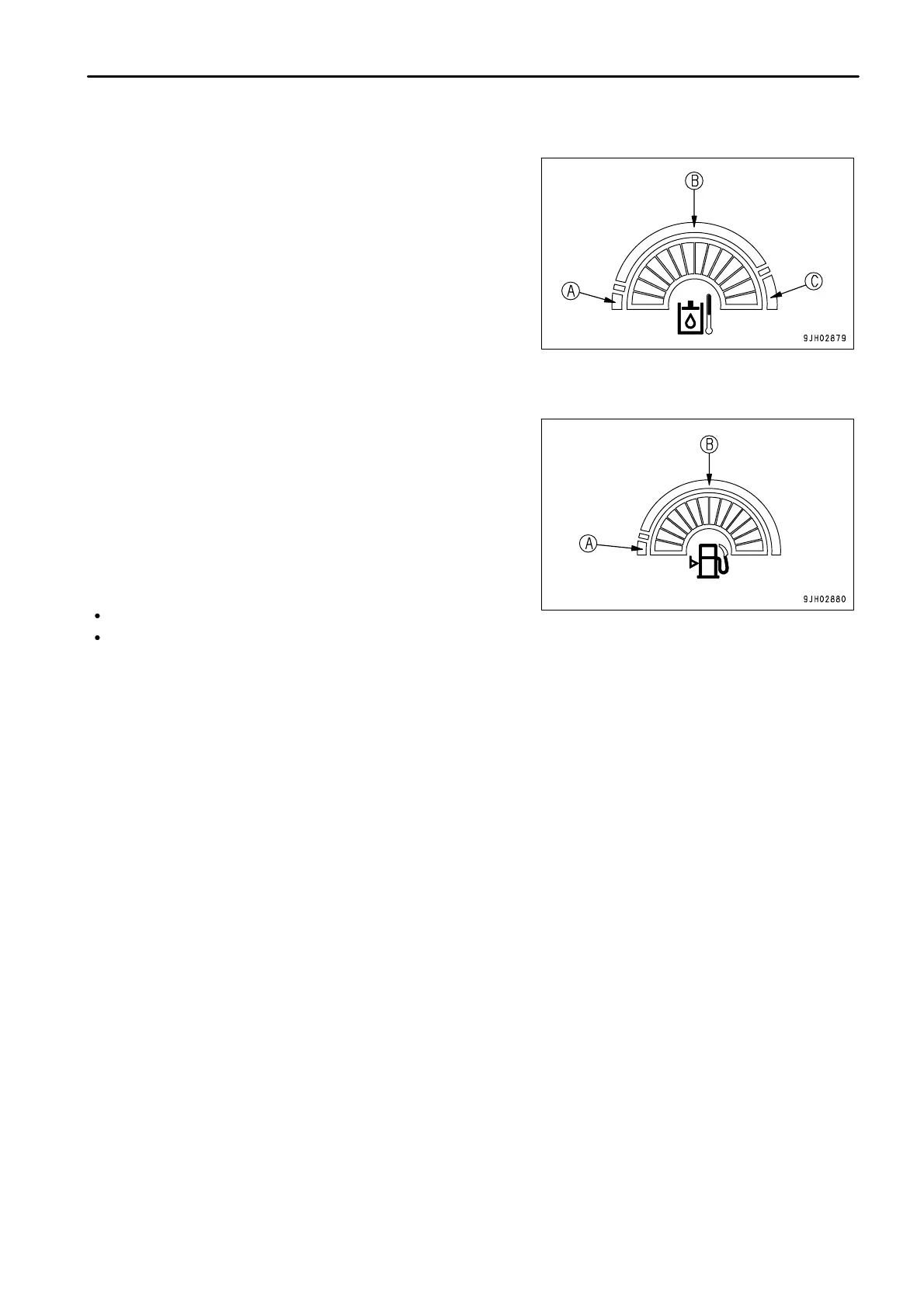

Gauge (3) indicates the hydraulic oil temperature.
If the temperature is normal during operation, green range (B) will
light.
If red range (C) lights up during operation, move the fuel control dial
to lower engine speed to approx. 3/4 of the full speed, reduce the
load and run until the oil temperature enters green range (B).
(A): White range
(B): Green range
(C): Red range
FUEL LEVEL GAUGE
Gauge (4) fuel level in the fuel tank.
During normal operation, the green range (B) should be lit.
If red range (A) lights up during operation, add fuel immediately. If
this is not done, the engine speed will become irrgular or an error
display will be shown on the monitor.
(A): Red range
(B): Green range
REMARK
The display is not proportional to the amount of fuel remaining.
If only the red range (A) lights up, there is less than 60 liters
(15.85 US gal) of fuel remaining.
3 - 15
