MAINTENANCE
SERVICE PROCEDURE

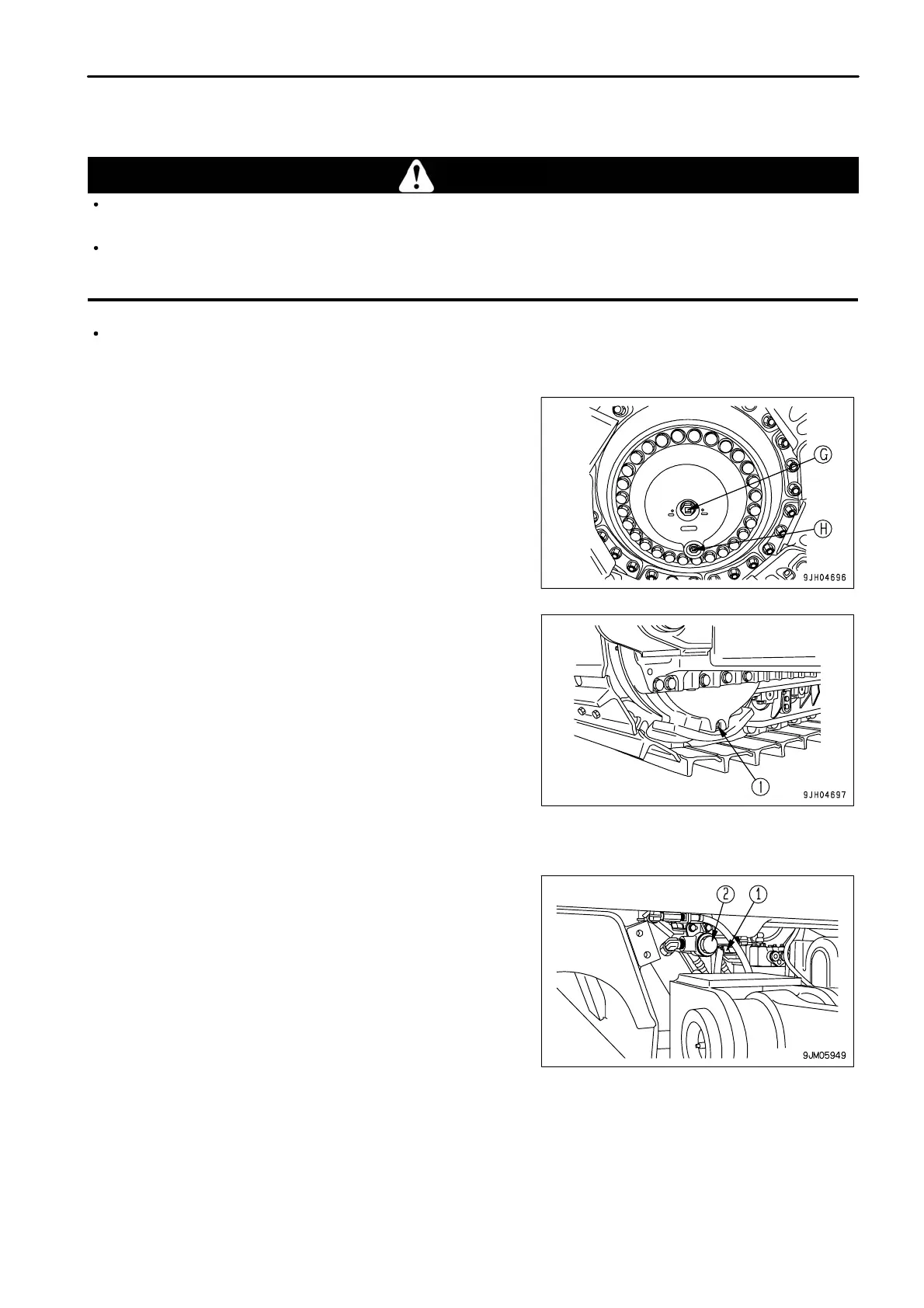

CHANGE OIL IN FINAL DRIVE CASE
WARNING
The oil is at high temperature immediately after the machine has been operated. Wait for the oil to cool down before starting
the operation.
There is danger that oil spouts out due to the internal pressure. When removing the plug, work from the side, turn the plug
slowly to release the internal pressure, and remove it carefully.
Refill capacity:
D85EX : (each) 26 liters (6.87US gal)
D85PX : (each) 36 liters (9.51US gal)
1. Stop the machine so that drain plug (H) is directly at the bottom.
2.
After removing oil filler/level plug (G), remove drain plugs (H)
and (1), drain the oil, then tighten the plug again.
3. Add the replacement amount of oil through the hole of plug (G).
4.
After adding oil, check that the oil is up to to the specified level.
For details, see "CHECK OIL LEVEL IN FINAL DRIVE CASE,
ADD OIL (PAGE 4-55)".
CHECK, CLEAN FUEL STRAINER
1.
Close fuel supply valve (1), then remove strainer cap (2).
The strainer forms one unit with the strainer cap.
2. Remove any dirt stuck to the strainer, then wash in clean diesel
fuel or flushing oil. If the strainer is damaged, replace it.
3.
After checking and cleaning, set the strainer in the case, then
tighten cap (2).
4.
After installing, open fuel supply valve (1).
4 - 59
