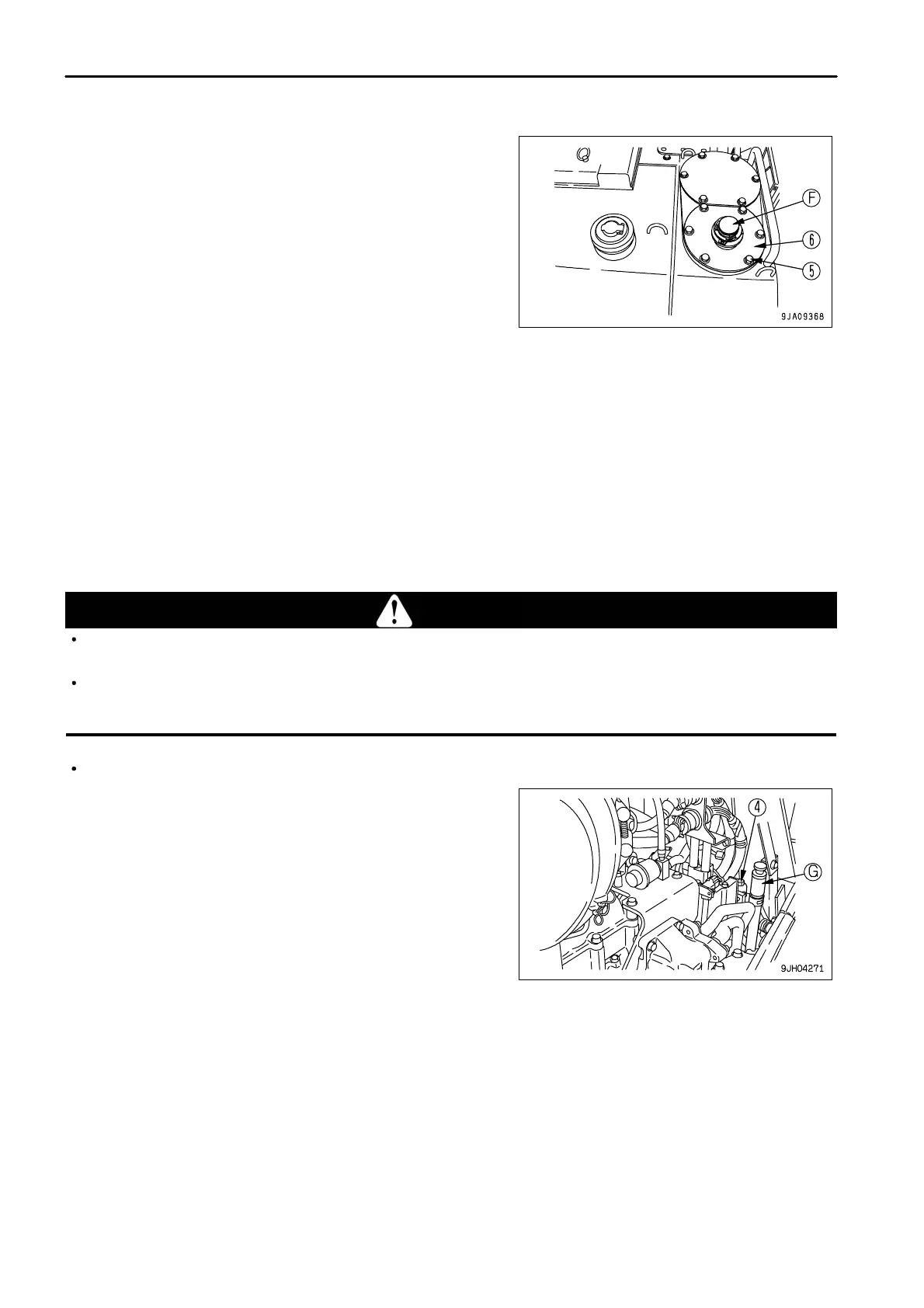

7. Remove bolts (5), then remove cover (6) and take out the
strainer.
8.
Wash the strainer in clean diesel oil or flushing oil.
9. Install the strainer to its original position.
10.
Add the refill amount of engine oil through oil filler port (F), then install the cap.
When installing cap to the tank, push it down, then turn it clockwise.
REMARK
If the cap is not installed correctly, it will cause leakage of oil.
When installing the cap, press the cap down, and turn it until it is securely in contact with the stopper.
11.
After adding oil, check that the oil is at the specified level. For details, see "CHECK OIL LEVEL IN HYDRAULIC
TANK, ADD OIL (PAGE 3-83)".
CHANGE OIL IN DAMPER CASE, CLEAN DAMPER BREATHER
WARNING
The oil is at high temperature immediately after the machine has been operated. Wait for the oil to cool down before carrying
out maintenance.
The undercover is heavy, so do not go directly under the cover when opening or closing it. When removing bolts (2) and (3),
carry out the operation at the rear of the point immediately under the cover so that it is possible to escape at any time.
Refill capacity: 1.5 liters (0.40 US gal)
1. Open the engine side cover on the left of the machine; you can
see dipstick (G).
