OPERATION
EXPLANATION OF COMPONENTS
FUSE
NOTICE
Before replacing a fuse, be sure to turn starting switch to the OFF position.
The fuses protect the electrical equipment and wiring from burning out.
If the fuse becomes corroded, or white powder can be seen, or the fuse is loose in the fuse holder, replace the fuse.
Replace the fuse with another of the same capacity.

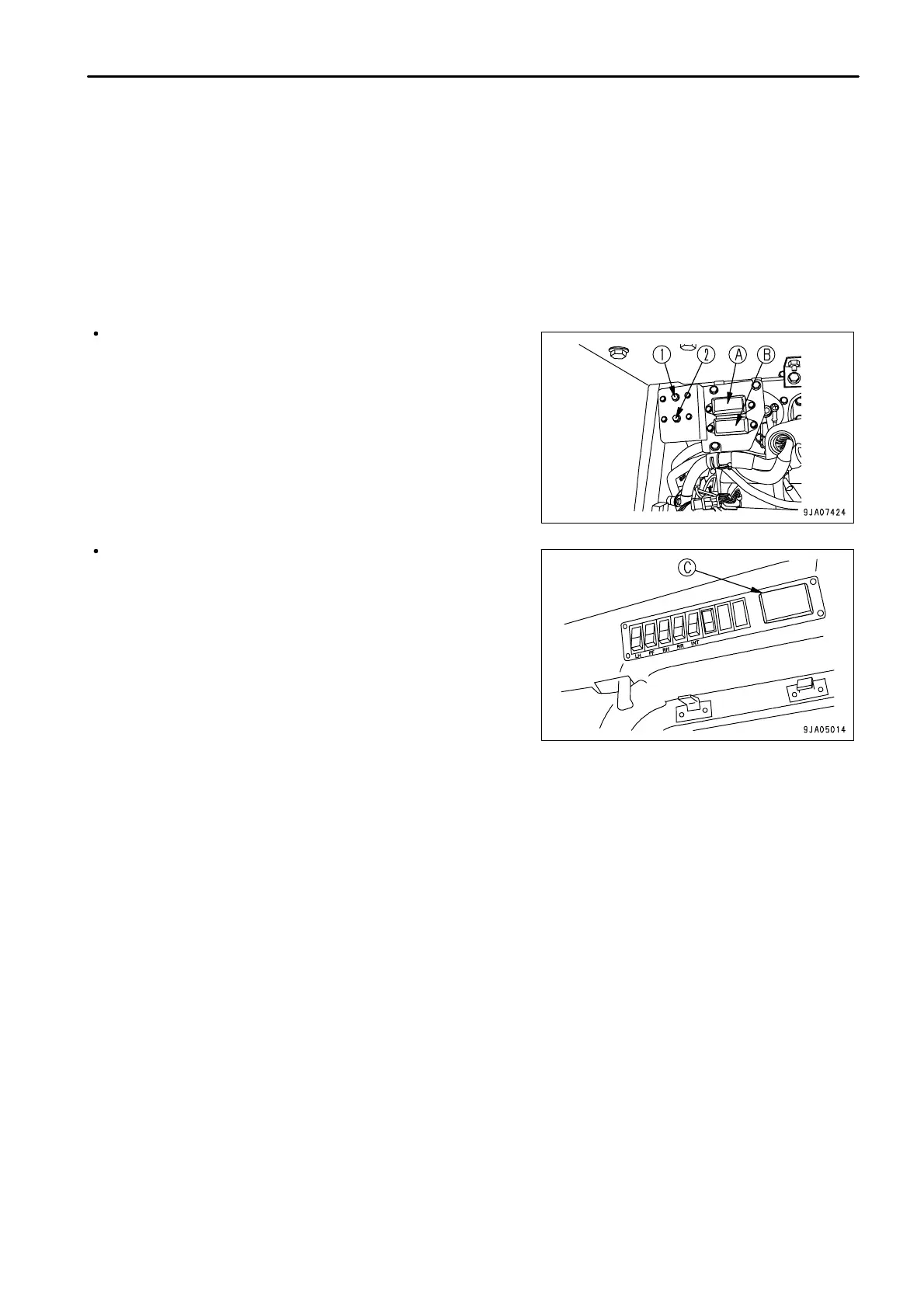

Chassis
Open the battery cover. Fuse boxes (A) and (B) and main power
circuit breakers (1) and (2) are installed inside.
Cab (machines equipped with cab)
Fuse box (C) is installed in the overhead panel.
3 - 45
