OPERATION
EXPLANATION OF COMPONENTS

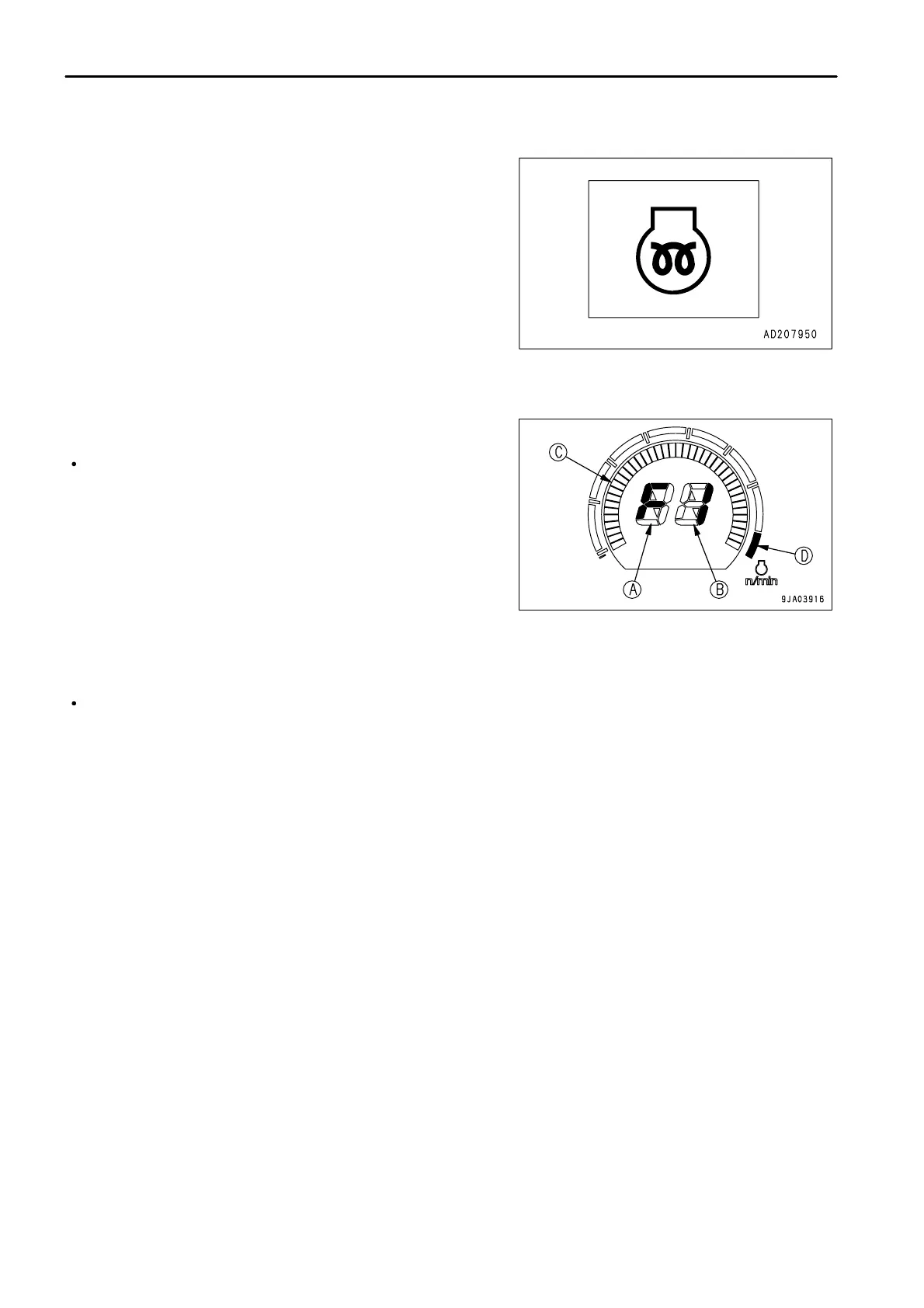

ENGINE PRE-HEATING PILOT LAMP
Lamp (5) indicates that engine is being pre-heated by the electrical
heater during cold weather.
The engine controller detects the coolant temperature and
automatically actuates pre-heating in low temperatures when
starting the engine.
DISPLAY PANEL A (speed range display, engine speed)
Meter (6) displays the transmission speed range being used on the
machine and engine speed.
The travel direction (A) and speed range (B) are displayed in the
center of the speed range display.
(A) F: FORWARD
R: REVERSE
N: Neutral
P: Parking brake lever at LOCK position
(B) 1: 1st
2: 2nd
3: 3rd
Example: F1 is displayed for FORWARD 1st
Bar graph (C) around the outside of the display shows the engine speed.
If the bar graph reaches red range (D) during operation, take action to reduce the engine speed. Always keep
the bar graph in the green range.
