OPERATION
EXPLANATION OF COMPONENTS
DISPLAY PANEL B (Multi-information)
The top and bottom lines in display panel B (multi-information) display information related to the condition of the
machine.
The content of the display is divided into "OPERATING MODE" and "MAINTENANCE MODE". Use the buzzer
cancel switch to switch between the operating mode and maintenance mode.
For details of switching the mode, see "BUZZER CANCEL SWITCH (PAGE 3-20)".
OPERATING MODE (default screen)
Use this mode when operating the machine.
REMARK
When the starting switch is turned from the OFF position to the ON position, display panel B (multi-information)
always displays the operating mode.
The following information is displayed by the operating mode.

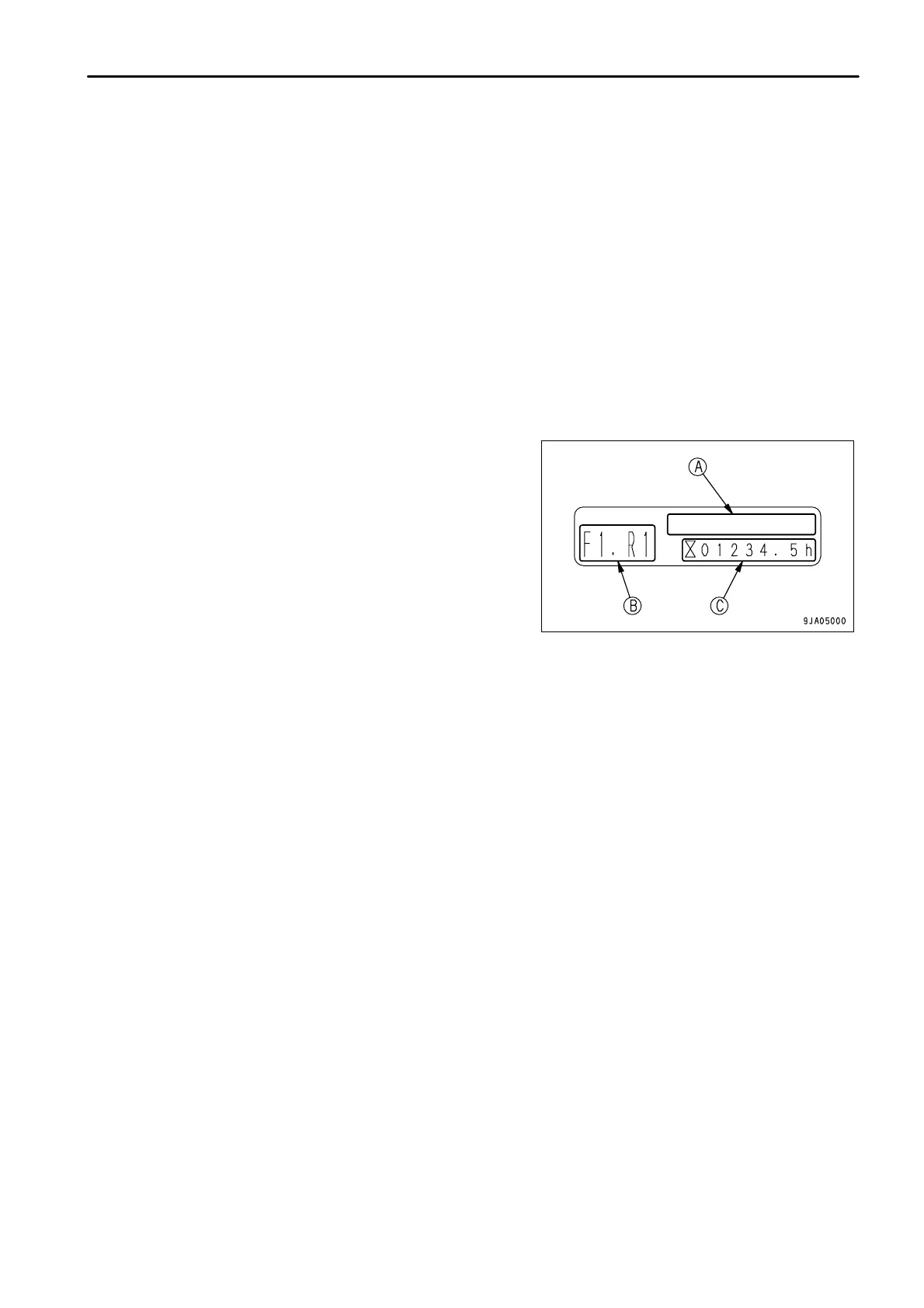

Top line (A): Action code
If any problem occurs on the machine, an action code
is displayed. If an action code appears, take the
applicable action. For details, see "OTHER
TROUBLE (PAGE 3-148).
This displays various types of filter or oil replacement
intervals have been reached.
Bottom line, left (B): Preset mode
When the preset mode switch is ON, the
selected preset mode is displayed.
For details of selecting the preset mode, see
"GEARSHIFTING OPERATION USING
PRESET MODE FUNCTION (PAGE 3-108)".
Bottom line, right (C): Service meter or engine speed
Use the information switch to switch the display between the service meter and engine speed.
For details of switching the display, see "INFORMATION SWITCH (PAGE 3-22)".
Service meter
This displays the total number of hours that the machine has been operated. Use the display
to determine the intervals for periodic maintenance.
While the engine is running, the service meter advances, even if the machine is not being
operated.
While the engine is running, the hourglass mark at the side of the meter flashes to show that
the meter is advancing.
The meter advances 0.1h for every 6 minutes that the engine is running, regardless of the
engine speed.
3 - 17
To Next Page
