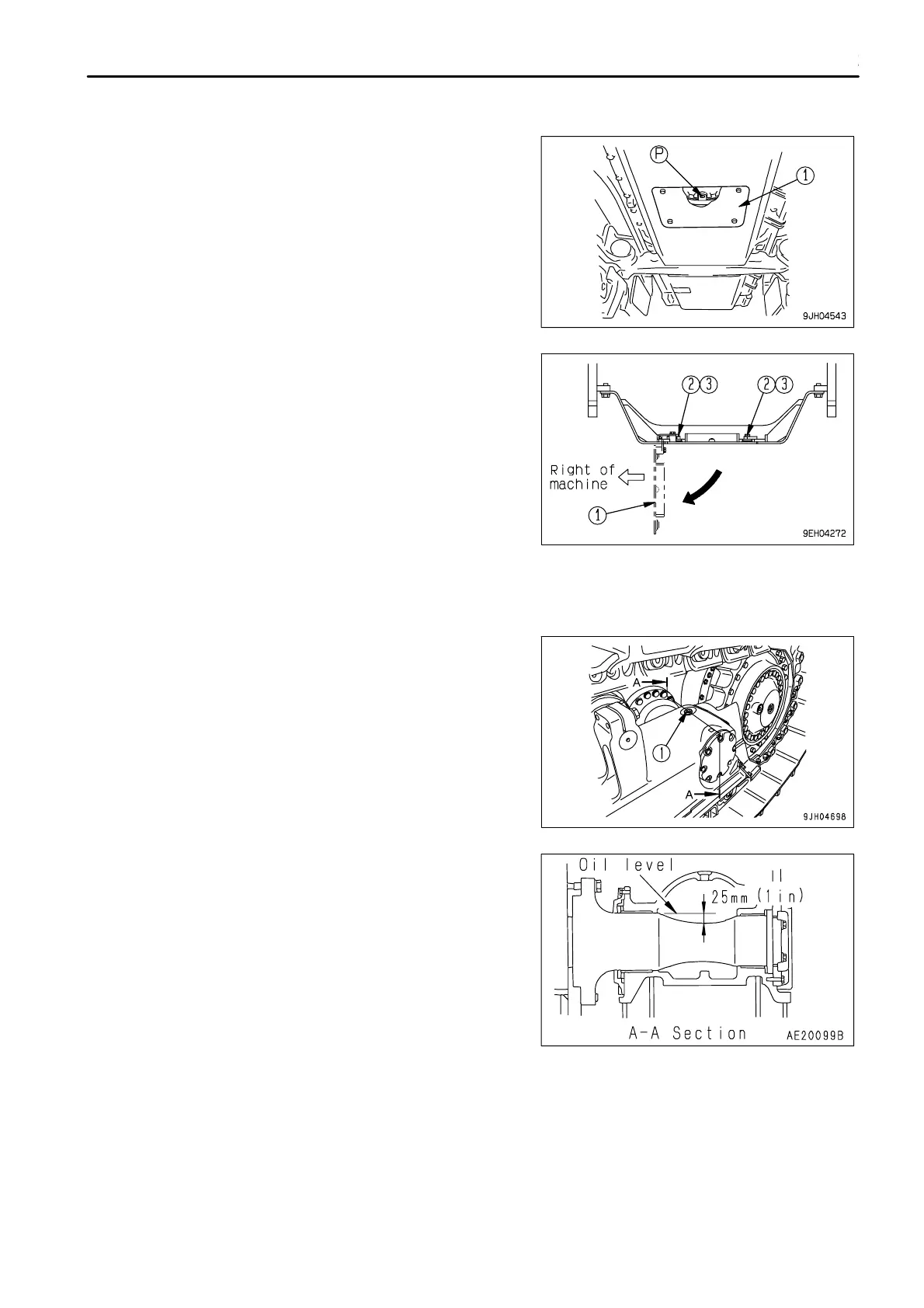

2. Remove the undercover (1) at the bottom rear of the chassis as
follows.
1)
Remove 2 bolts (2) at the Right of machine.
2) Hold cover (1) in position and gradually remove 2 bolts (3)
at the Left of machine. (Rain water may flow out when
doing this.)
3) Lower cover (1) slowly to open it. (There is a hinge on the
right side of the cover.)
Drain plug (P) can be seen at the top.
3. Remove dipstick (G), then remove drain plug (P) and drain the
oil.
After draining the oil,tighten drain plug (P).
4. Add oil through the holder of dipstick (G). After adding the oil,
insert dipstick (G).
5.
Wipe away dust around the breather (4).
6. Remove breather (4).
7.
Remove any dirt or dust stuck to breather (4), then wash with
clean diesel oil or flushing oil.If it cannot be cleaned
completely, replace with a new part.
8.
Install the breather (4).
9.
Then close cover (1).
CHECK PIVOT BEARING OIL LEVEL, ADD OIL
1.
Remove plug (1).
When removing plug (1), be careful not to let dirt or dust get it.
2. Check that the oil is at the level shown in the diagram. If the oil
level is low, add oil through the hole of plug (1).
Use class TO30 (SAE 30) engine oil regardless of the ambient
temperature.
4 - 65
