OPERATION
EXPLANATION OF COMPONENTS
METER GROUP
NOTICE
When the engine is stopped, turn that the starting switch to the ON position and check that the gauge or monitor for the engine
water temperature gauge, power train oil temperature gauge, and fuel gauge light up.
If they do not light up, please contact your Komatsu distributor for repairs.

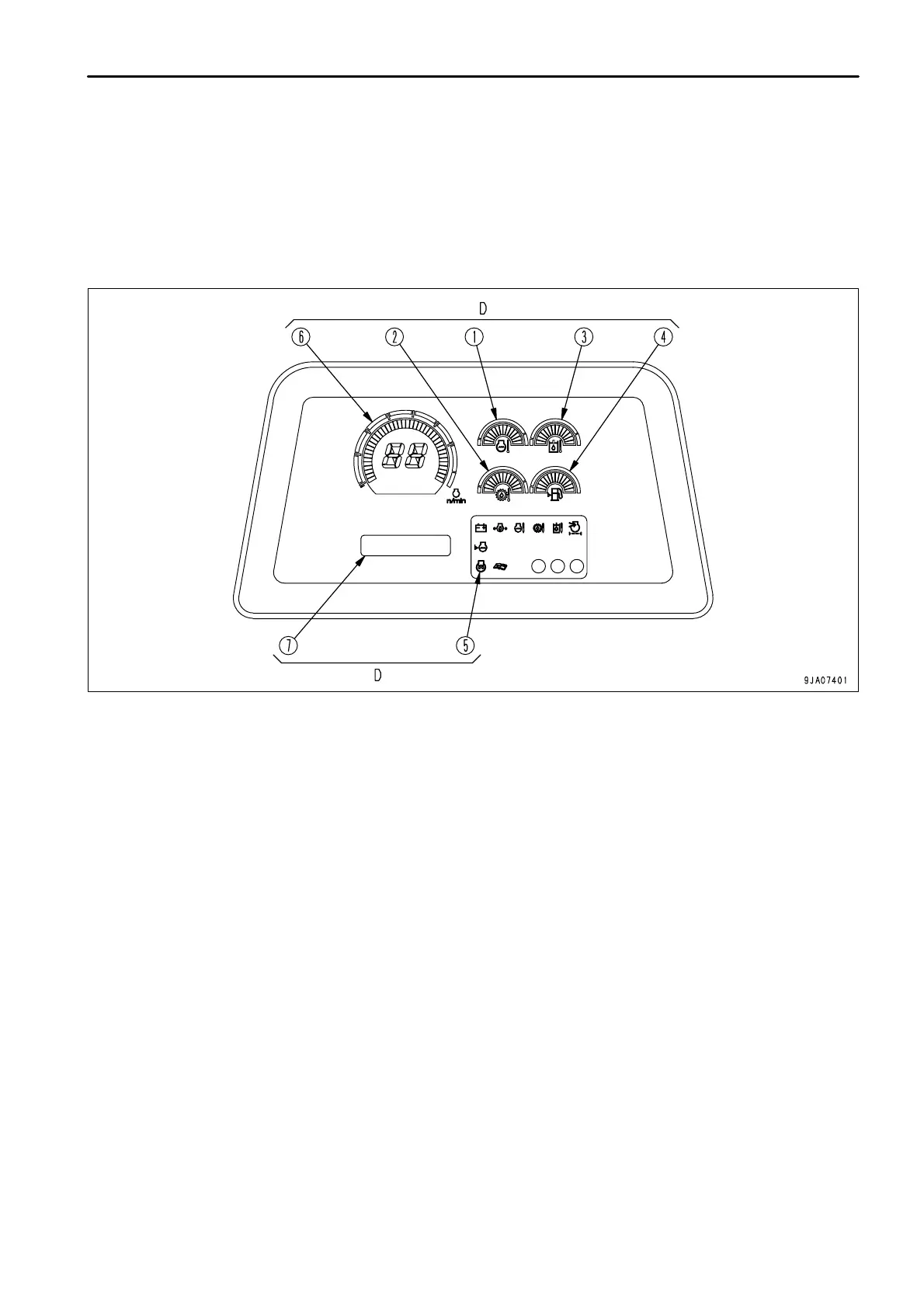

D(1)
D(2)
D(3)
D(4)
Engine coolant temperature gauge
Power train oil temperature gauge
Hydraulic oil temperature gauge
Fuel level gauge
D(5)
D(6)
D(7)
Engine pre-heating pilot lamp
Display panel A
(Speed range display, engine speed)
Display panel B (Multi-information)
