OPERATION
EXPLANATION OF COMPONENTS

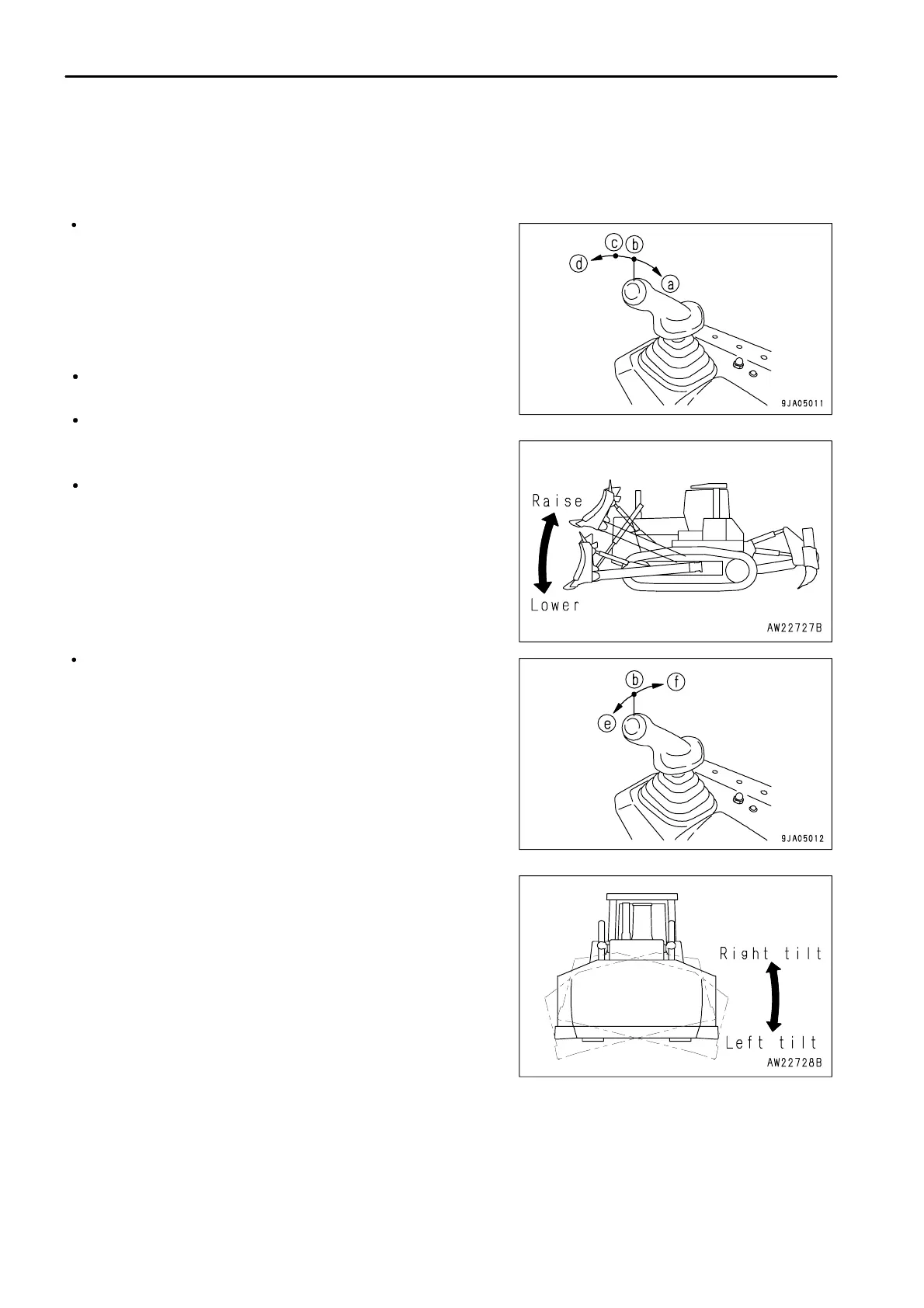

BLADE CONTROL LEVER
FOR POWER TILT DOZER
This lever (6) is used to lift or tilt the blade.
Lifting control
(a) RAISE:
(b) HOLD: Blade is stopped and held in this position.
(c) LOWER:
(d) FLOAT: Blade will move freely according to external force.
REMARK
If the lever is in the FLOAT position, even when it is released,
it does not return to the HOLD position, so return it by hand.
If the engine is stopped when the control lever is in the FLOAT
position, the lever is returned automatically to the HOLD
position.
In low temperatures, it may take a short time for the blade
control lever to be held in the FLOAT position, so hold the lever
in position for at least 1 second.
Tilting control
(b) HOLD: Blade is stopped and held in this position.
(e) LEFT TILT
(f) RIGHT TILT
3 - 42
