Adjustment

bizhub PRO 1050P 9-21

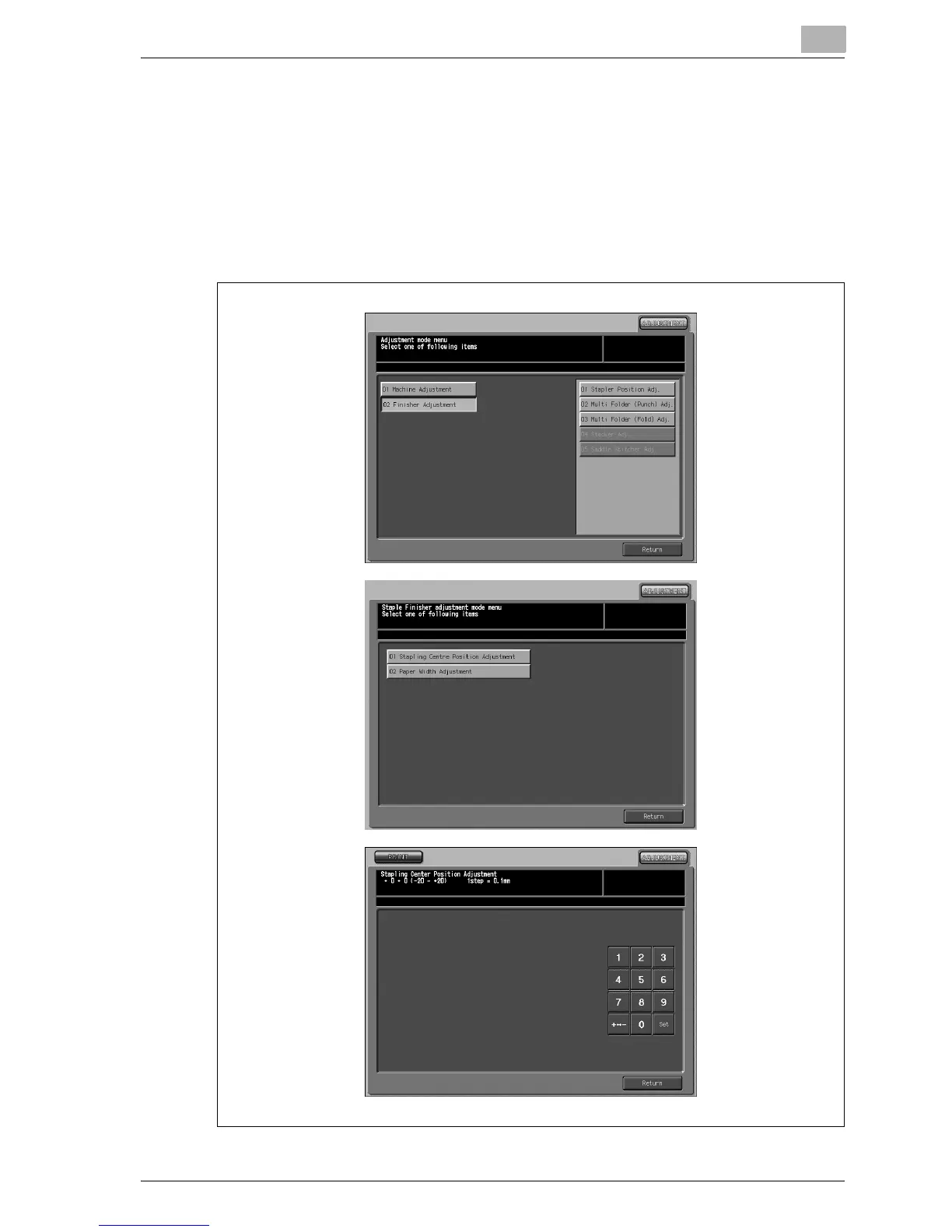

9.9 01 Stapler Position Adjustment

9.9.1 01 Stapling Centre Position Adjustment

Perform this adjustment for the centre position of printed sheets and of sta-

ples processed by the FS-503 Staple Finisher.

The paper width adjustment is supposed to be completed before this adjust-

ment.

Default Chapter3
