Machine Manager Setting

13-98 bizhub PRO 1050P

13.6.4 04 Fixing Prerotation Set

The fixing heat adjustment may be necessary as altering the paper type and

the weight. The machine rotates the fixing roller before printing starts in order

to print at the appropriate temperature for the specific paper type and the

weight.

Procedure

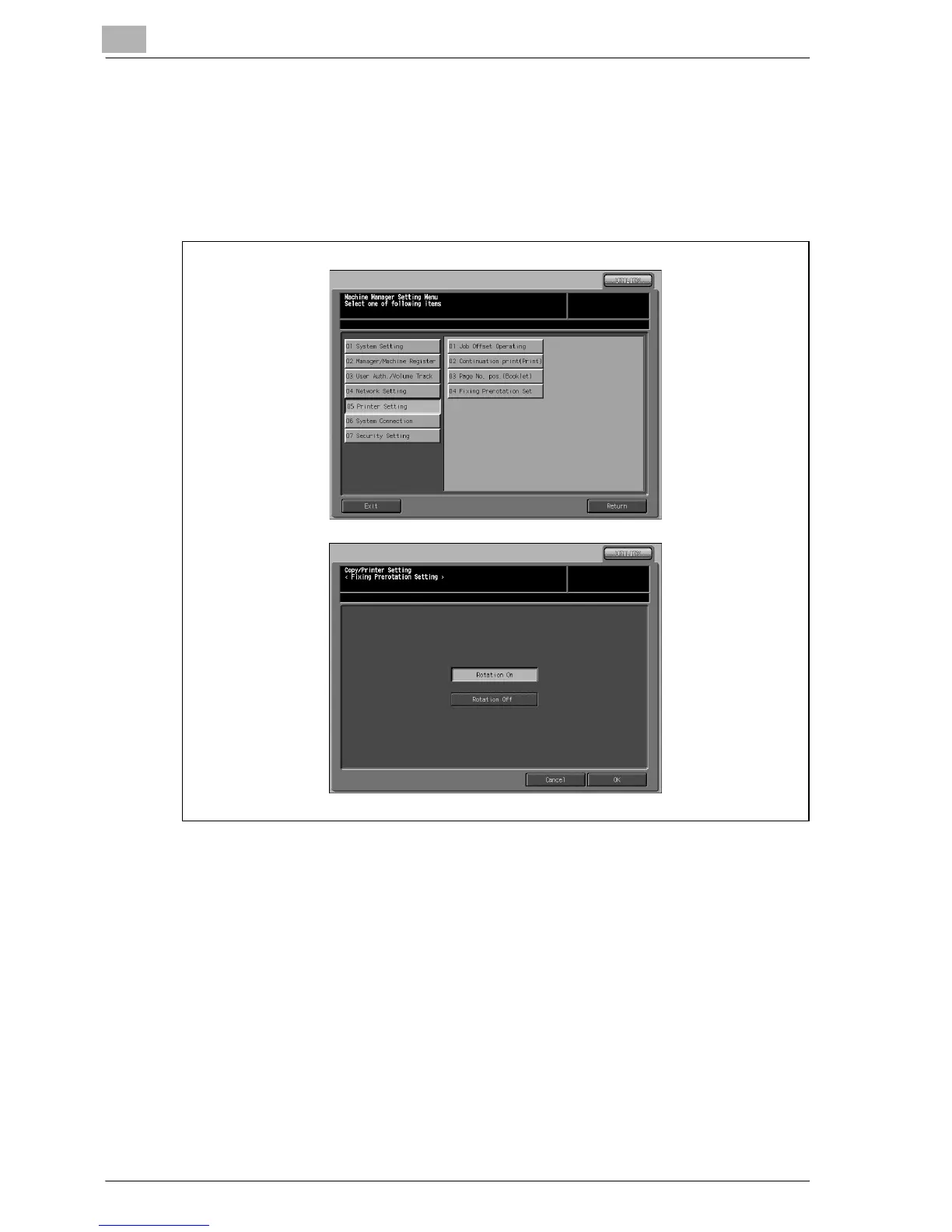

1 Touch [05 Copy/Printer Setting - [04 Fixing Prerotation Set.

2 Touch [Rotation On] or [Rotation Off] to highlight it.

3 Touch [OK] to complete the setting and return to the Machine Manager

Setting Menu Screen.
