Supplies & Handling

4-12 bizhub PRO 1050P

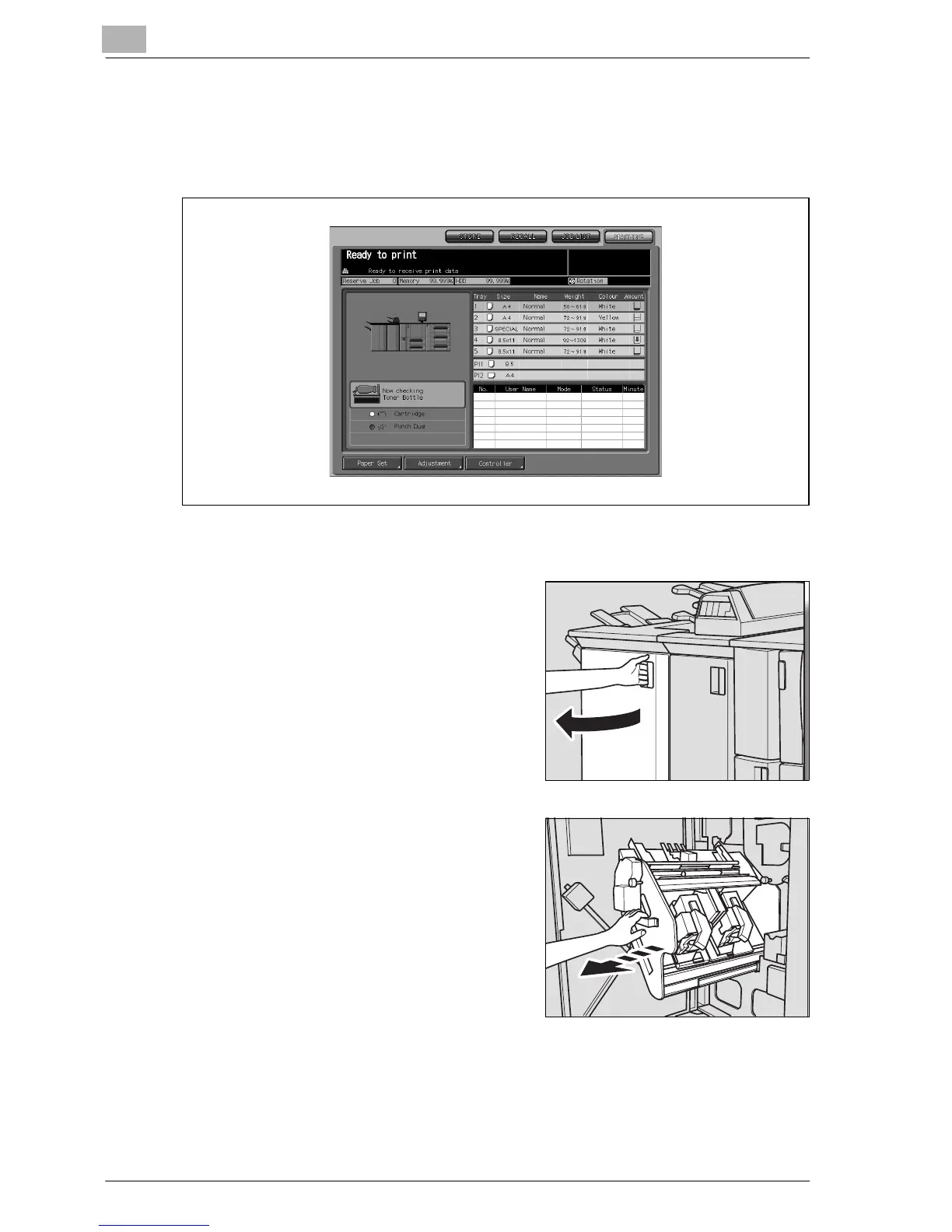

4.3 Inserting a New Staple Cartridge into FS-503 Finisher

When the staple cartridge of the Finisher is empty, the Cartridge indicator

lights in red in the option status area of the Machine Status Screen.

Follow the procedure below to set the staple roll into the staple cartridge.

1 Open the Finisher door.

2 Pull out the stapler unit slowly by

holding the stapler unit handle until it

stops.
