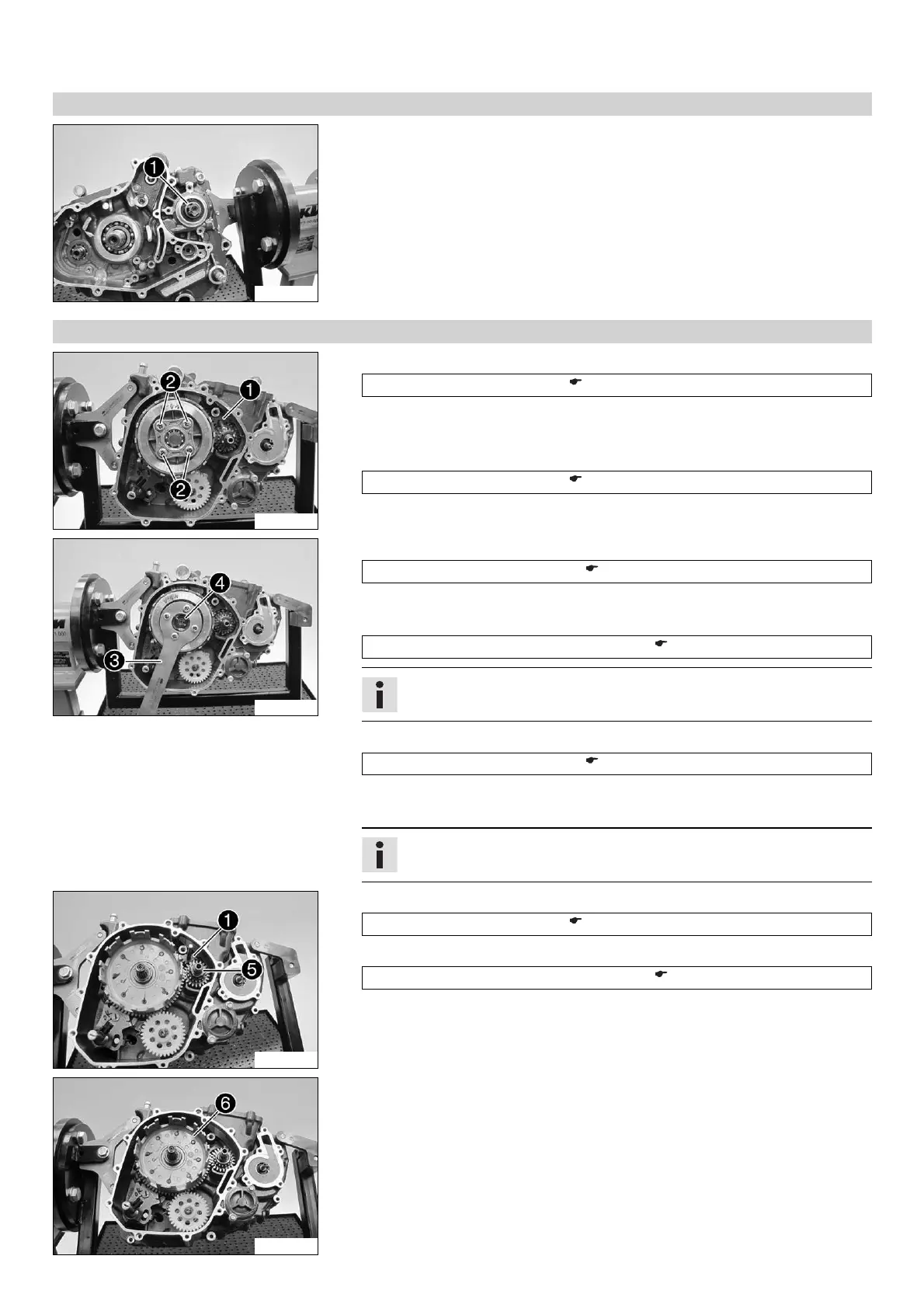

KTM 200 DUKE EU Repair Manual

16 ENGINE 99
16.3.19 Removing the spacer (125 Duke)
304773-10
– Remove the spacer 1 of the countershaft.
16.3.20 Removing the clutch basket (125 Duke)
304774-10
– Lock the clutch basket and primary gear using special tool 1.
Gear segment (90129081100) ( p. 259)
– Remove screws 2.
– Remove the release bearing holder and clutch springs.
– Remove the special tool.
Gear segment (90129081100) ( p. 259)
304775-10
– Mount special tool 3.
Holding spanner (90129012000) ( p. 256)
– Hold the inner clutch hub with the special tool.
– Remove nut 4 with washer.
Castle nut wrench; ½" drive (90129021000) ( p. 257)
Info
Left-handed thread!
– Remove the special tool.
Holding spanner (90129012000) ( p. 256)
– Remove the inner clutch hub with the clutch discs.
– Remove the washer.
Info
The washer usually sticks to the inner clutch hub.
304776-10
– Lock the clutch basket and primary gear using special tool 1.
Gear segment (90129081100) ( p. 259)
– Remove nut 5 with washer.
Castle nut wrench; ½" drive (90129021000) ( p. 257)
304777-10
– Take off clutch basket 6.
