16 ENGINE 111

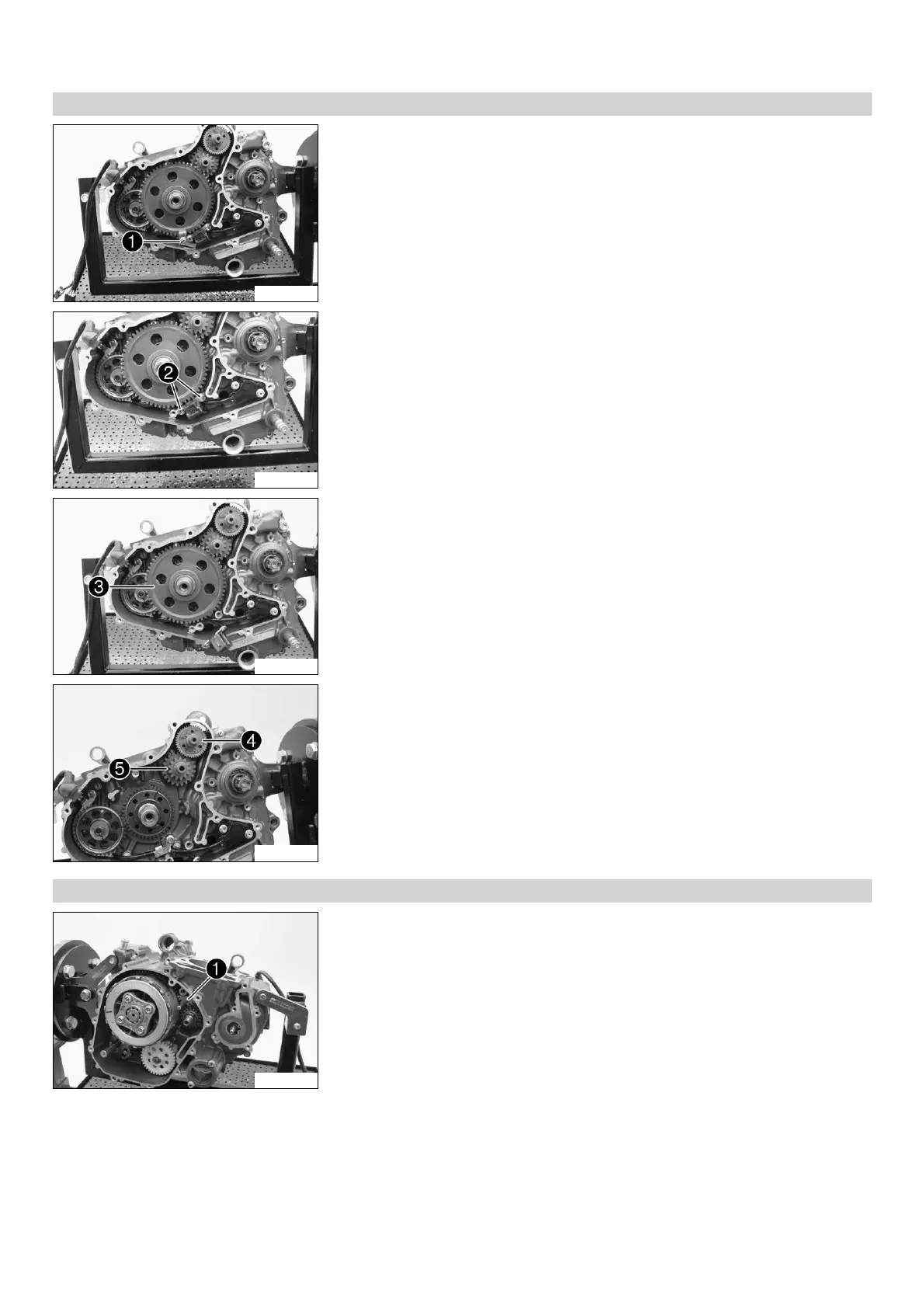

16.3.49 Removing the starter drive (200 Duke)

305845-10

– Remove screw 1.

– Remove the retaining bracket.

305846-10

– Remove screws 2.

– Hang the ignition pulse generator to one side.

305847-10

– Remove freewheel gear 3.

305848-10

– Take off torque limiter 4.

– Remove starter idler gear 5.

16.3.50 Removing the balancer shaft drive wheel (200 Duke)

305849-10

– Lock the clutch basket and primary gear using special tool 1.
