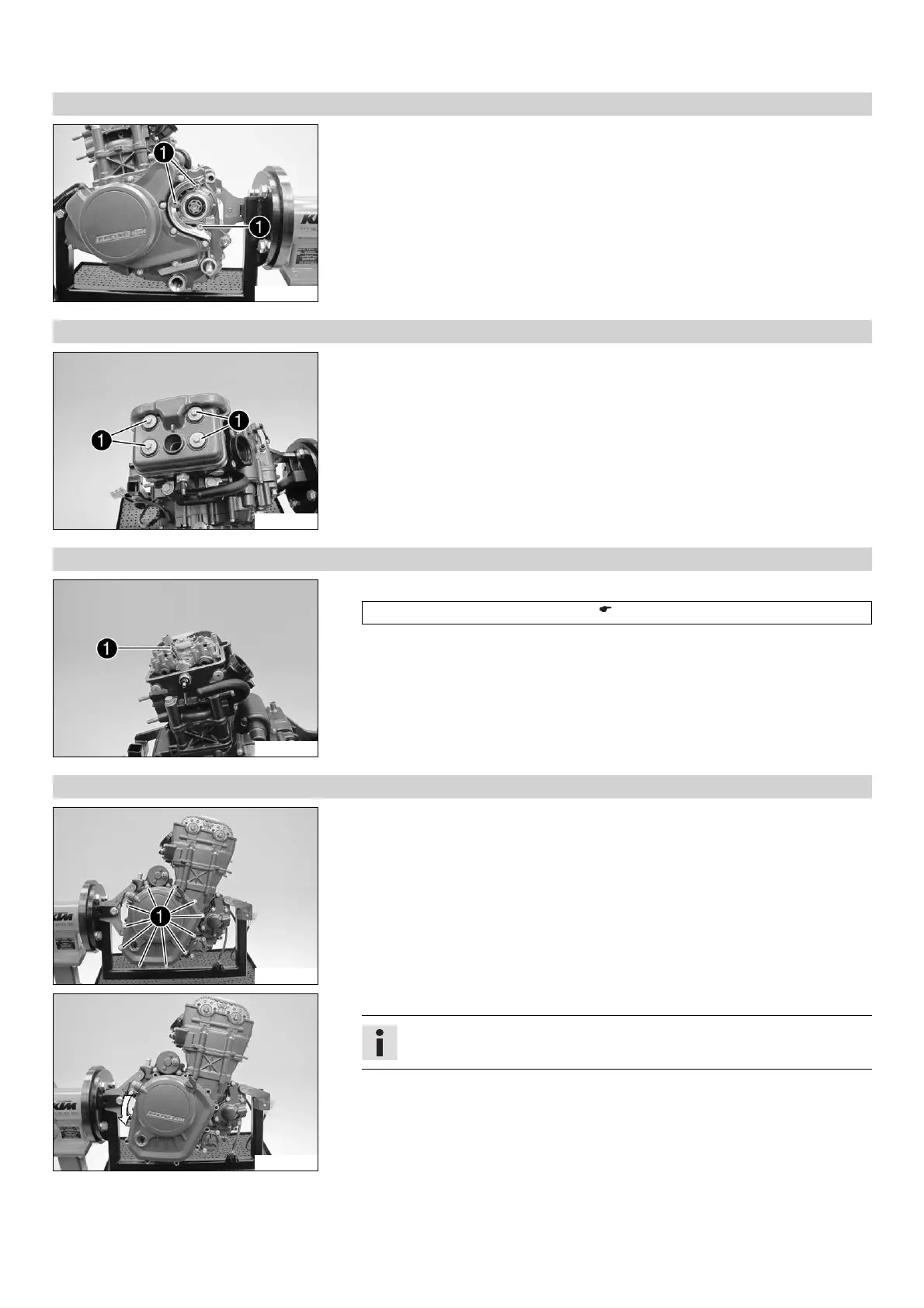

16 ENGINE 91

16.3.3 Removing the chain securing guide (125 Duke)

304422-10

– Remove screws 1.

– Take off the chain securing guide.

16.3.4 Removing the valve cover (125 Duke)

304729-10

– Remove screws 1 with the gasket.

– Take off the valve cover with the valve cover seal.

16.3.5 Removing the spark plug (125 Duke)

304730-10

– Remove the spark plug using special tool 1.

Spark plug wrench (77229172000) ( p. 255)

16.3.6 Removing the clutch cover (125 Duke)

304731-10

– Remove screws 1.

304732-10

– Take off the clutch cover.

Info

Pull the clutch lever forward slightly.
