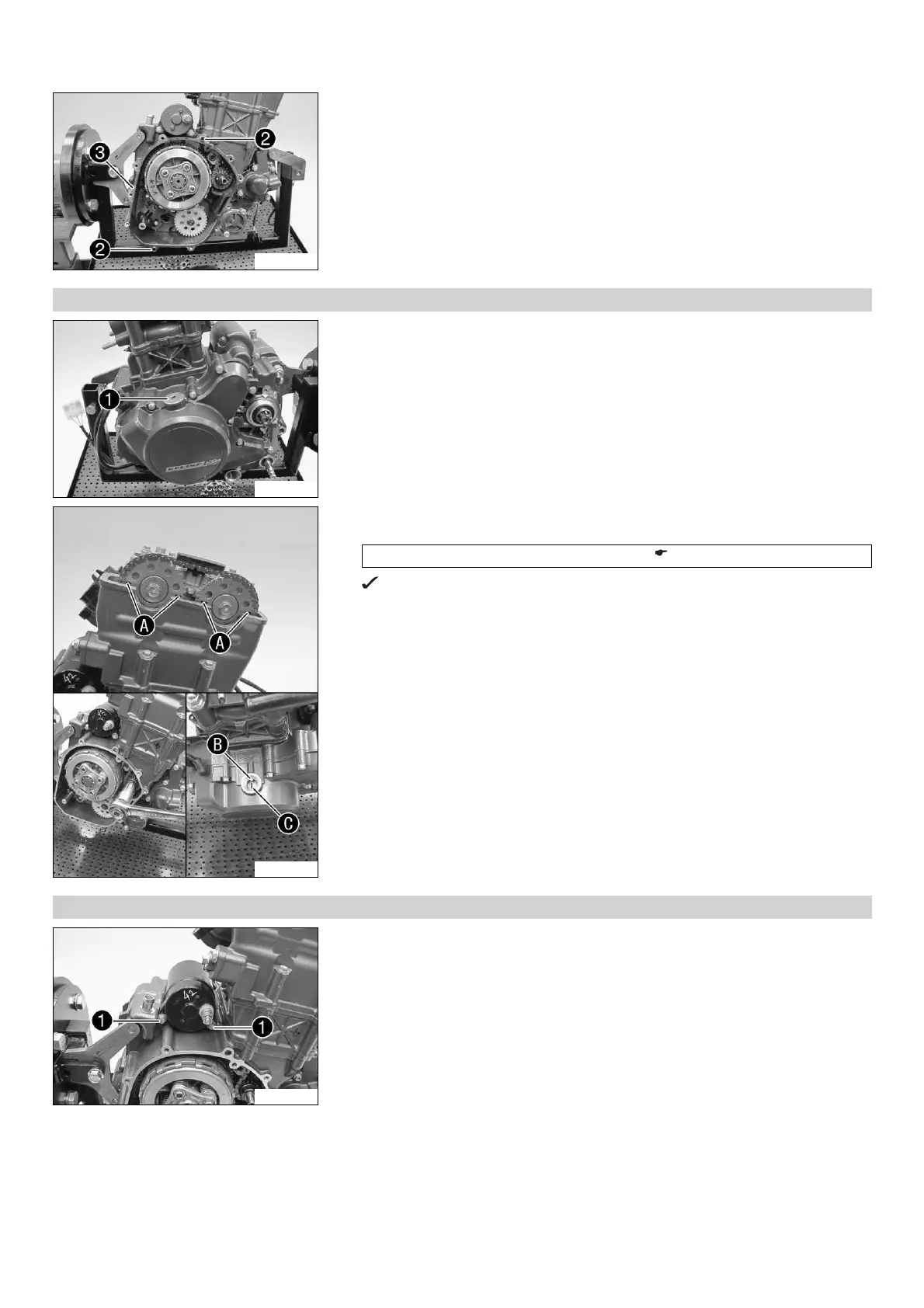

16 ENGINE 92

304733-10

– Remove dowels 2.

– Take off clutch cover gasket 3.

16.3.7 Setting the engine to ignition top dead center (125 Duke)

304734-10

– Remove screw plug 1.

304429-10

– Turn the crankshaft counterclockwise until markings A align with the edge of the

cylinder head.

Castle nut wrench; ½" drive (90129021000) ( p. 257)

Markings B and C align.

16.3.8 Removing the starter motor (125 Duke)

304434-10

– Remove screws 1.

– Take off the starter motor.
