12 WHEELS 60
C00198-10

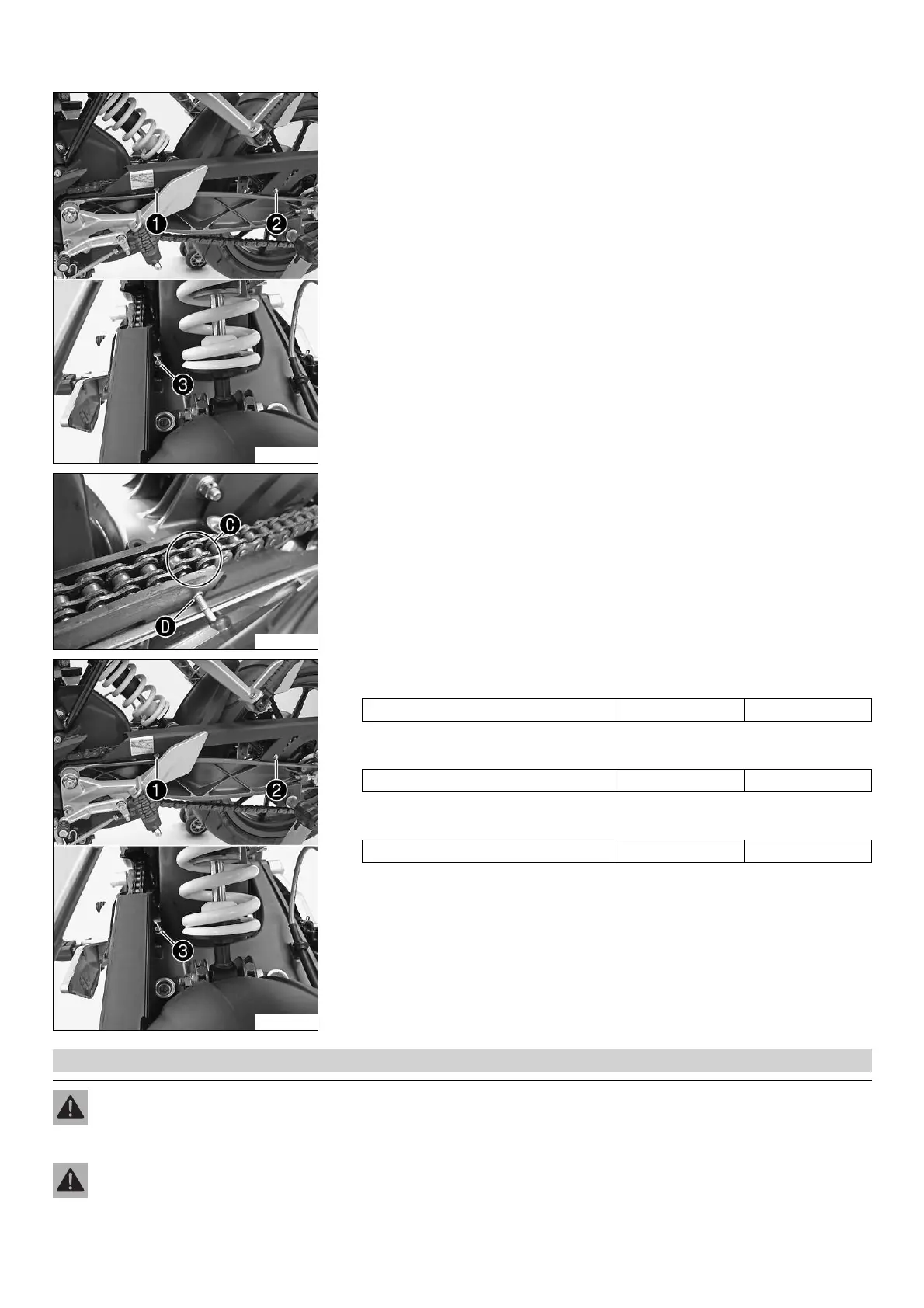

– Remove screws 2 and 3 and release screw 1. Push the chain guard aside.
C00199-10
– Check the chain sliding guard for wear.
» If drill hole D becomes visible on the chain sliding guard in area C:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
C00198-10
– Position the chain guard and tighten screw 1.
Guideline
Screw, chain guard EJOT PT
®
4 Nm (3 lbf ft)
– Tighten screw 2.
Guideline
Screw, chain guard EJOT PT
®
4 Nm (3 lbf ft)
– Tighten screw 3.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
12.5.8 Cleaning the chain
Warning
Danger of accidents Oil or grease on the tires reduces their grip.
– Remove oil and grease with a suitable cleaning material.
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
