14 BRAKE SYSTEM 69
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container.
C00201-10

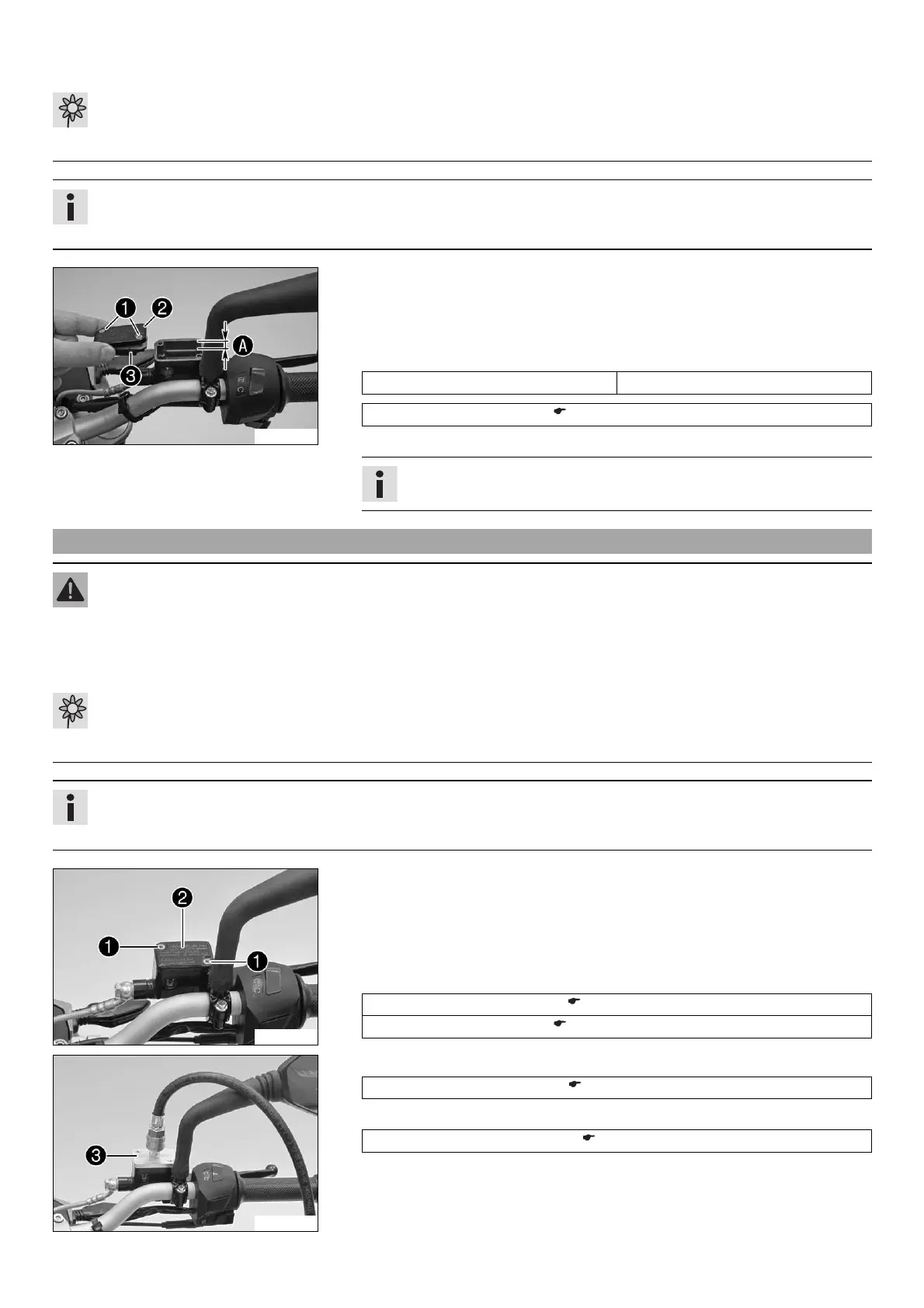

– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Add brake fluid to level A.
Guideline
Level A 5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 248)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
14.5 Changing the front brake fluid
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container.
201524-10
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Cover the painted parts.
– Remove screws 1.
– Remove cover 2 with membrane.
– Draw the old brake fluid out of the brake fluid reservoir using a syringe and fill with
fresh brake fluid.
Bleed syringe (50329050000) ( p. 252)
Brake fluid DOT 4 / DOT 5.1 ( p. 248)
201525-10
– Mount the corresponding bleeder cover 3 from the special tool set.
Bleeder cover (00029013000) ( p. 252)
– Connect the bleeding device.
Bleeding device (00029013100) ( p. 252)
