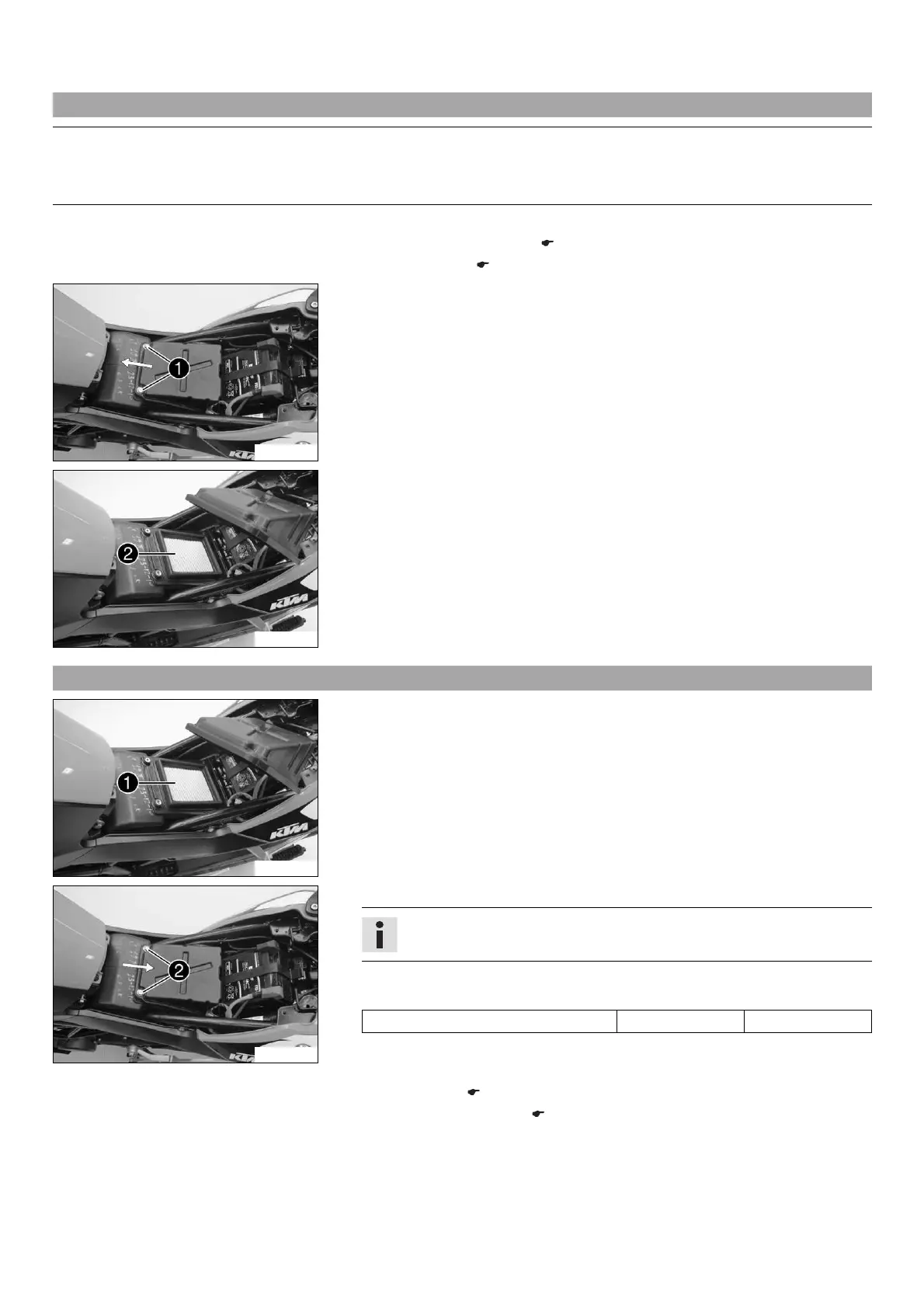

10 AIR FILTER 37
10.1 Removing the air filter
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Preparatory work
– Remove the passenger seat. ( p. 39)
– Remove the seat. ( p. 38)
304818-10
Main work
– Remove screws 1.
– Pull the air filter box lid forward and move to the side.
304819-10
– Remove air filter 2.
– Clean the air filter box.
10.2 Installing the air filter
304819-11
Main work
– Position air filter 1.
304818-11
– Mount air filter box lid.
Info
Make sure the air filter box lid is seated correctly.
– Mount and tighten screws 2.
Guideline
Screw, air filter box M6 6 Nm (4.4 lbf ft)
Finishing work
– Mount the seat. ( p. 39)
– Mount the passenger seat. ( p. 39)
