KTM 200 DUKE EU Repair Manual

16 ENGINE 167

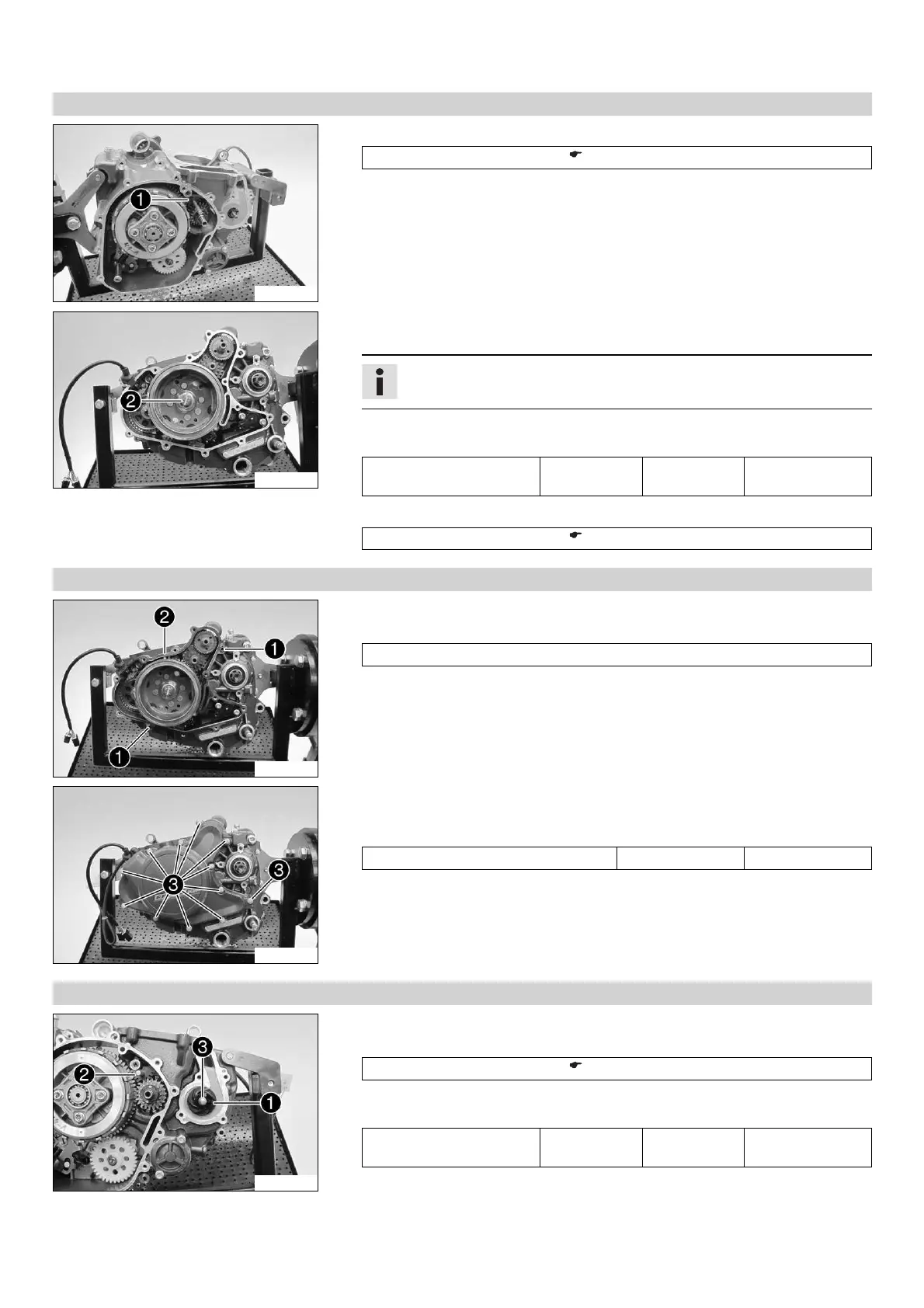

16.5.19 Installing the rotor (125 Duke)
304756-10
– Lock the clutch basket and primary gear using special tool 1.
Gear segment (90129081100) ( p. 259)
304757-10
– Mount the spring washer.
– Mount the rotor.
Info
Turn the freewheel gear counterclockwise to simplify assembly.
– Mount and tighten screw 2.
Guideline
Rotor screw M10 46 Nm
(33.9 lbf ft)
Loctite
®
243™
– Remove the special tool.
Gear segment (90129081100) ( p. 259)
16.5.20 Installing the alternator cover (125 Duke)
304755-11
– Mount the dowels 1.
– Seal the cable guide.
Loctite
®
5910
– Mount the alternator cover gasket 2.
304754-11
– Position the alternator cover.
– Install the screws 3 and tighten them diagonally.
Guideline
Screw, alternator cover M6 12 Nm (8.9 lbf ft)
16.5.21 Installing the water pump cover (125 Duke)
304749-11
– Mount water pump impeller 1.
– Lock the clutch basket and primary gear using special tool 2.
Gear segment (90129081100) ( p. 259)
– Mount and tighten nut 3 with the washer.
Guideline
Nut, water pump impeller M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
