KTM 200 DUKE EU Repair Manual

16 ENGINE 188
305820-11

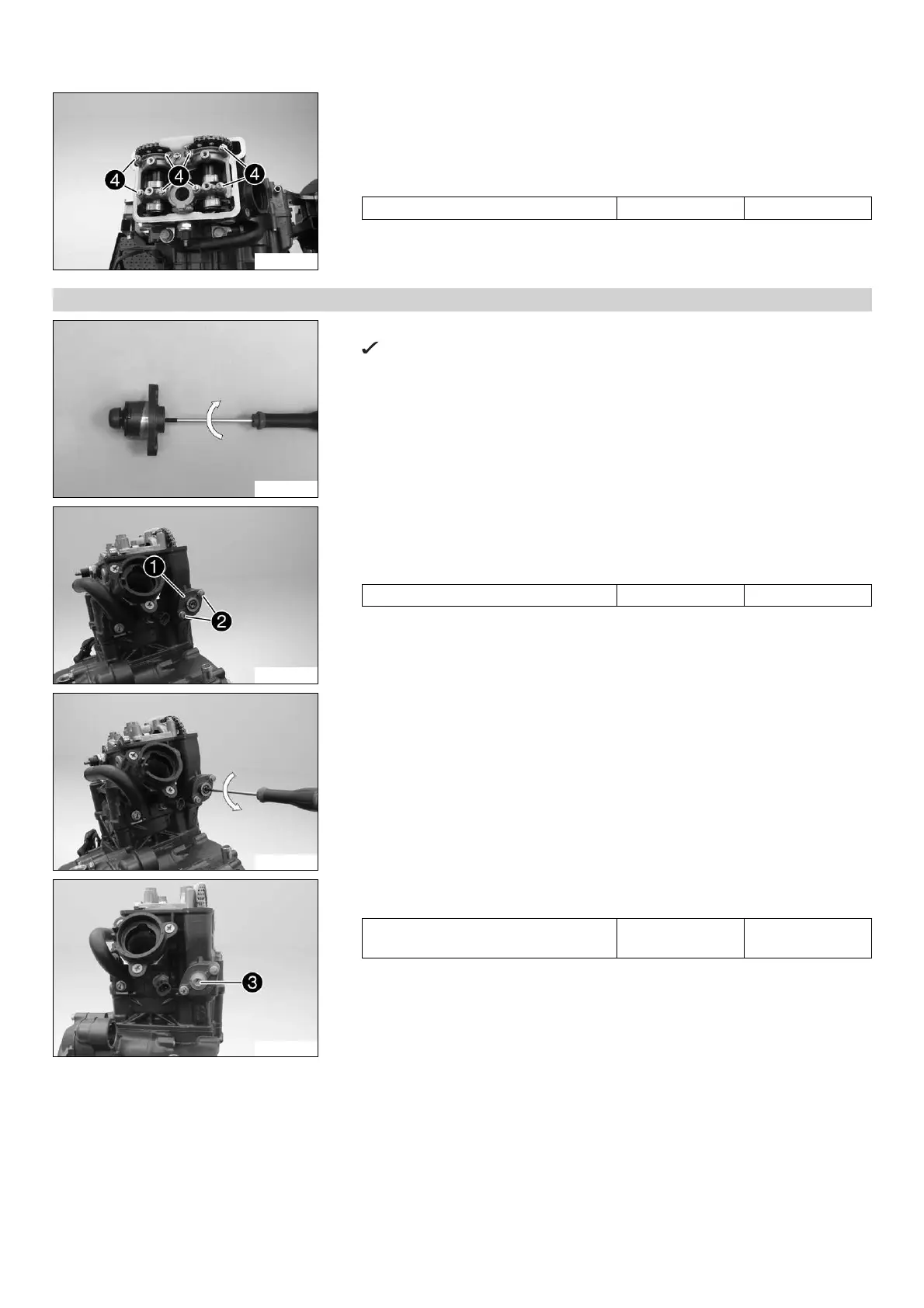

– Clean all oil nozzles thoroughly and blow out with compressed air.
– Mount the dowels.
– Position the camshaft bearing bridge.
– Mount screws 4 and tighten from the inside to the outside.
Guideline
Screw, camshaft bearing bridge M6 11 Nm (8.1 lbf ft)
16.5.59 Installing the timing chain tensioner (200 Duke)
304804-10
– Turn the timing chain tensioner screw clockwise.
The timing chain tensioner is locked.
305818-10
– Holding it with the correct orientation, mount the timing chain tensioner 1 with
the gasket.
– Mount and tighten screws 2.
Guideline
Screw, timing chain tensioner M6 12 Nm (8.9 lbf ft)
305817-10
– Unlock the timing chain tensioner screw counterclockwise.
– Check the timing chain tension.
305813-11
– Mount and tighten screw 3 with the O-ring.
Guideline
Screw, unlocking of timing chain ten-
sioner
M6 10 Nm (7.4 lbf ft)
