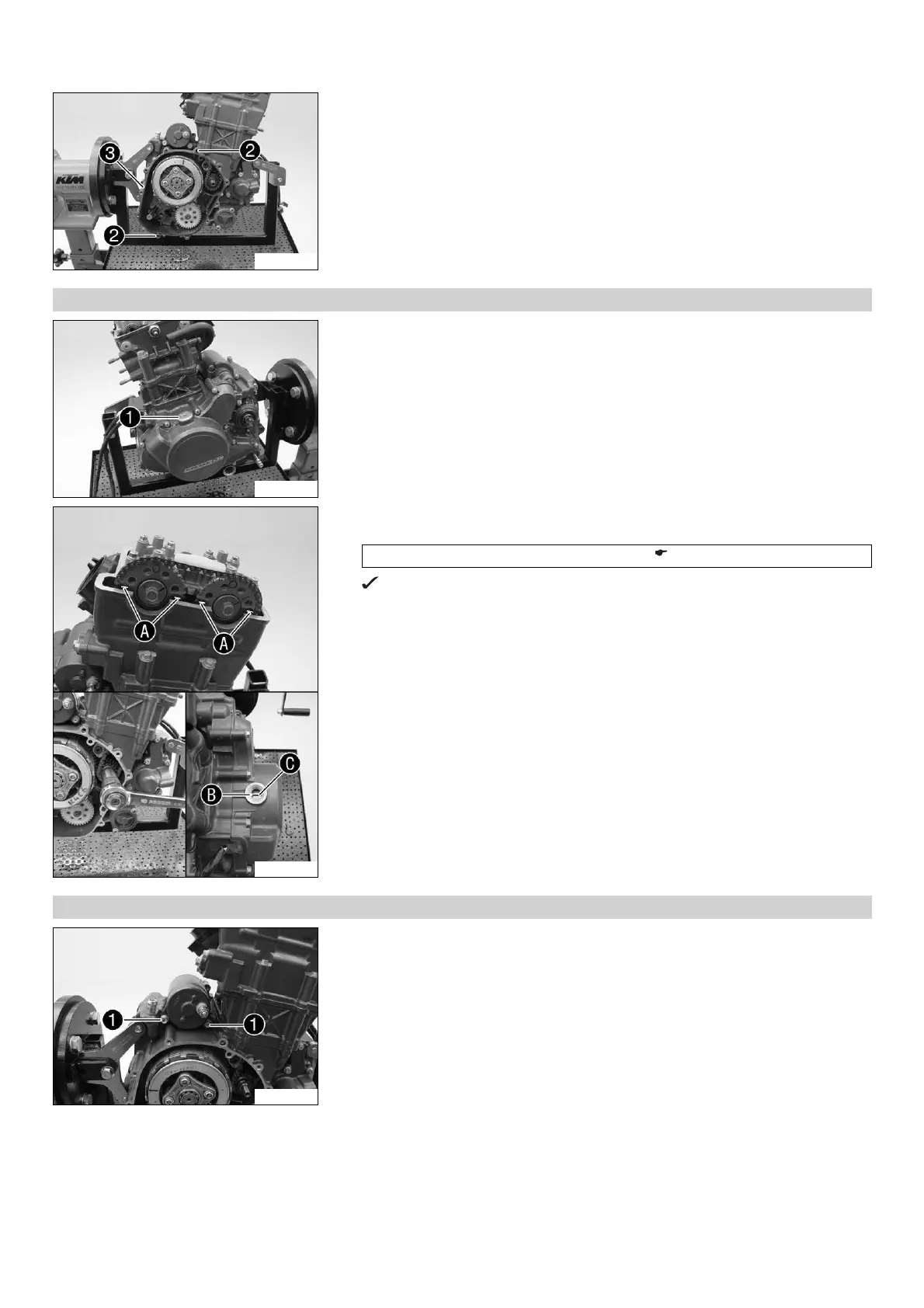

16 ENGINE 106

305809-10

– Remove dowels 2.

– Take off clutch cover gasket 3.

16.3.40 Setting the engine to ignition top dead center (200 Duke)

305810-10

– Remove screw plug 1.

305811-10

– Turn the crankshaft counterclockwise until markings A align with the edge of the

cylinder head.

Castle nut wrench; ½" drive (90129021000) ( p. 257)

Markings B and C align.

16.3.41 Removing the starter motor (200 Duke)

305812-10

– Remove screws 1.

– Take off the starter motor.
