KTM 200 DUKE EU Repair Manual

16 ENGINE 152

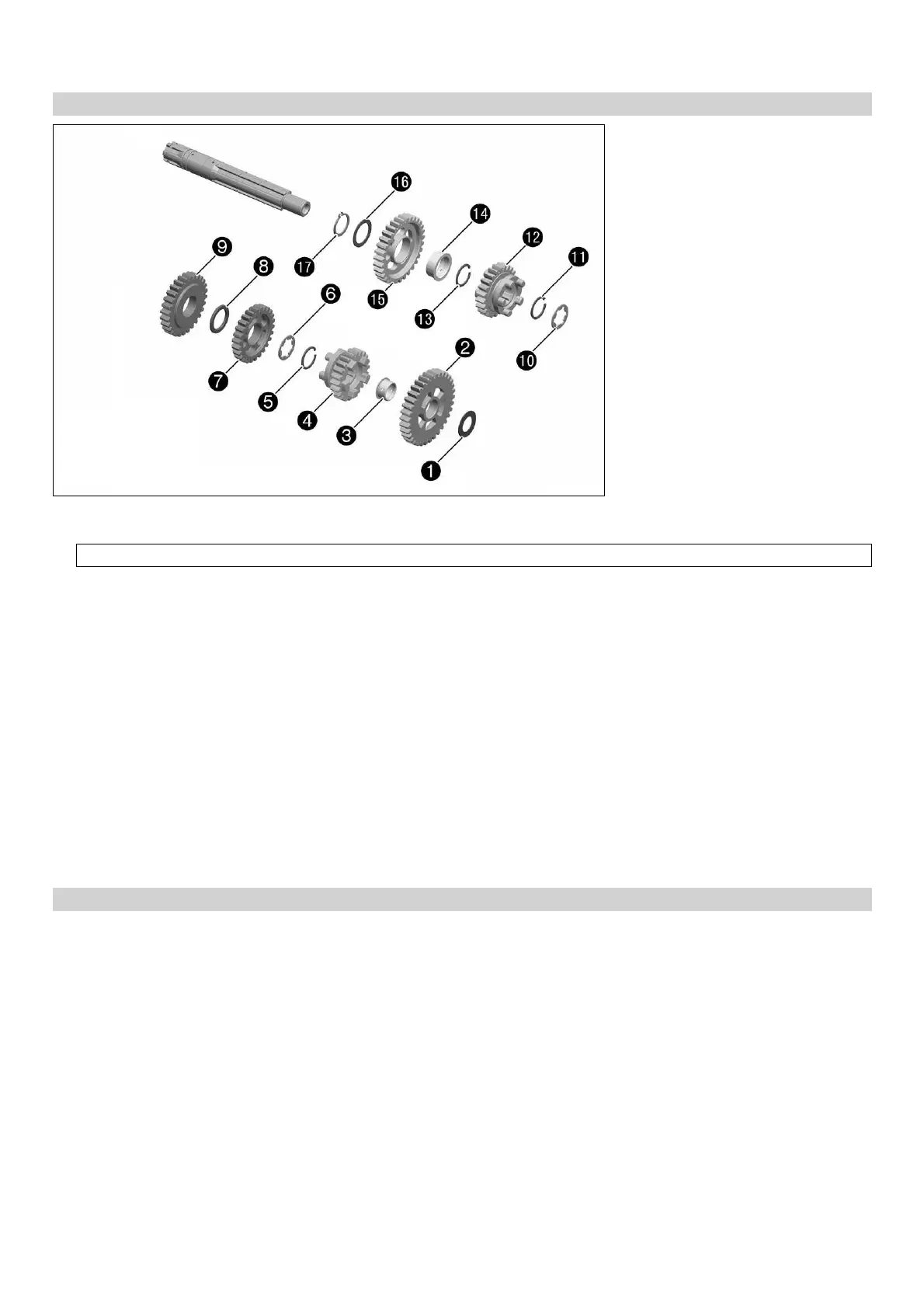

16.4.51 Dismantling the countershaft (200 Duke)
305900-10
– Fix the countershaft in the vise with the geared end facing downward.
Guideline
Use soft jaws
– Remove stop disk 1 and the 1st-gear idler gear 2.
– Remove collar bushing 3.
– Remove the 6th-gear sliding gear 4.
– Remove lock ring 5.
– Remove stop disk 6.
– Remove the 3rd-gear idler gear 7.
– Remove washer 8.
– Remove the 4th-gear idler gear 9.
– Remove stop disk bk and lock ring bl.
– Remove 5th-gear sliding gear bm.
– Remove lock ring bn.
– Remove collar bushing bo.
– Remove the 2nd-gear idler gear bp.
– Remove stop disk bq and lock ring br.
16.4.52 Checking the transmission (200 Duke)
Condition
The transmission has been disassembled.
