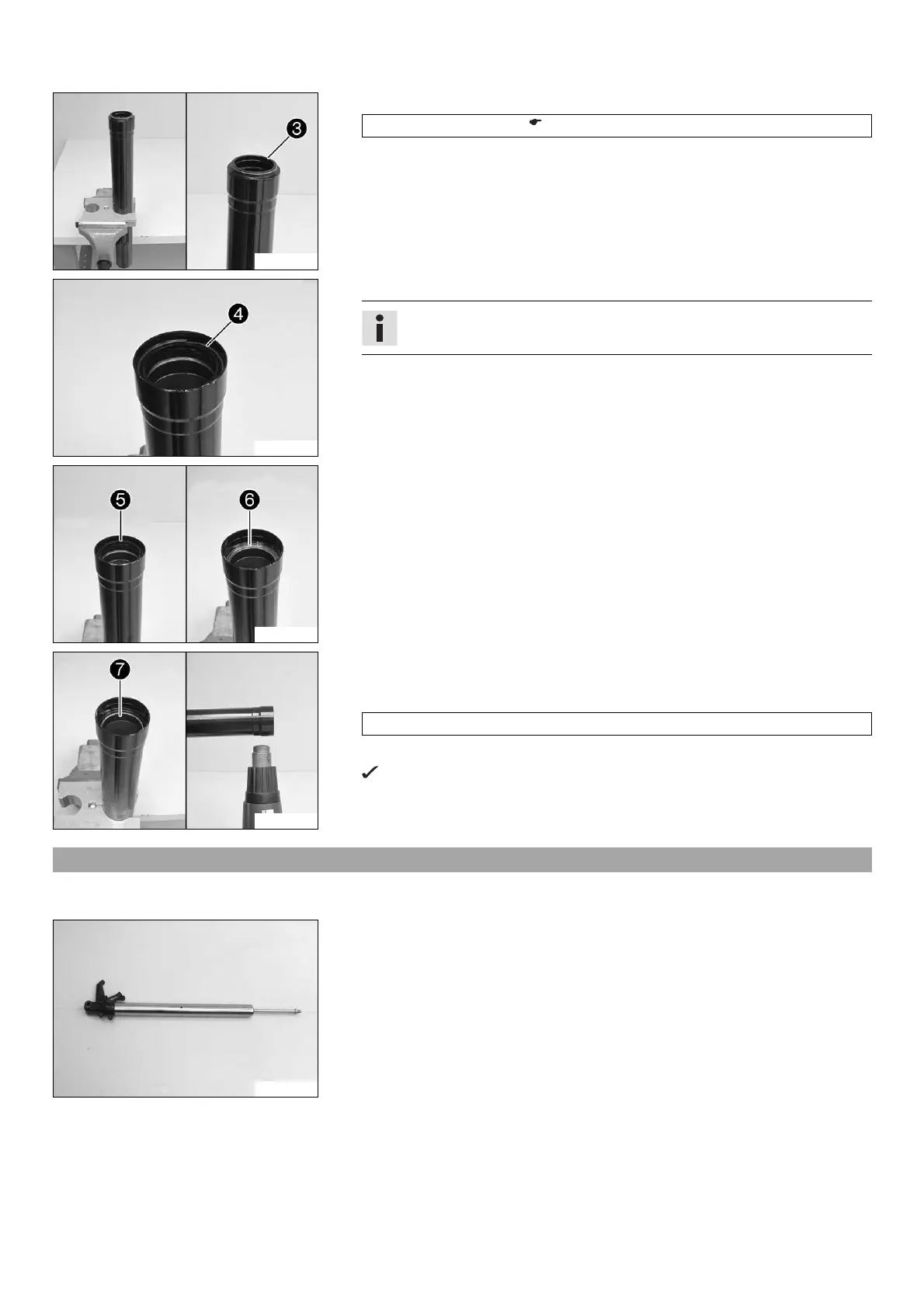

6 FORK, TRIPLE CLAMP 19
201512-10
– Clamp the outer tube in the area of the lower triple clamp.
Clamping stand (T612S) ( p. 260)
– Remove dust boot 3.
201513-10
– Remove lock ring 4.
Info
The lock ring has a beveled end where a screwdriver can be applied.
201514-10
– Remove seal ring 5. Remove support ring 6.
201515-10
– Unclamp the outer tube.
– Heat up the outer tube in the area of sliding bushing 7.
Guideline
50 °C (122 °F)
– Strike the lower edge of the outer fork tube on a wooden board.
Sliding bushing 7 must fall out of its seat.
6.5 Checking the fork legs
Condition
The fork legs have been disassembled.
201516-10
– Check the inner tube and the axle clamp for damage.
» If damage is found:
– Change the fork leg.
