16 ENGINE 156
16.4.55 Checking the timing assembly (200 Duke)
304529-10

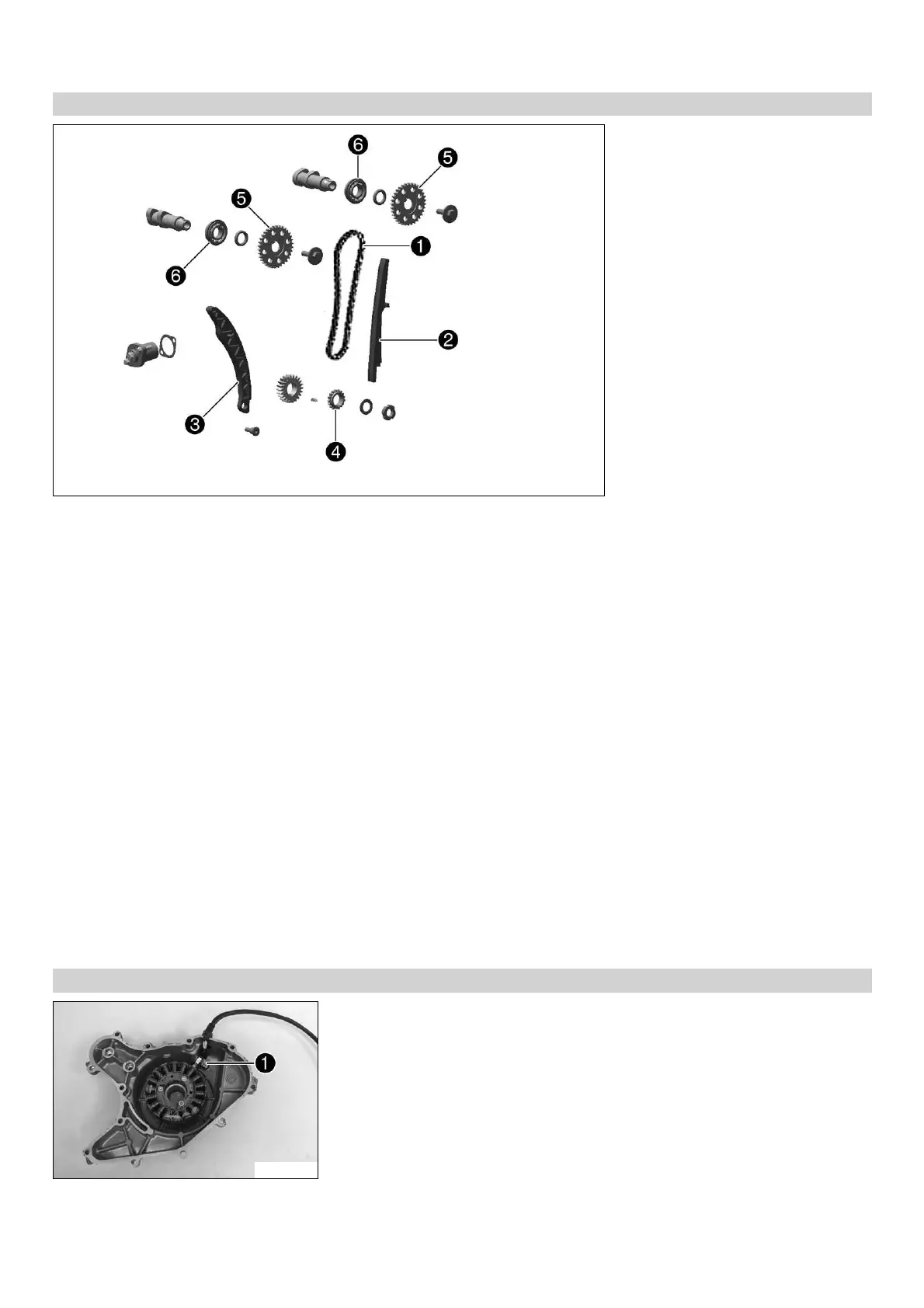

– Check timing chain 1 for damage and wear.
» If there is damage or wear:
– Change the timing chain.
– Let the timing chain hang down freely. Check that the timing chain links move easily.
» If the chain links no longer straighten out:
– Change the timing chain.
– Check timing chain guide rail 2 for damage and wear.
» If there is damage or wear:
– Change the timing chain guide rail.
– Check timing chain tensioning rail 3 for damage and wear.
» If there is damage or wear:
– Change the timing chain tensioning rail.
– Check timing chain sprocket 4 for damage and wear.
» If there is damage or wear:
– Change the timing chain sprocket.
– Check camshaft gears 5 for damage and wear.
» If there is damage or wear:
– Change the camshaft gears.
– Check camshaft bearing 6 for damage and wear.
» If there is damage or wear:
– Change the camshaft bearing.
16.4.56 Changing the stator (200 Duke)
304553-10
– Remove screw 1.
– Remove the cable retainer.
