16 ENGINE 116
305877-10

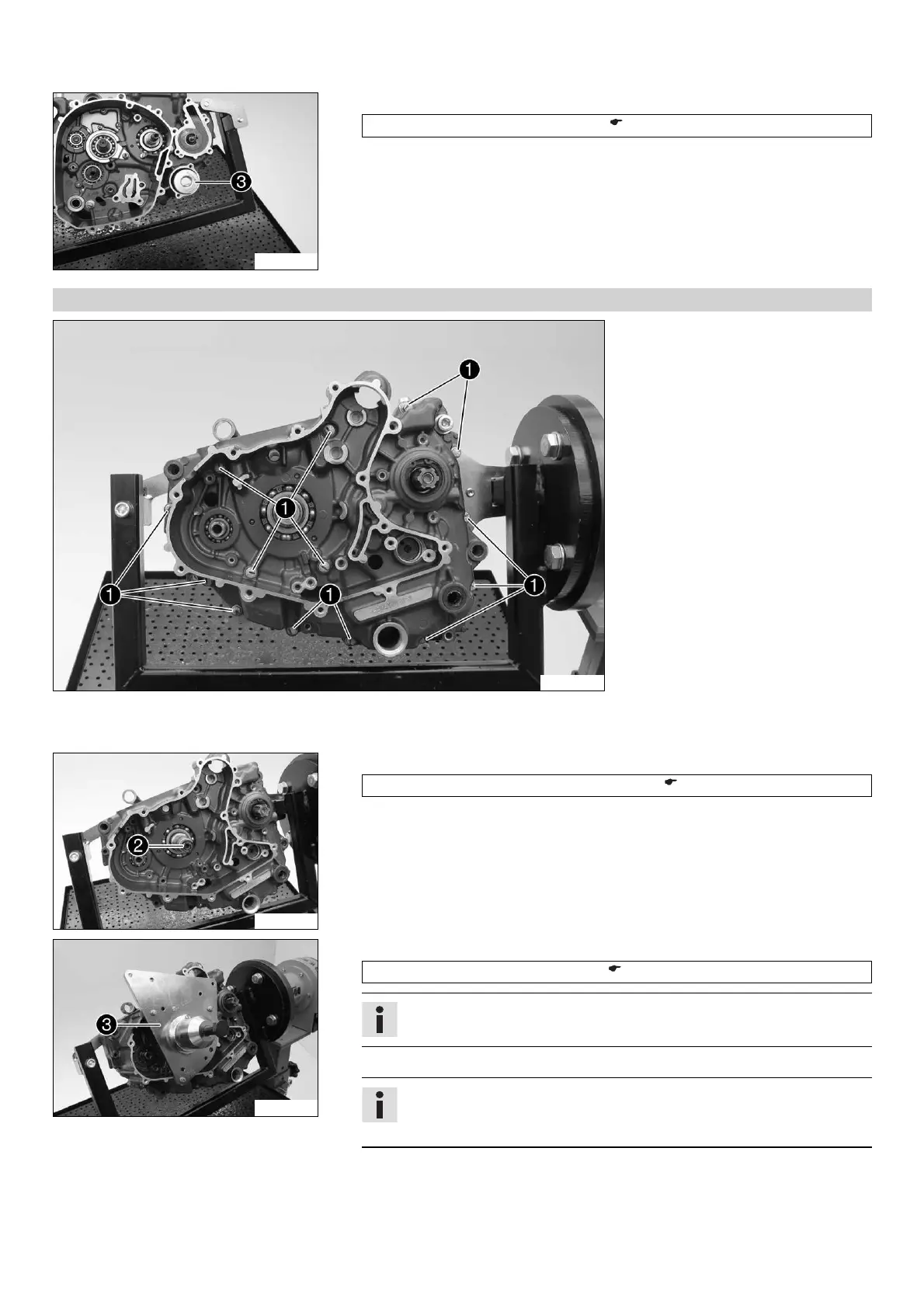

– Pull oil filter 3 out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 252)
16.3.60 Removing the left engine case (200 Duke)
305878-10
– Remove screws 1.
– Swing the left section of the engine case up and remove the fitting of the engine fixing arm.
305879-10
– Mount special tool 2.
Pressure screw for crankshaft (90129020000) ( p. 257)
305880-10
– Mount special tool 3 with suitable screws.
Case separating tool (90129048000) ( p. 258)
Info
Use the drill hole marked with 901.
– Pull off the section of the engine case by screwing in the screw.
Info
Do not wedge the engine case section.
The washer of the main shaft usually sticks to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
