KTM 200 DUKE EU Repair Manual

16 ENGINE 96

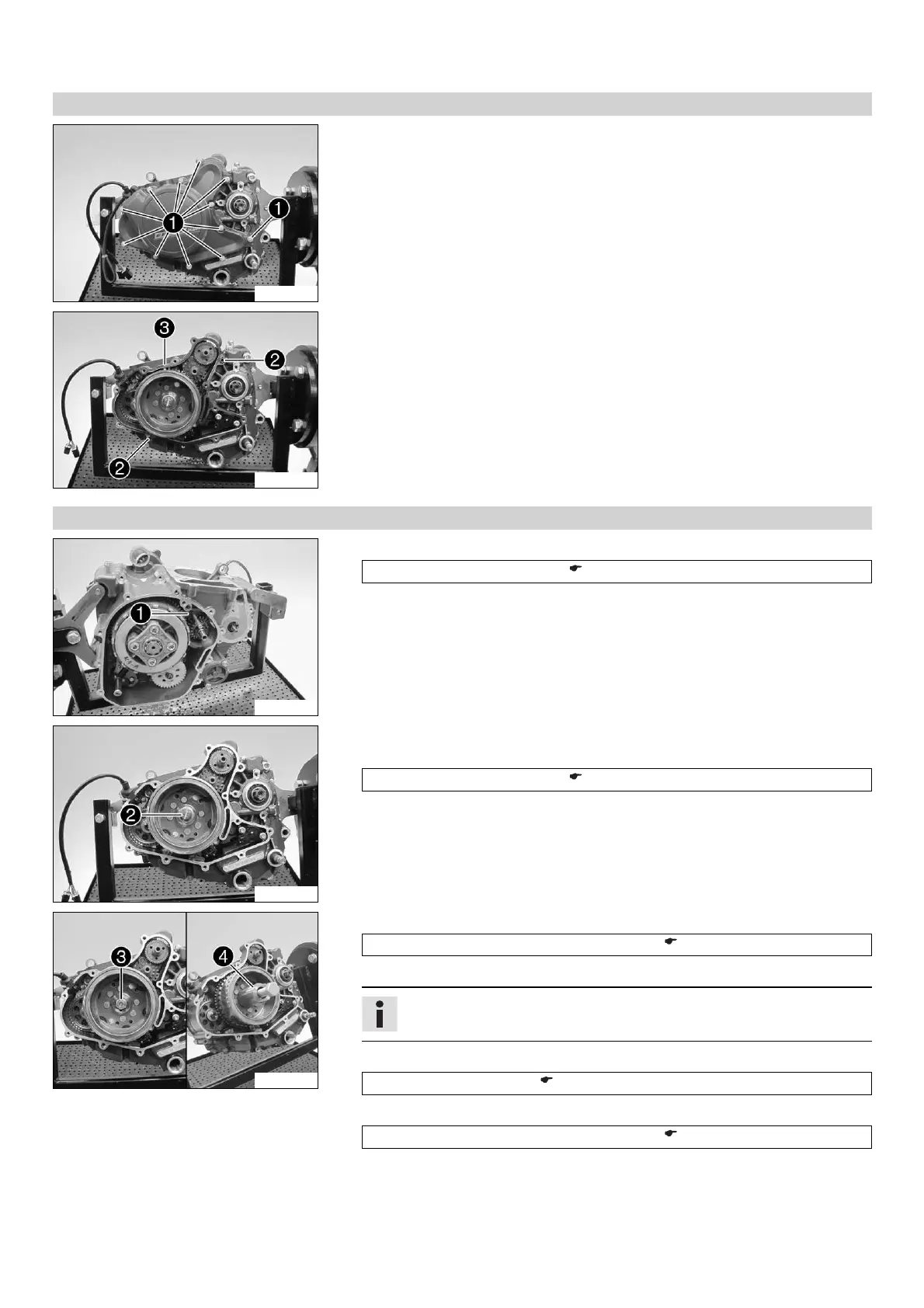

16.3.14 Removing the alternator cover (125 Duke)
304754-10
– Remove screws 1.
– Take off the alternator cover.
304755-10
– Remove dowels 2.
– Take off alternator cover gasket 3.
16.3.15 Removing the rotor (125 Duke)
304756-10
– Lock the clutch basket and primary gear using special tool 1.
Gear segment (90129081100) ( p. 259)
304757-10
– Remove screw 2 with the washer.
– Remove the special tool.
Gear segment (90129081100) ( p. 259)
304758-10
– Mount special tool 3.
Pressure screw for crankshaft (90129020000) ( p. 257)
– Mount special tool 4 on the rotor.
Info
Left-handed thread!
– Hold it tight using the special tool and pull off the rotor by turning the screw in.
Extractor (90129009000) ( p. 256)
– Remove the special tool.
Pressure screw for crankshaft (90129020000) ( p. 257)
– Remove the spring washer.
