9 EXHAUST 33

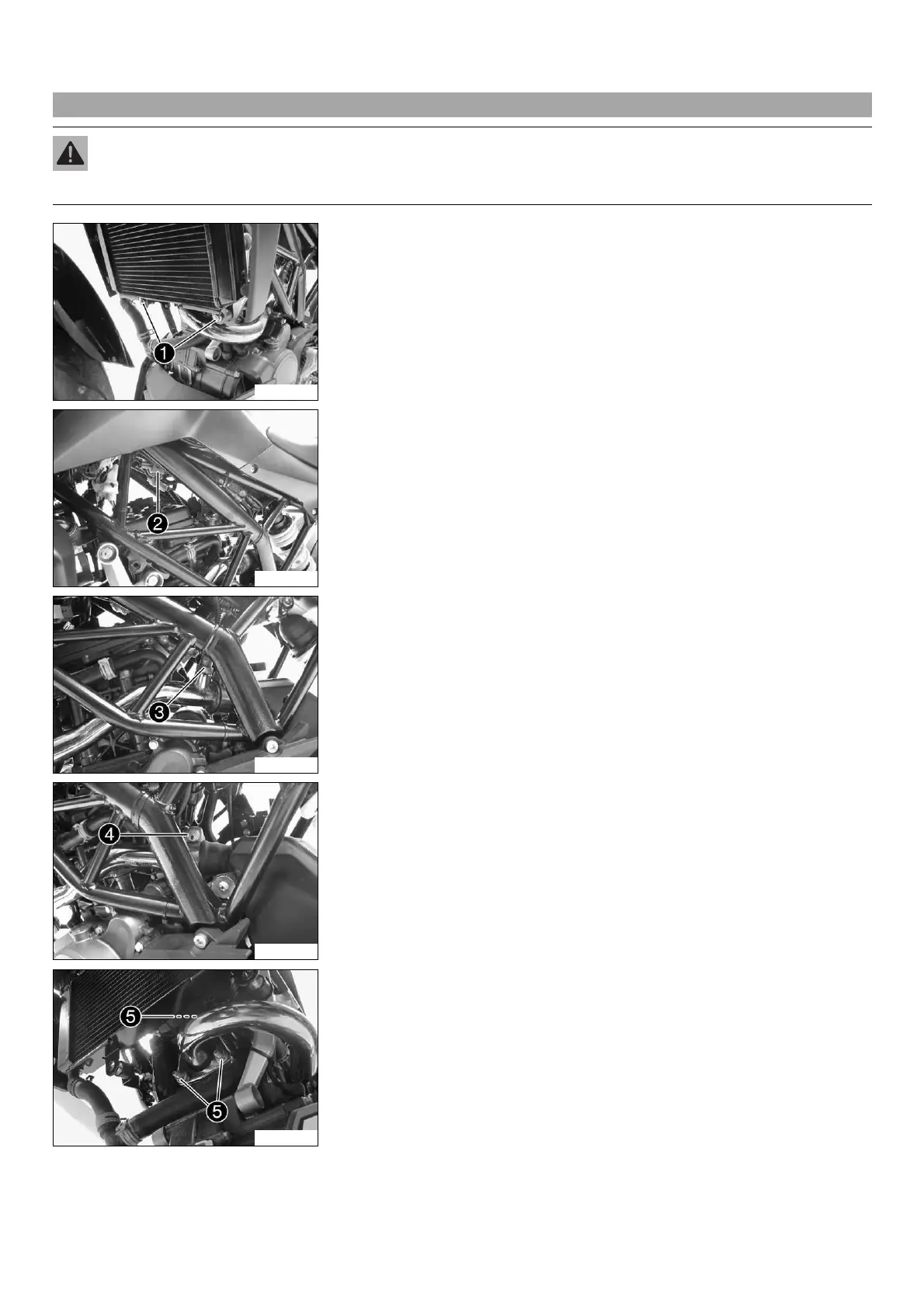

9.1 Removing the exhaust manifold

Warning

Danger of burns The exhaust system gets very hot when the vehicle is driven.

– Allow the exhaust system to cool down. Do not touch hot components.

304843-10

– Remove the nuts 1.

– Swing the radiator forward slightly.

304844-10

– Remove the cable binder, expose the connector 2 of the lambda probe, and

detach.

304845-10

– Remove lambda sensor 3.

304846-10

– Loosen exhaust clamp 4.

304847-10

– Remove the nuts 5.
