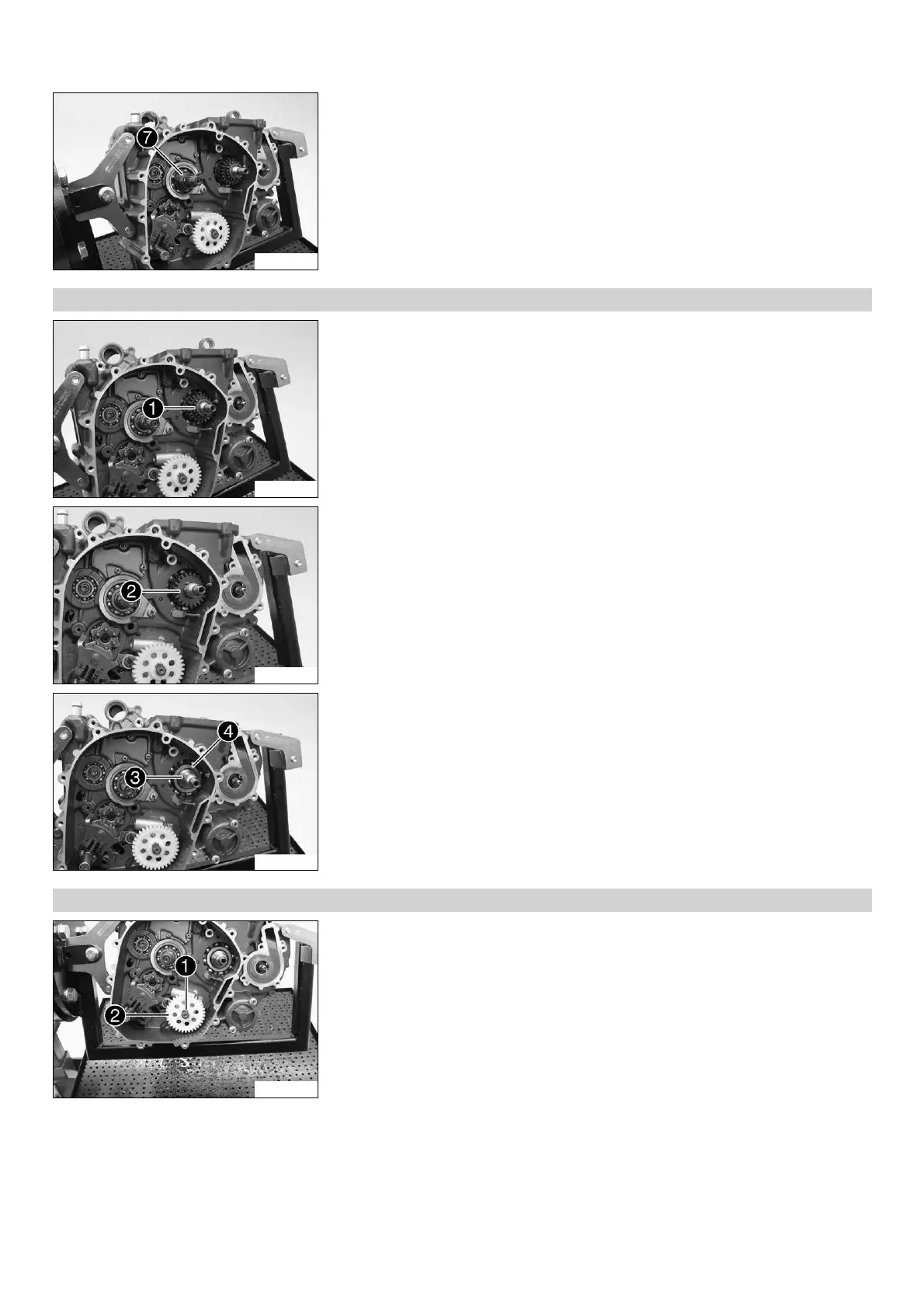

16 ENGINE 114

305862-10

– Remove collar sleeve 7.

16.3.54 Removing the primary gear (200 Duke)

305865-10

– Remove timing chain sprocket 1.

305866-10

– Take off primary gear 2.

305867-10

– Remove spring washer 3.

– Take off spacer ring 4.

16.3.55 Removing the oil pump (200 Duke)

305868-10

– Remove lock ring 1.

– Take off oil pump gear 2.
